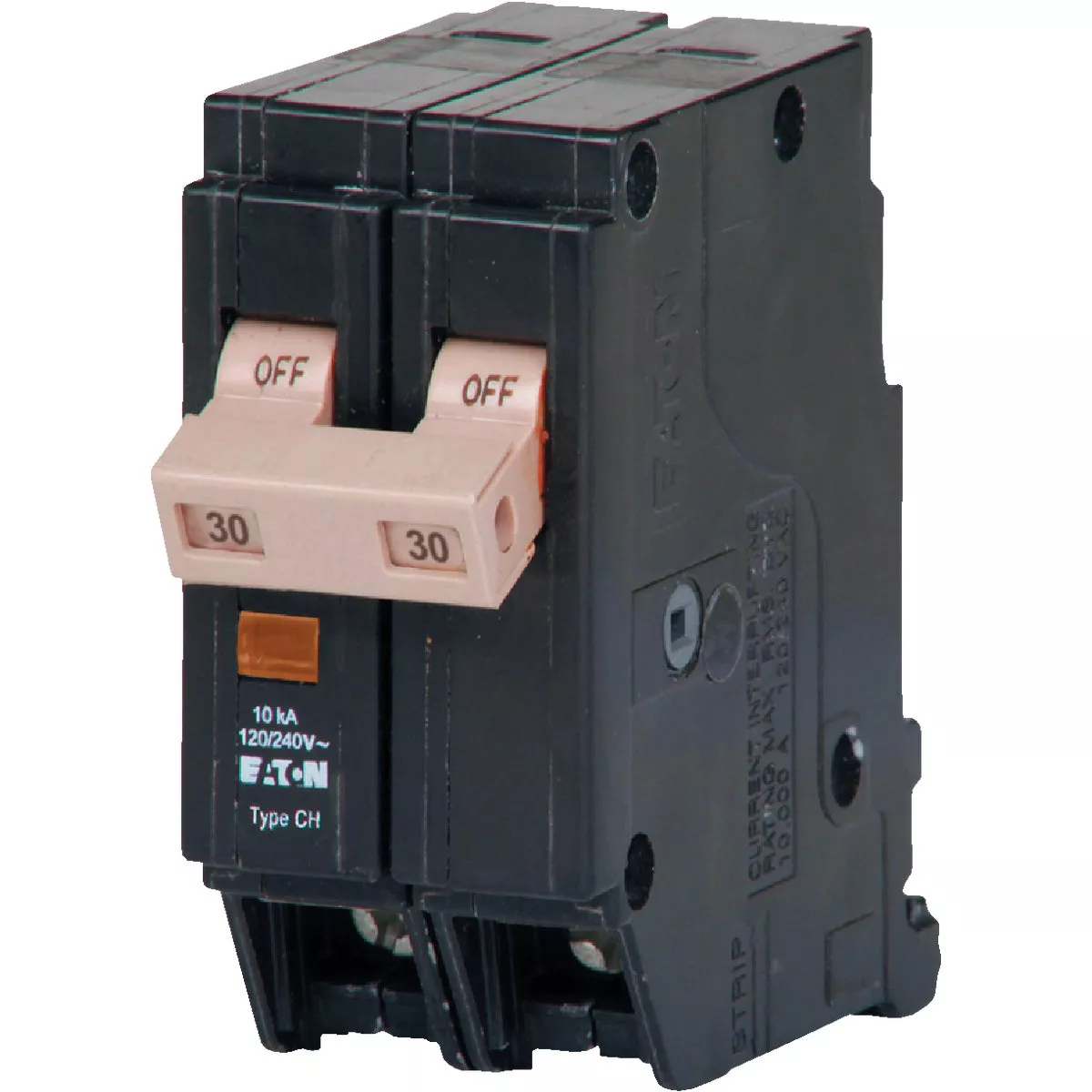

Eaton CHF 30A Double-Pole Standard Trip Circuit Breaker
Model #CHF230Item #539929UPC 00786685361901
Tap to view
Product overview
Circuit breaker for use in CH load centers. Designed to protect house wire from overheating or causing a short-circuit. Features a trip flag indicator. 120 volt/240 volt, 10,000 AIC (amps interrupting capacity). UL (Underwriter's Laboratories) listed.
- Designed to protect house wire from overheating or causing a short-circuit
- Compatible with CH load centers
- Trip flag indicator
- UL Listed
- 30, 2
Specifications
| Amperage | 30 |
| Voltage | 120/240 |
| Number Of Poles | 2 |
| Mount Type | Plug-In |
| Wire Size | (1) #14-8 Cu/Al, (2) #14-10 Cu/Al |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 1.5 |
| Brand | Eaton |
| UPC | 00786685361901 |
| Product type | Circuit Breaker |
