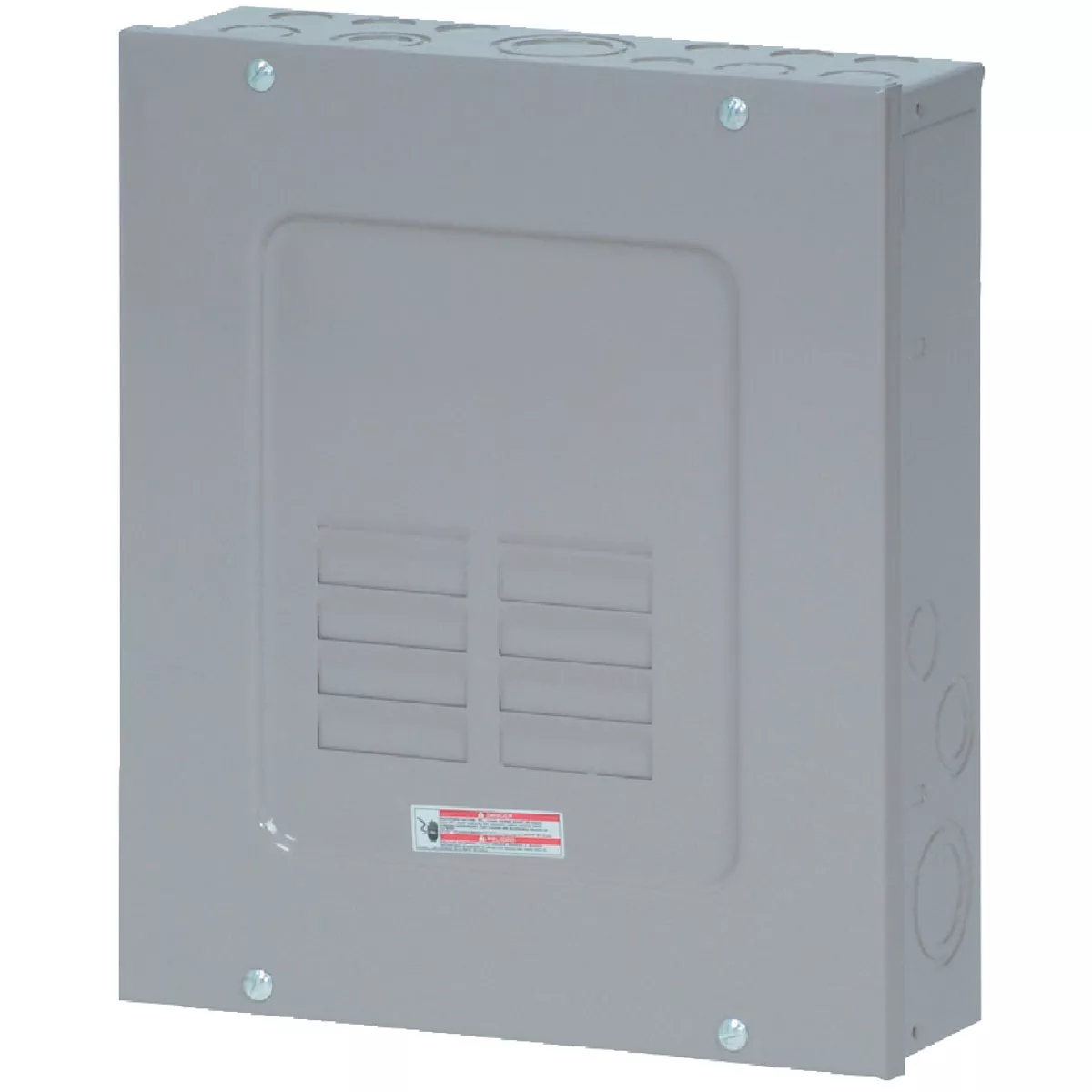

Eaton CH 125A 8-Space 8-Pole Indoor Main Lug Load Center
Model #CH8L125SPItem #540188UPC 00782114190531
Tap to view
Product overview
Single-phase, 3-wire main lug load center. Flush, surface, or combination mount. Cover included. Straight-in wiring, top or bottom. Pre-attached neutral bonding strap. Solid copper bus and branch fingers. 120/240V AC; 10,000 AIC. UL (Underwriter's Laboratories) listed.
- Single-phase, 3-wire
- Flush, surface, or combination mount
- Cover included
- Straight-in wiring, top or bottom
- Pre-attached neutral bonding strap, solid copper bus and branch fingers
- UL listed
Specifications
| Amperage | 125 |
| Voltage | 120/240 |
| Series | CH |
| Number Of Spaces | 8 |
| Max Number of Poles | 8 |
| Enclosure Type | Indoor |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | #6 To 1/0 |
| Certification | UL Listed |
| Width (In.) | 11 |
| Height (In.) | 13 |
| Depth (In.) | 3.69 |
| Brand | Eaton |
| UPC | 00782114190531 |
| Product type | Main Lug Load Center |
