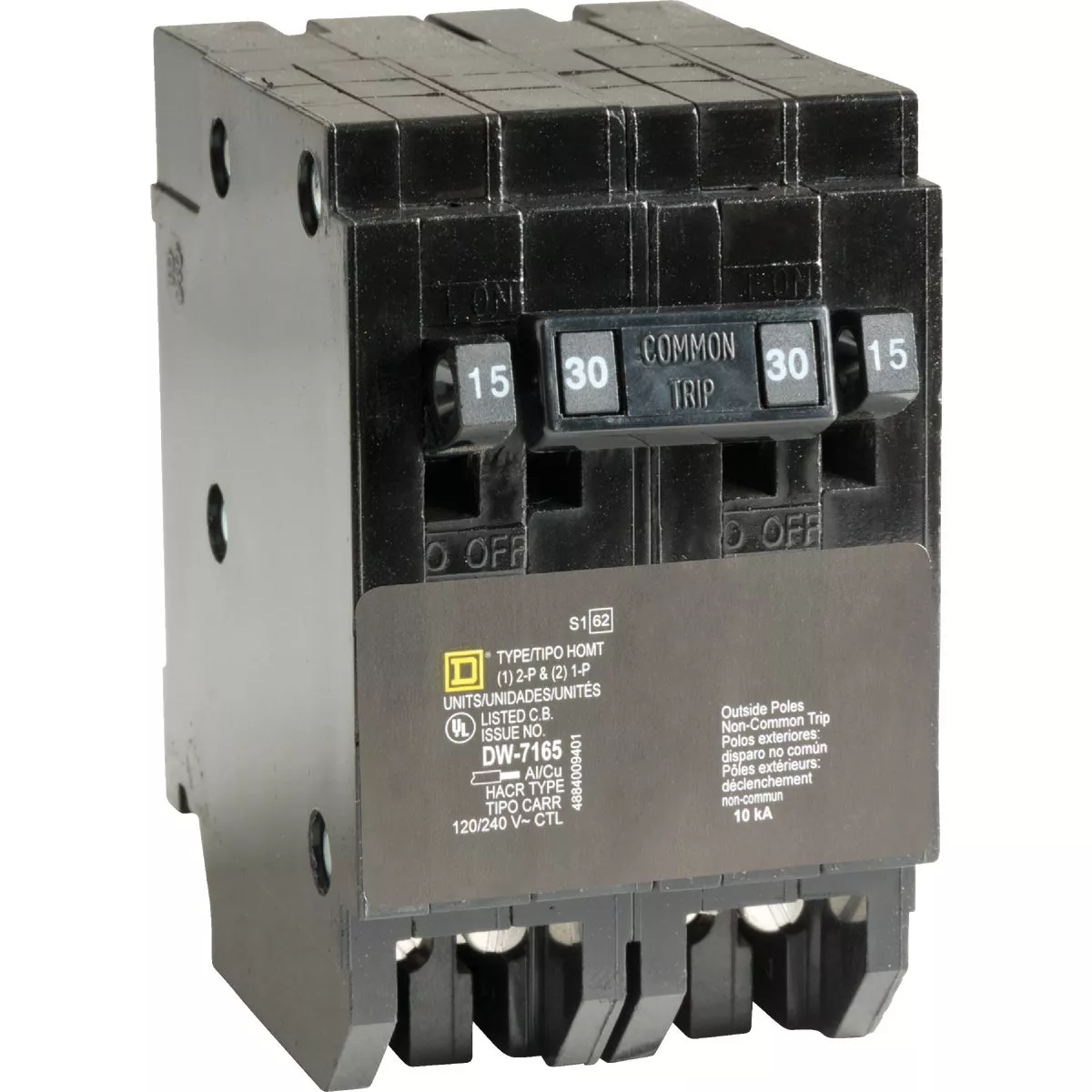

Square D Homeline 15A/15A/30A Double-Pole Standard Trip Quad Tandem Circuit Breaker
Model #HOMT1515230CP UPC 00047569072215
Item #555983
Tap to view
Product overview
Homeline quad circuit breaker. 2 single-pole outer breakers and 1 double-pole inner breaker requiring 2 spaces. Used for overload and short-circuit protection of electrical systems. Compatible with Homeline load centers and CSED devices. Rated for 120 volt/240 volt and 10,000 AIR. Designed exclusively for the residential market. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed.
- Used for overload and short-circuit protection of electrical systems
- Compatible with Homeline load centers and CSED devices
- 2 single-pole outer breakers and 1 double-pole inner breaker requiring 2 spaces
- ANSI/UL Listed
Specifications
| Amperage | 15/15/30 |
| Voltage | 120/240 |
| Number Of Poles | 2 |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | ANSI/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00047569072215 |
| Product type | Circuit Breaker |
