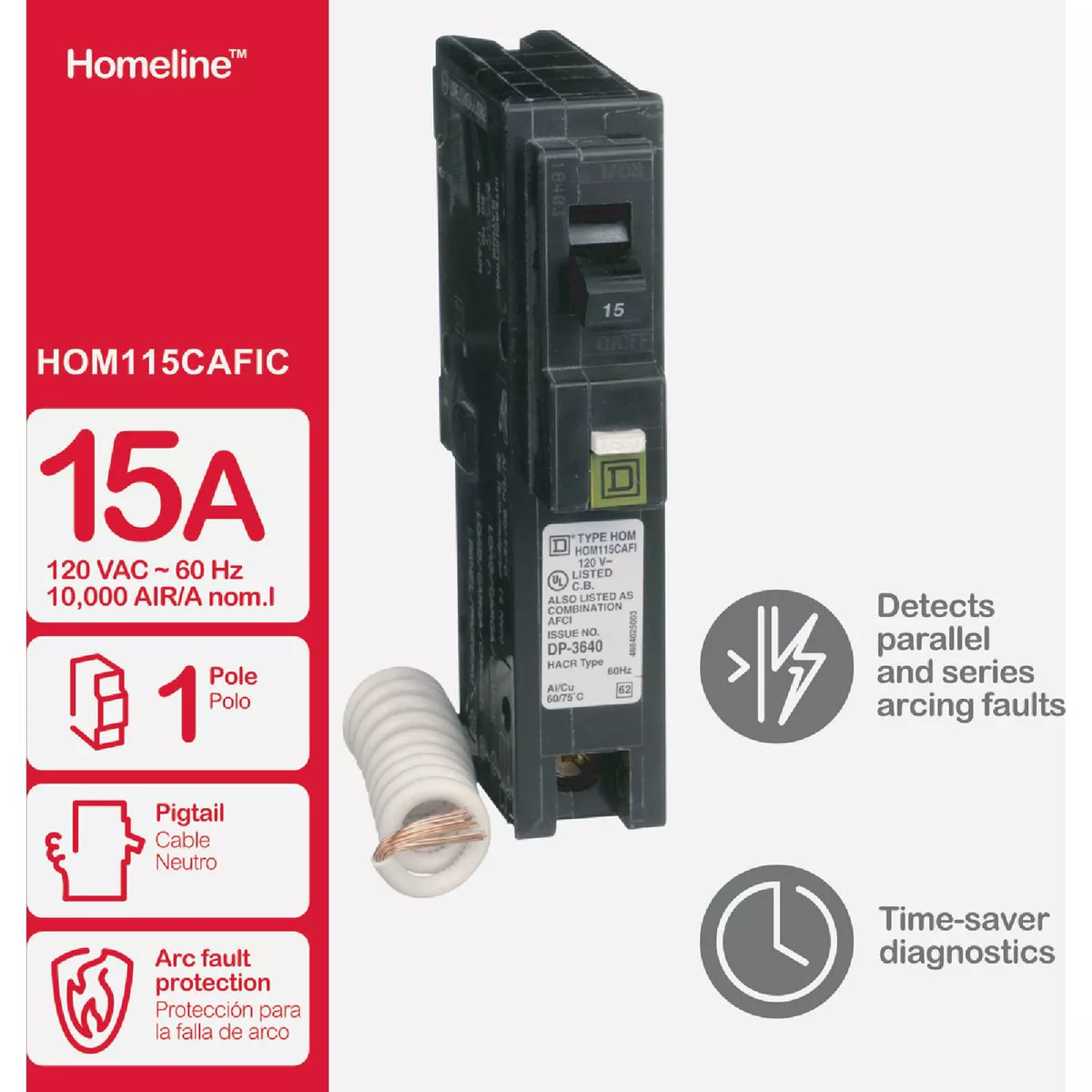

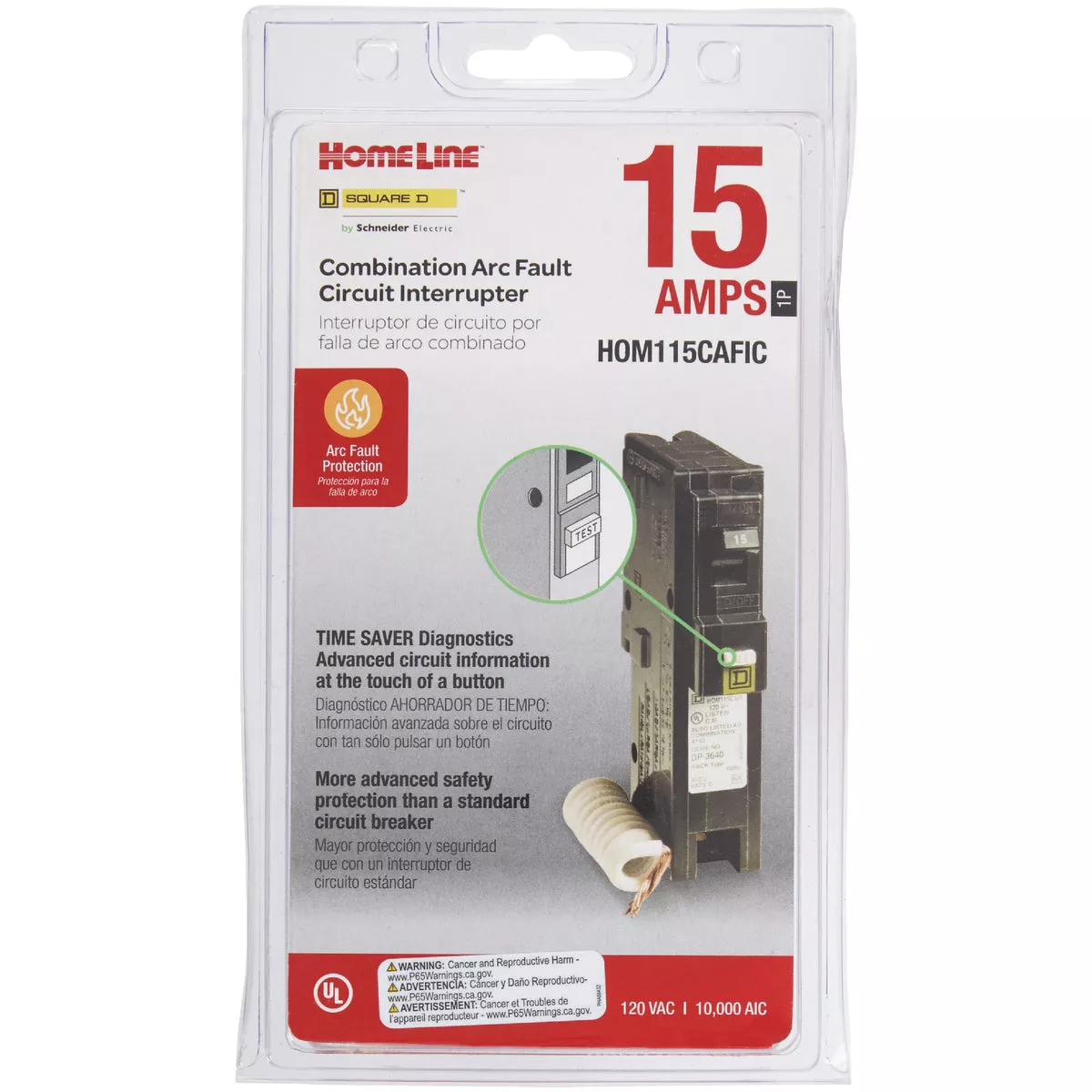

Square D Homeline 15A Single-Pole CAFCI Combination Arc Fault Breaker
Model #HOM115CAFICItem #558265UPC 00785901630982
Tap to view
Product overview
Homeline single pole CAFCI (combination arc-fault circuit interrupter) circuit breaker. Helps protect wires from arcing faults and is intended for overload and short-circuit protection of electrical systems. Time-Saver Diagnostics provides advanced trip indication technology, helping identify the type of fault that has occurred faster. Equipped with the exclusive Visi-Trip indicator. When tripped, the handle snaps to a midpoint position and a highly visible, red indicator easily identifies the tripped breaker. 1 space required. 120 volt. Limited lifetime warranty. UL (Underwriter's Laboratories) listed.
- Protects wires from arcing faults and is intended for overload and short-circuit protection of electrical systems
- Time-Saver Diagnostics provides advanced trip indication technology, helping identify the type of fault that has occurred faster
- Equipped with the exclusive Visi-Trip indicator
- UL Listed
Specifications
| Amperage | 15 |
| Voltage | 120 |
| Number Of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | UL Listed |
| Interruption Type | CAFCI |
| Frame Size | 1-Space |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00785901630982 |
| Product type | Arc Fault Breaker |
