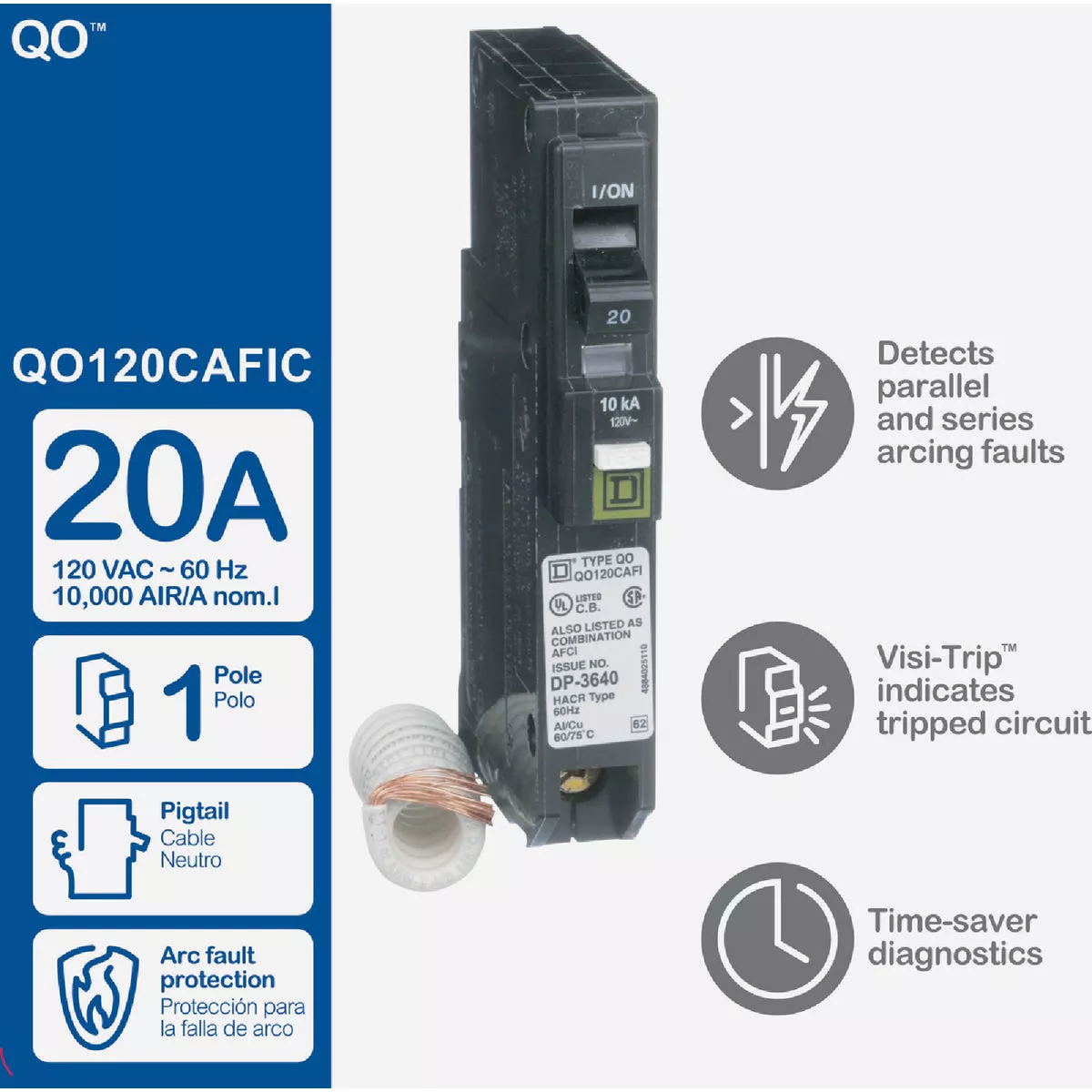

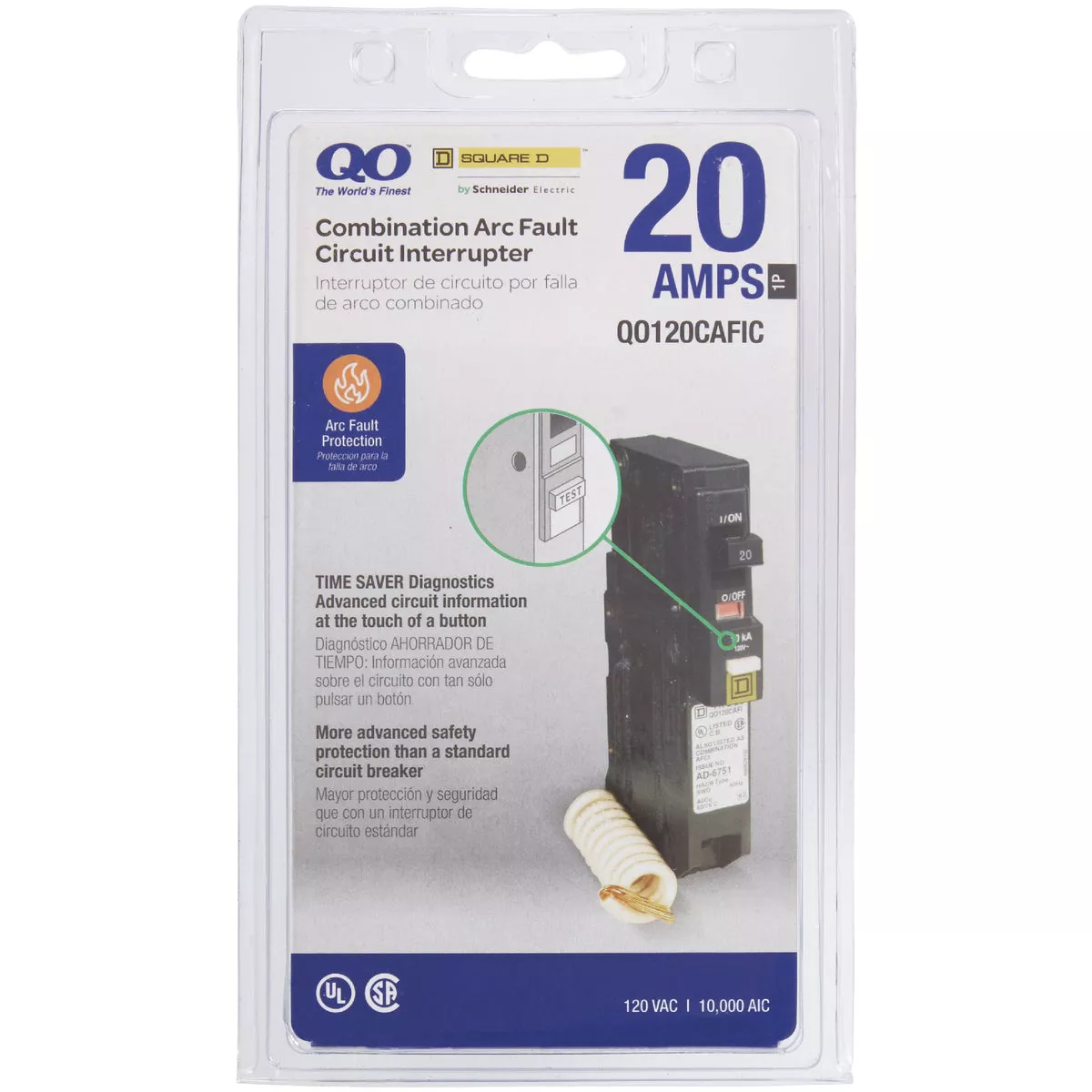

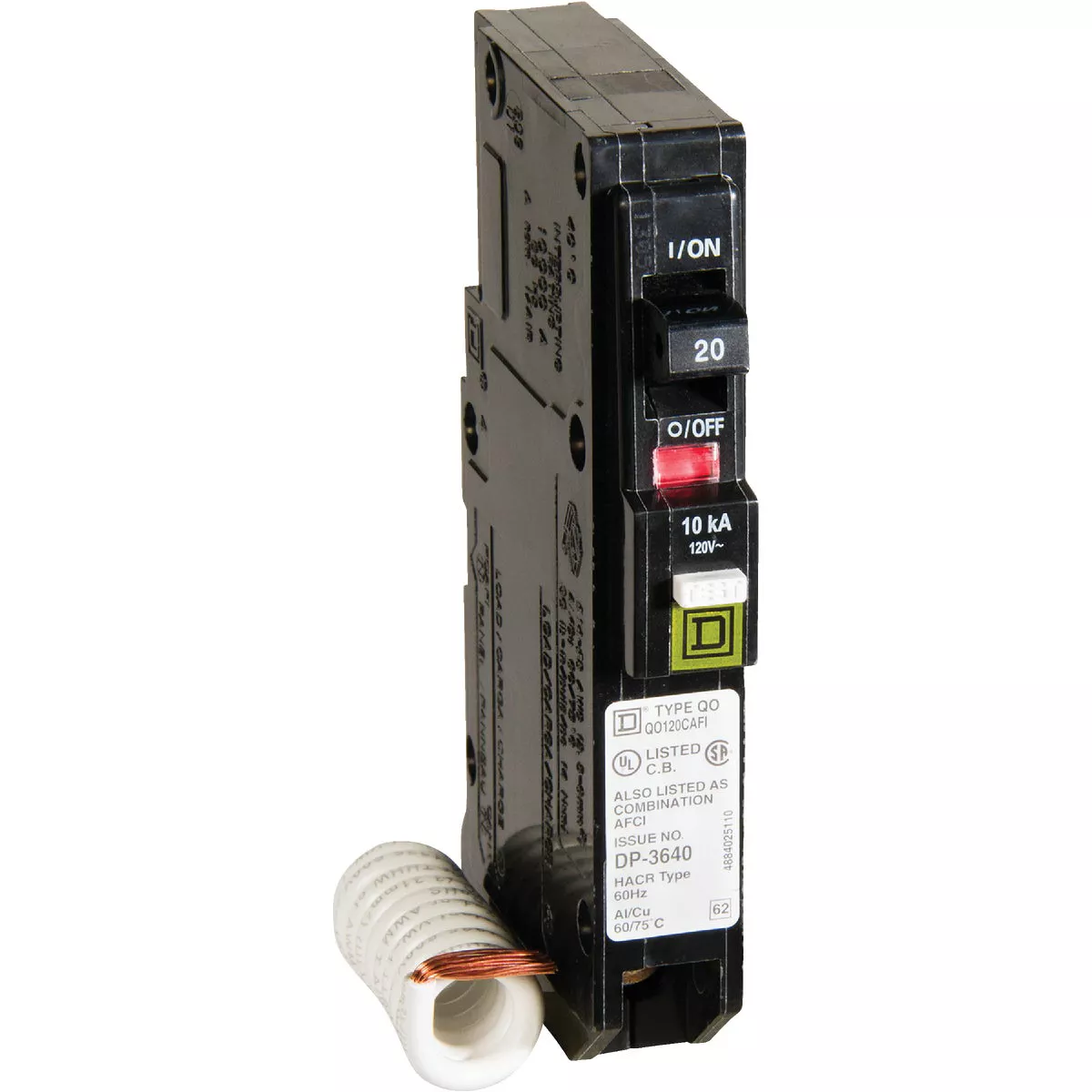

Square D QO 20A Single-Pole CAFCI Combination Arc Fault Breaker
Model #QO120CAFICItem #558303UPC 00785901698180
Tap to view
Product overview
QO single pole CAFCI (combination arc-fault circuit interrupter) circuit breaker. Helps protect wires from arcing faults and is intended for overload and short-circuit protection of electrical systems. Time-Saver Diagnostics provides advanced trip indication technology, helping identify the type of fault that has occurred faster. Equipped with the exclusive Visi-Trip indicator. When tripped, the handle snaps to a midpoint position and a highly visible, red indicator easily identifies the tripped breaker. Compatible with QO load centers. 1 space required. Limited lifetime warranty. 120 volt. UL (Underwriter's Laboratories) listed.
- Protects wires from arcing faults and is intended for overload and short-circuit protection of electrical systems
- Time-Saver Diagnostics provides advanced trip indication technology, helping identify the type of fault that has occurred faster
- Equipped with the exclusive Visi-Trip indicator
- Limited lifetime warranty
- UL Listed
Specifications
| Amperage | 20 |
| Voltage | 120 |
| Number Of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | UL Listed |
| Interruption Type | CAFCI |
| Frame Size | 1-Space |
| Breaker Size | 1 In. |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00785901698180 |
| Product type | Arc Fault Breaker |
