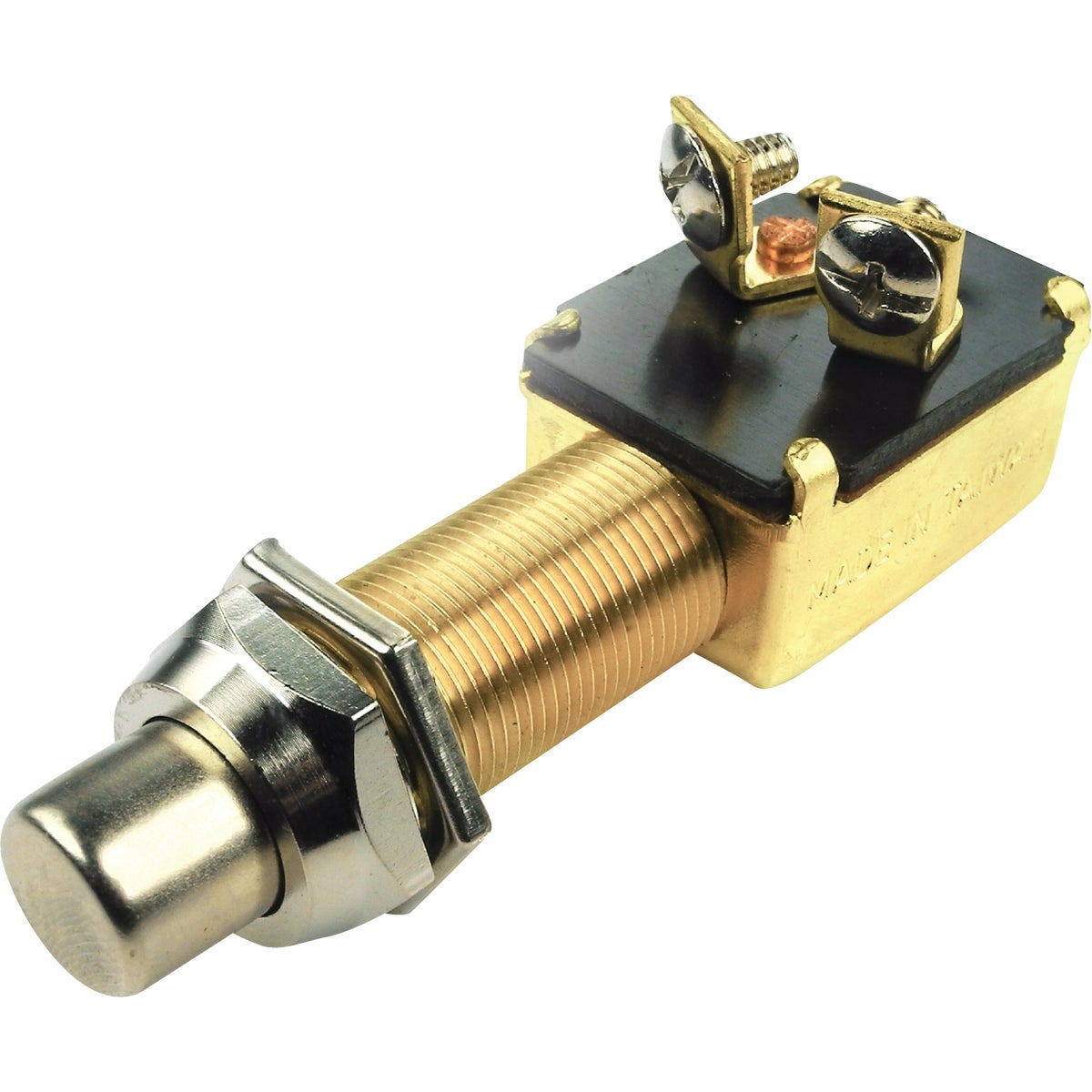

Seachoice 6V & 12V Push Button Switch
Model #50-11781 UPC 00719249117812
Item #578609
Tap to view
Product overview
Heavy-duty 2-position Off, momentary on push button starter and horn switch. Normally off. Fits panels through 1 In. (2.54 cm) insulated. 25A/6V DDC 15A/12V DS. Supplied with chrome-plated brass face nut, brass washer and back-up nut. Stainless steel springs. Mounting stem 1-1/4 In. L. (3.18 cm), 5/8 In., 32 thread diameter. Overall: 2-7/8 In. (7.3 cm).
- 2 Position: Off - Mom On
- Mounting Stem: 1-1/4in (L) x 5/8in (D)
- Rating: 25A 6V / 15A 12V DC
- Max Panel thickness: 1in
Specifications
| Type | Push Button |
| Voltage | 6 to 12 |
| Amperage | 15 to 25 |
| Dimensions | 2-7/8 In. |
| Switch Type | Push Button |
| Length (In.) | 2.875 |
| Brand | Seachoice |
| UPC | 00719249117812 |
| Product type | Switch |
