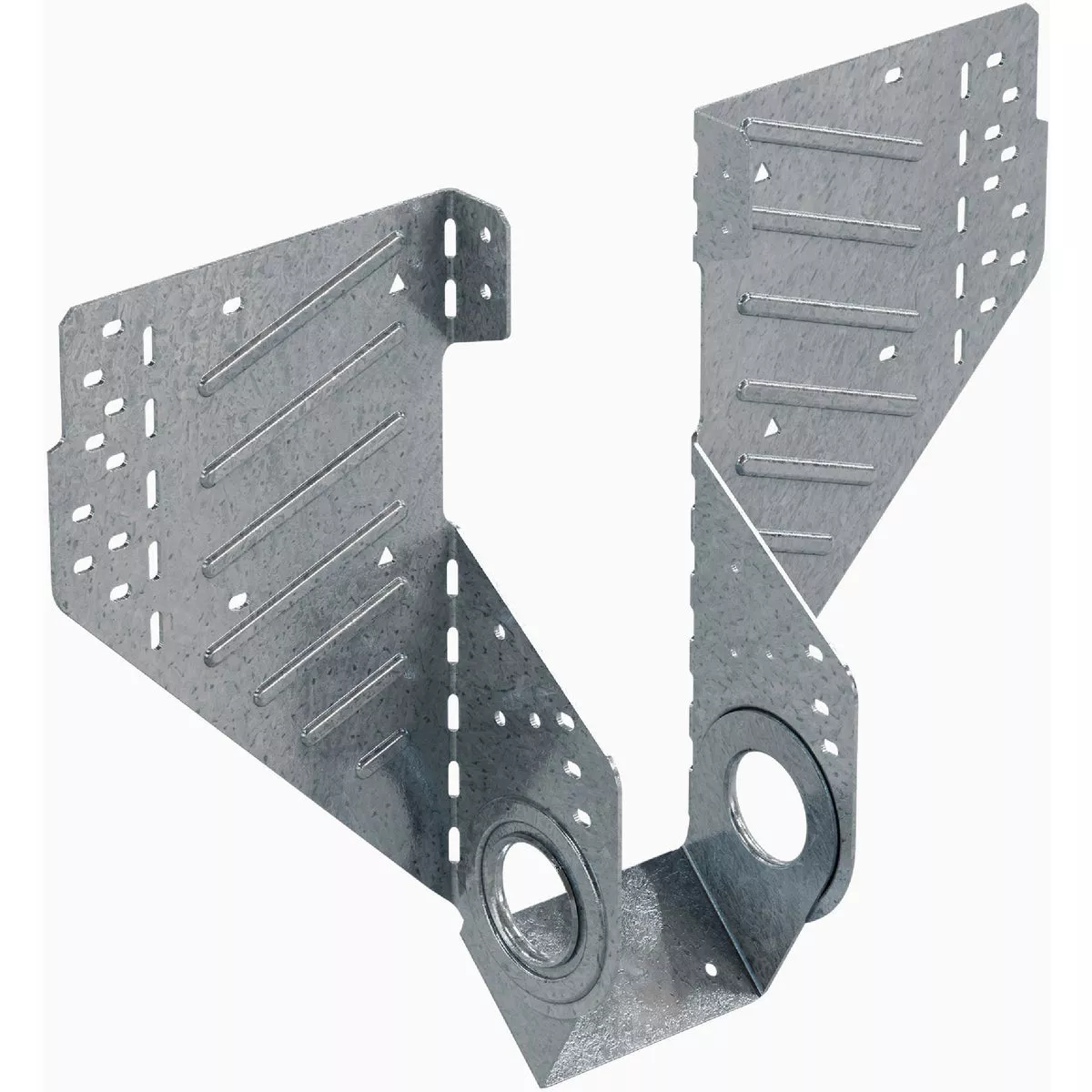

Simpson Strong-Tie LSSR210-2Z Light Field-Adjustable Rafter Hanger for Double 2x-
Model #LSSR210-2ZItem #NAQY8EUPC 00707392003922
Tap to view
Product overview
The patent-pending LSSR light slopeable/skewable rafter hanger is the next generation of a field-adjustable rafter hangers. One of its key features is that it can be installed after the rafter has been tacked into place. A versatile hanger, it is field adjustable for skews up to 45 and features an innovative hinged swivel seat which adjusts up to a 45 degree slope.
- Makes it possible to install after the rafters are already in place
- Flange design allows for easy skew adjustment, from 0 to 45
- Swivel seat adjusts easily and supports joist
- Actual joist width: 3 in.
- Minimum joist height: 9-1/2 in.
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
| Material | Steel |
| Gauge | 16 |
| Width (In.) | 2.9934 |
| Height (In.) | 9.309 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392003922 |
| Product type | Joist Hanger |
