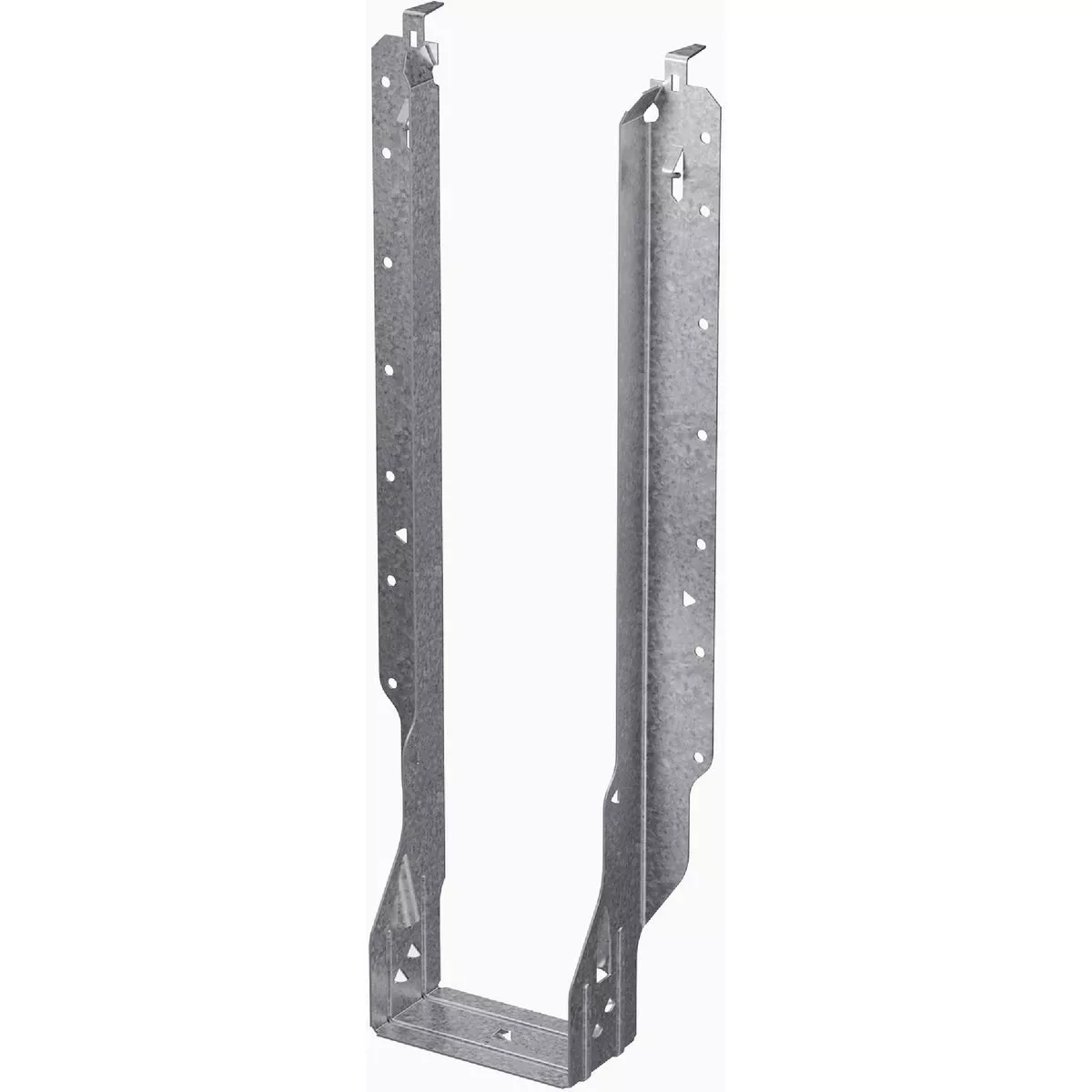

Simpson Strong-Tie IUS3.56/16 Galvanized Face-Mount Joist Hanger for 3-1/2 In. x 16 In. Engineered Wood
Model #IUS3.56/16Item #Q9V7NCUPC 00707392108405
Tap to view
Product overview
The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Grip seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.
- Installation is fast with the Strong-Grip seat, easy-to-reach face nails and self-jigging locator tabs
- Fasten hanger to header. Position I-joist into hanger and snap into place.
- Seat width: 3-5/8 in.
- Height: 16
- Actual Joist Size: 3-1/2 in. x 16 in.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
| Material | Steel |
| Gauge | 18 |
| Width (In.) | 2.875 |
| Height (In.) | 16.03125 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392108405 |
| Product type | Joist Hanger |
