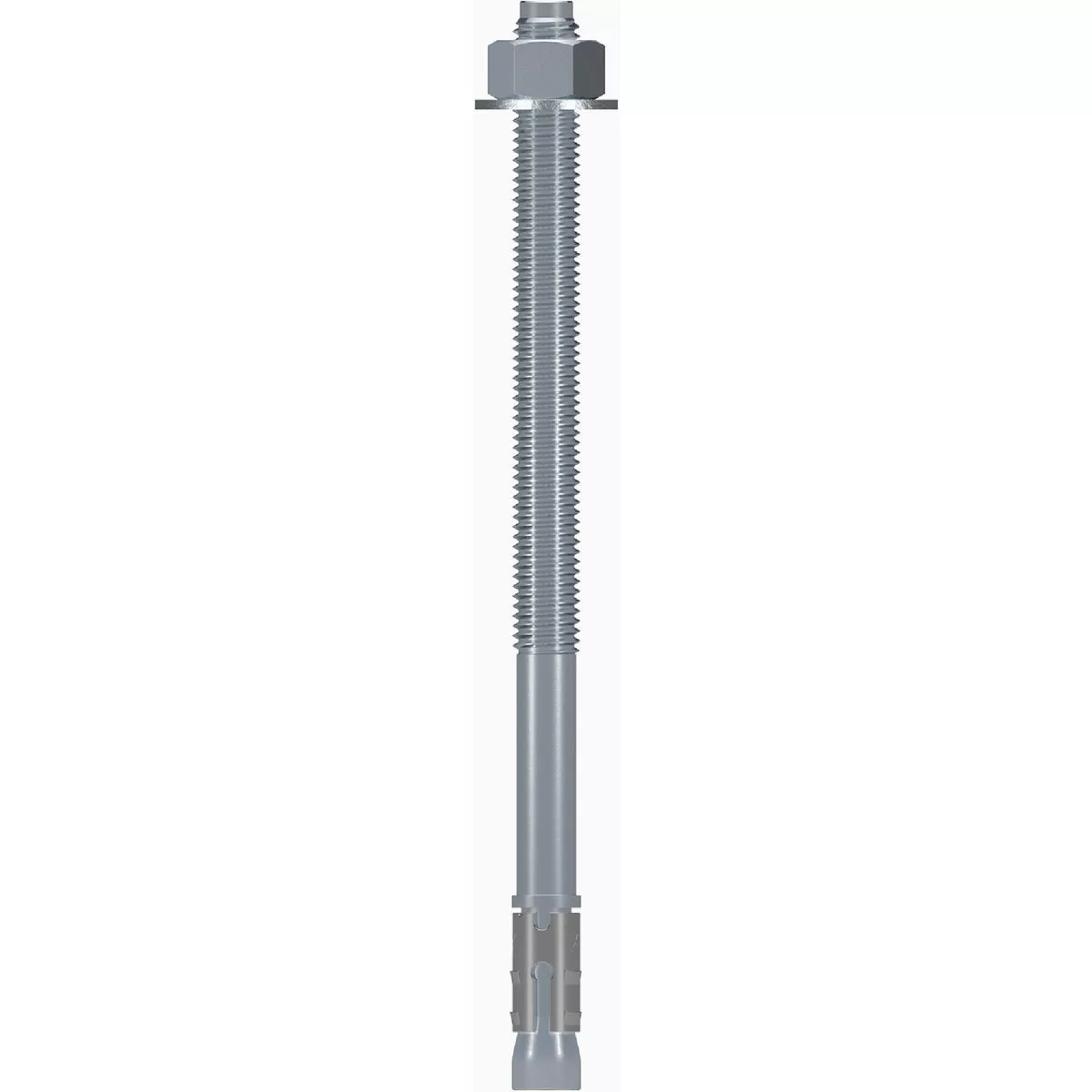

Simpson Strong-Tie Strong-Bolt 2-5/8 In. x 10 In. Wedge Anchor (10 Ct.)
Model #STB2-62100 UPC 00707392583523
Item #QA1HCP
Tap to view
Product overview
Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
- Chamfered top designed to prevent mushrooming during installation
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Made from carbon steel
Specifications
| Length | 10 In. |
| Material | Carbon Steel |
| Diameter | 2-5/8 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392583523 |
| Product type | Concrete & Masonry Anchors |
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
WARNING:WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
