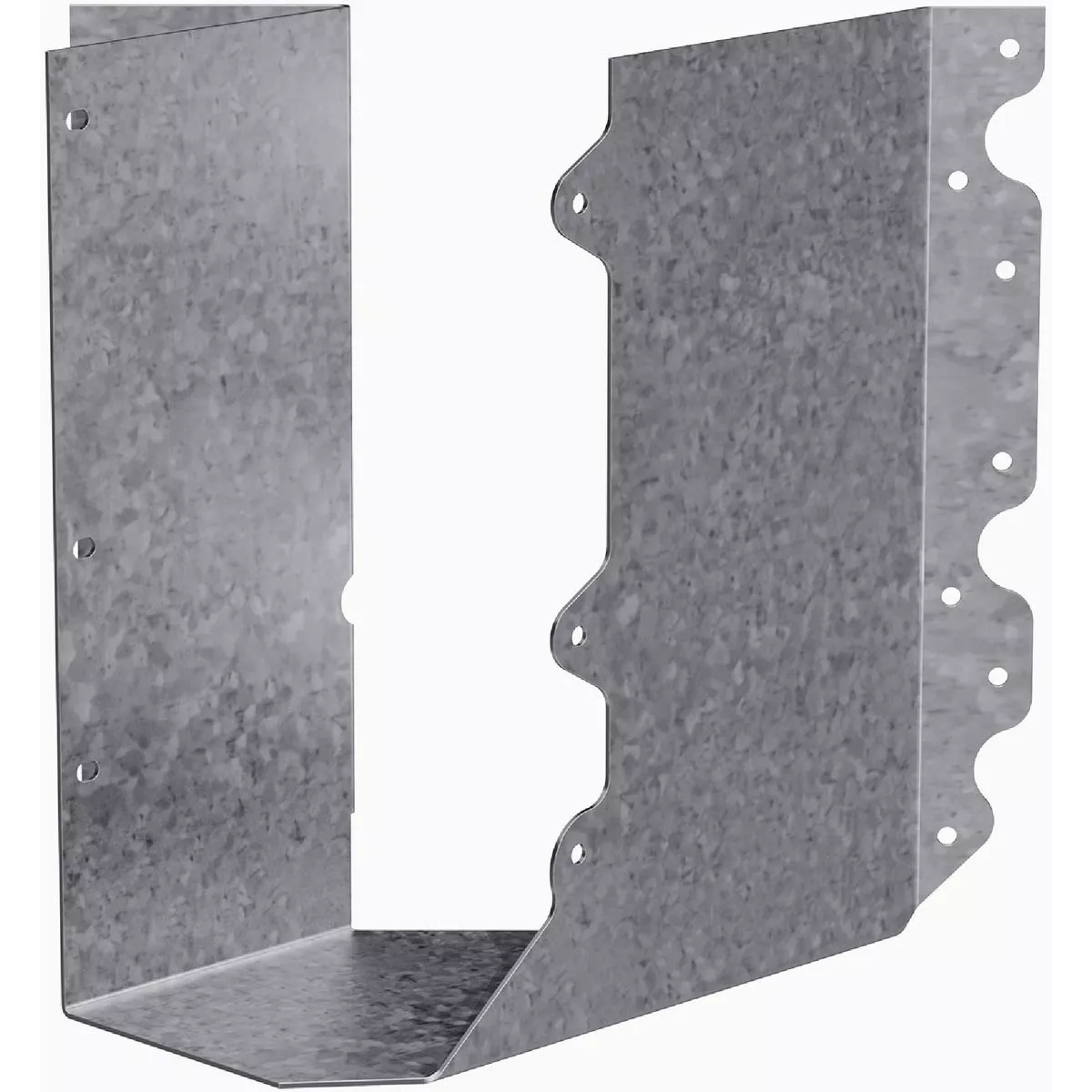

Simpson Strong-Tie SUL410 Galvanized Joist Hanger for 4x10
Model #SUL410 UPC 00044315812804
Item #TW2FAZ
Tap to view
Product overview
The SUL is a 45 degree-skewed hanger designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUL hanger is skewed 45 degrees to the left.
- SUL skewed left
- These hangers will normally accommodate a 40 to 50 skew
- The joist end may be square cut or bevel cut
- Angled nail slots direct nails for proper installation
- Nominal joist size: 4x10 or 4x12
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
| Material | Steel |
| Finish | Zinc Galvanized, G90 |
| Gauge | 16 |
| Install With | 16d common nails |
| Width (In.) | 3.932 |
| Height (In.) | 8.52575 |
| Base (In.) | 8.4375 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315812804 |
| Product type | Joist Hanger |
