Project Pro 7 In. Portable Tile Saw
Model #286265Item #286265UPC 00009326207650
Tap to view
Product overview

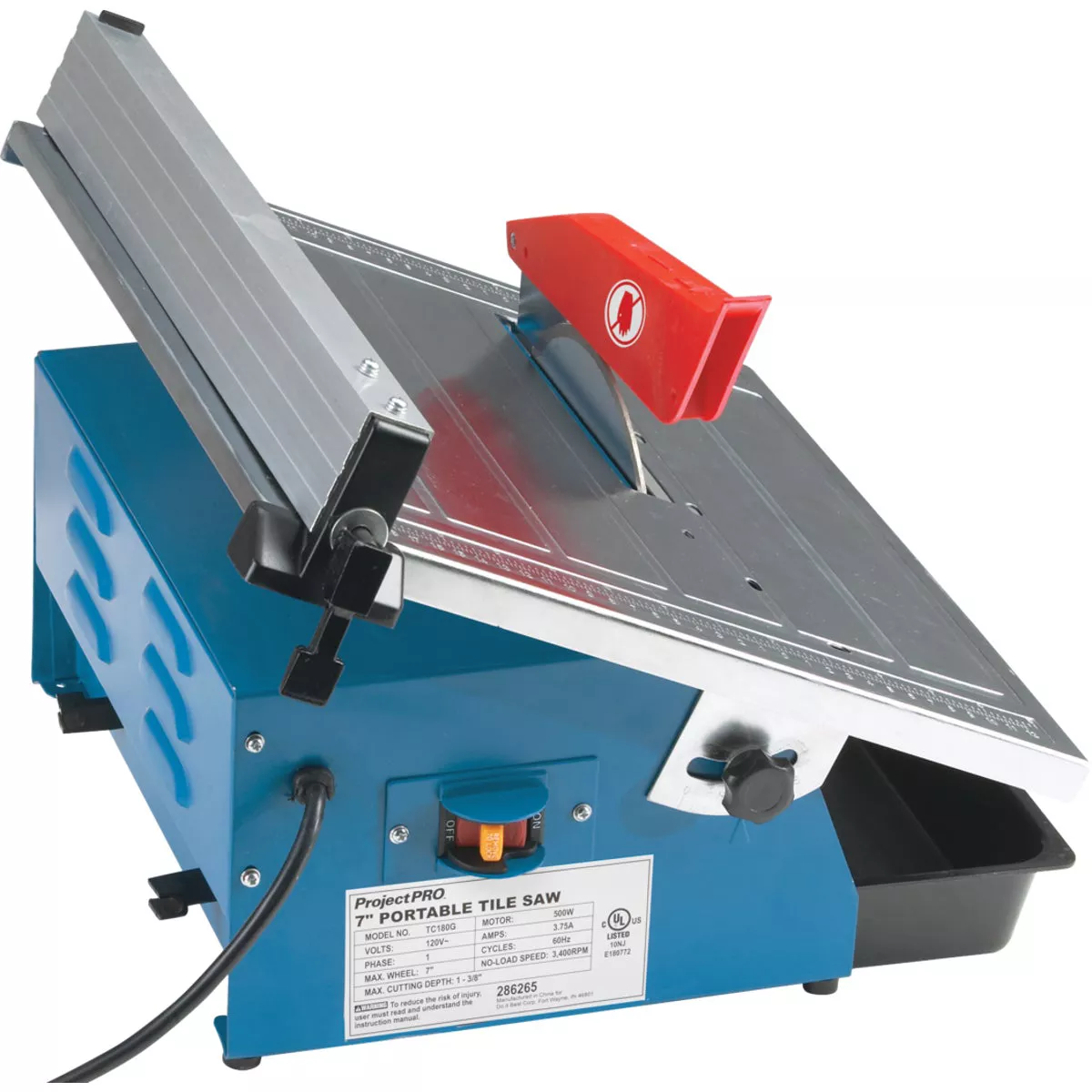

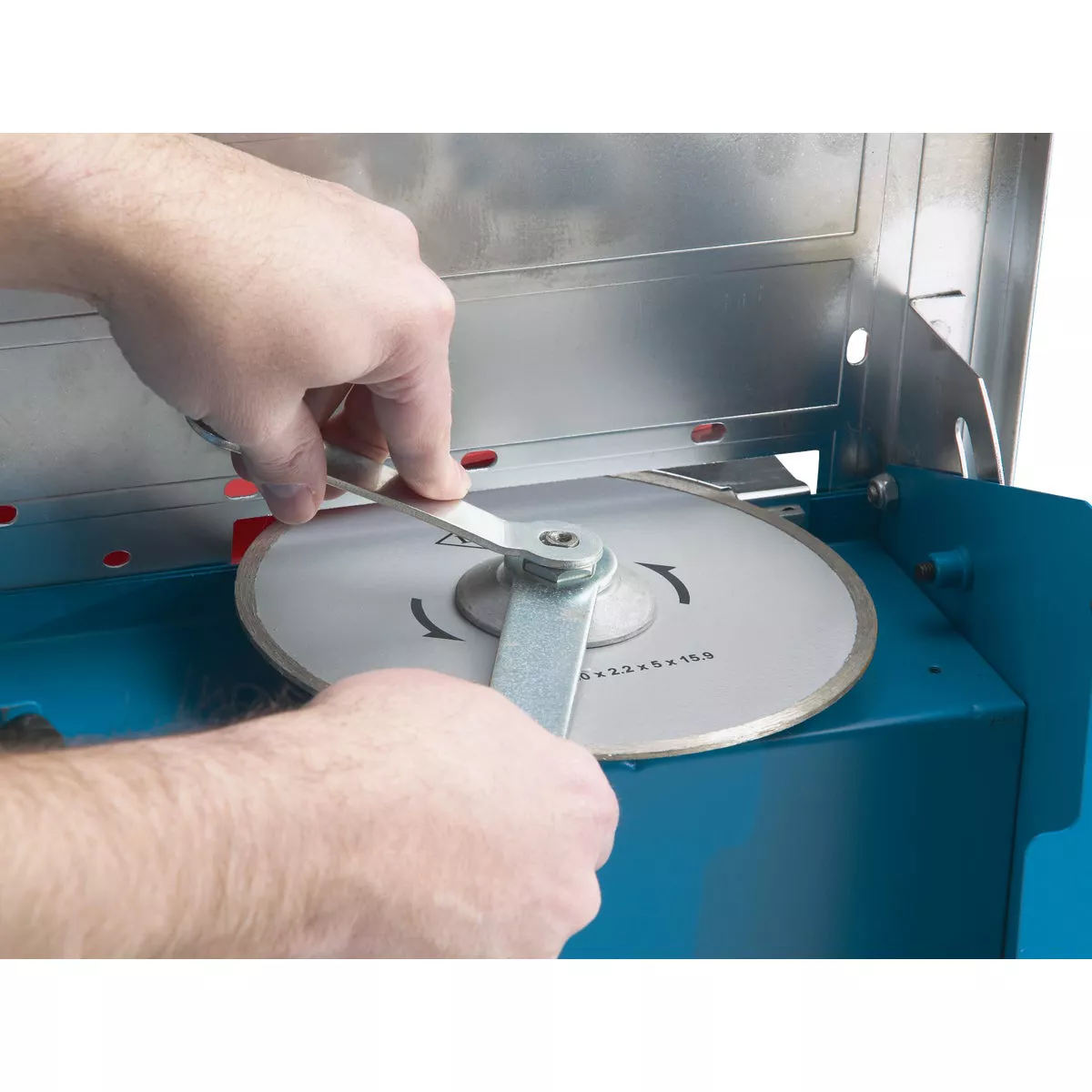

Ideal for linear and a wide variety of angled cuts. Adjustable cutting table raises with set positions enabling 15 deg., 30 deg., 45 deg., and 60 deg. precision cuts. Equipped with 7 In. continuous rim diamond blade. High output, direct drive, 1/3 HP motor, 120V/60Hz, 3.75 Amps, speed 3400 RPMs. Adjustable linear guide enables left and right hand usage. Water overflow from cuts is channeled from the cutting table top and returned to the water reservoir. Features automatic thermal overload system protection. Housing made of anti-fire plastic material. 34mm (90 degrees), 21mm(45 degrees).
- Unlimited rip cut
- Diagonal Cut :0 to 45 Deg.
Specifications
| Dimensions | 15-1/8 In. x 15-9/16 In. |
| Maximum Speed | 3400 rpm |
| Arbor Size | 5/8 In. |
| Blade Size | 7 In. |
| Motor Size | 120V, 60Hz, 3.75A, 500W |
| Depth of Cut | 15/16 In. |
| Maximum Cut Depth at 90 Degrees | 15/16 In. |
| Maximum Cut Depth | 15/16 In. |
| Brand | Project Pro |
| UPC | 00009326207650 |
| Product type | Tile Saw |
