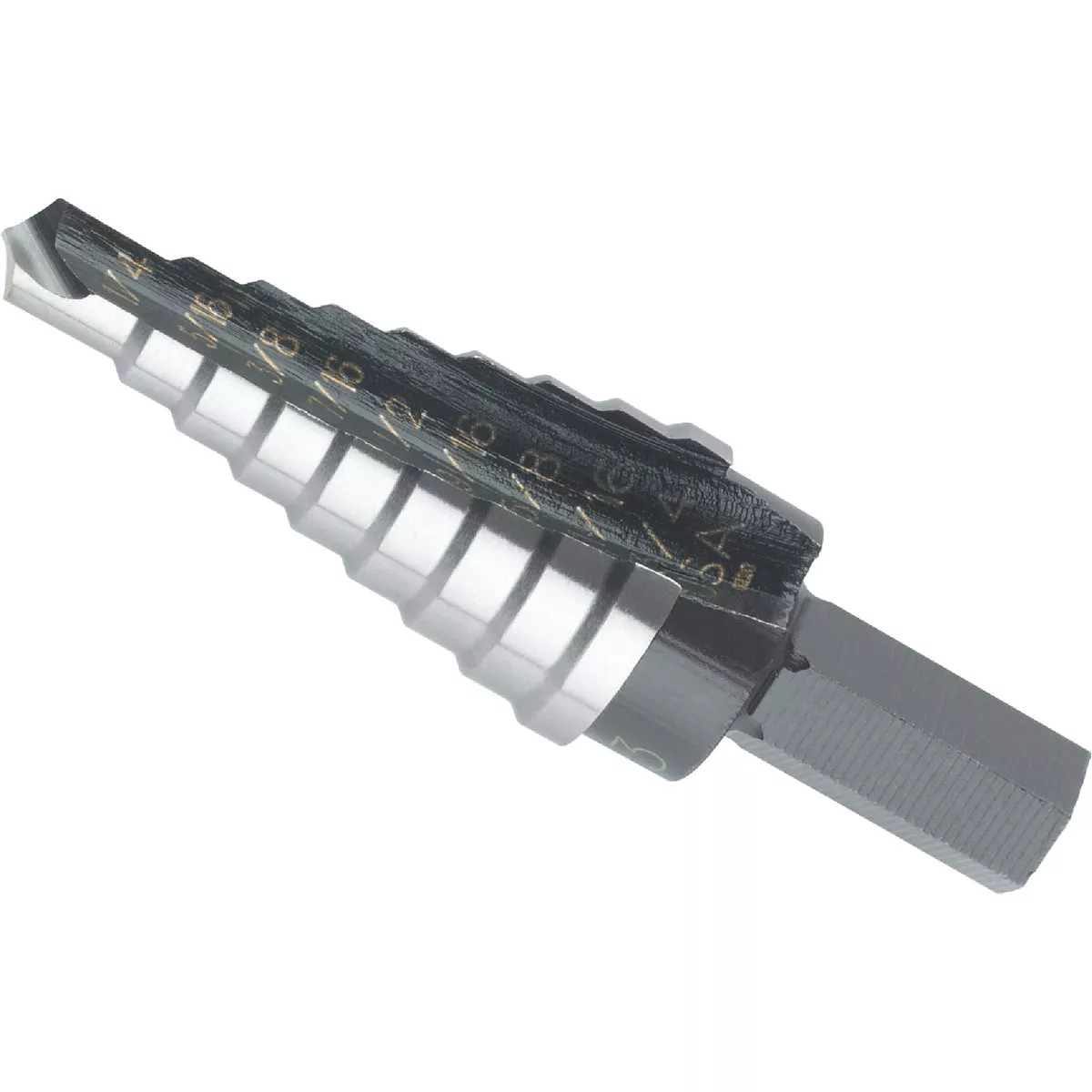

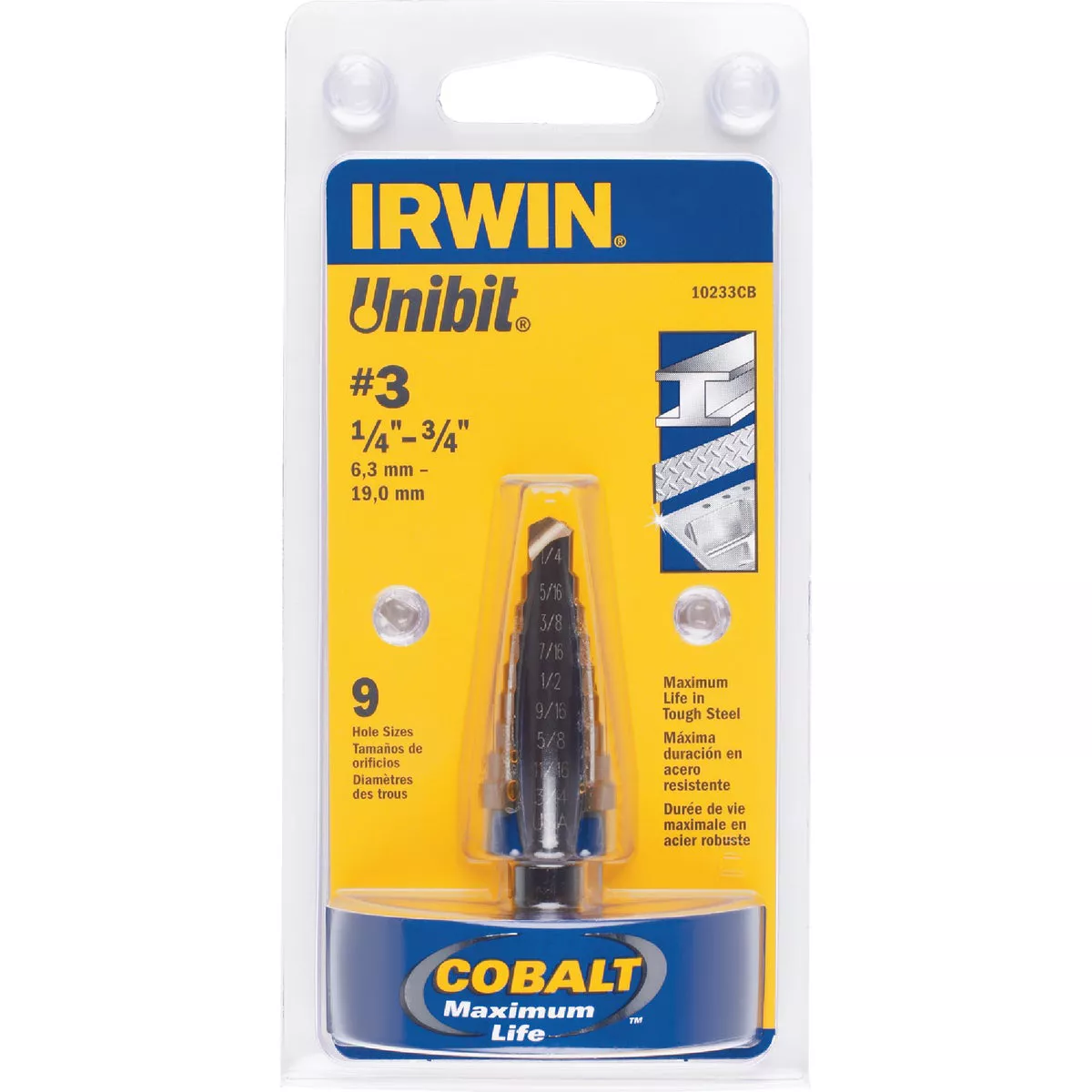

Irwin Unibit 1/4 In. - 3/4 In. #3 Step Drill Bit, 9 Steps
Model #10233Item #302449UPC 00038548101033
Tap to view
Product overview
Single concave flute design creates perfectly round holes in thin materials including steel, brass, copper, and aluminum. Constructed of industrial grade, high speed molybdenum steel. SpeedPoint tip for fast starts.
- Single-flute cutting edge for greater control through steps
- 3 flatted shank prevents slipping in drill chuck

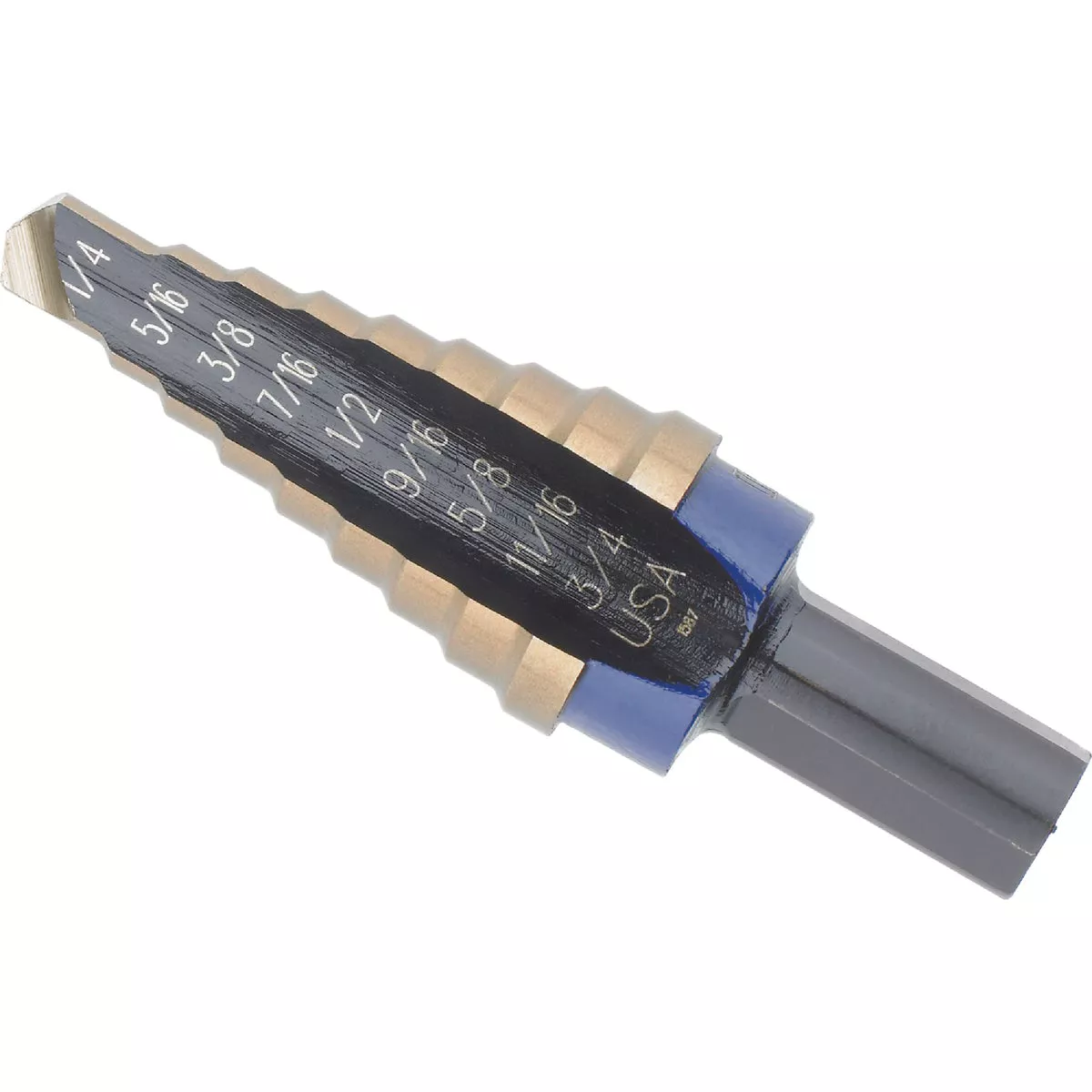

- Also available with titanium nitride coating for longer life
- New SpeedPoint tip penetrates faster than previous Unibits and prevents walking
- Ideal for drilling holes into thin materials such as stainless steel, copper, brass, aluminum, plastic and laminates
Specifications
| Material | High Speed Steel |
| Individual/Set | Individual |
| Shank Diameter | 3/8 In. Hex |
| Number of Holes | 9 Steps |
| Minimum Size | 1/4 In. |
| Maximum Size | 3/4 In. |
| Step Range | 1/16 In. |
| Brand | Irwin |
| UPC | 00038548101033 |
| Product type | Step Drill Bit |
