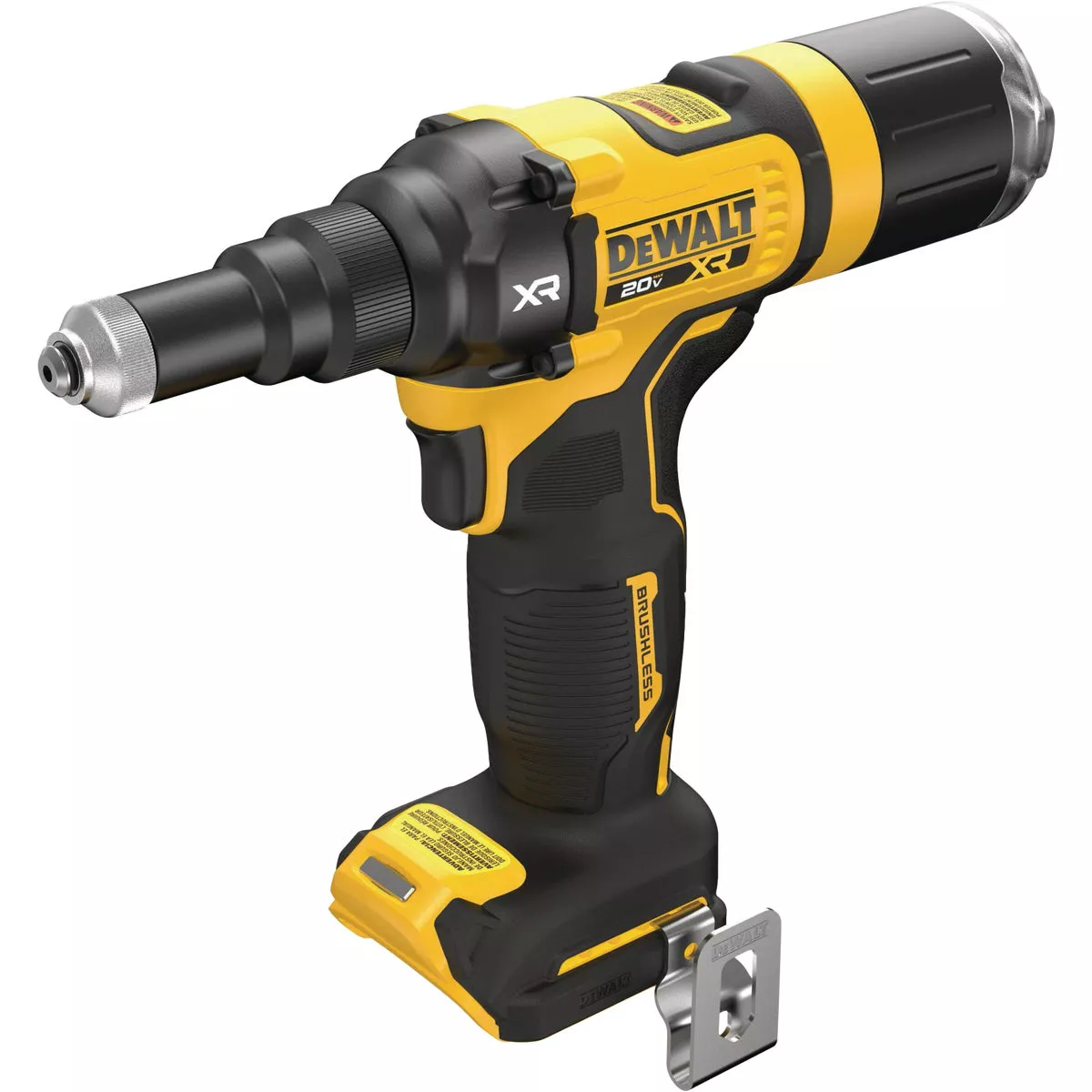

DEWALT 20V MAX XR Brushless 3/16 In. Cordless Rivet Tool (Tool Only)
Model #DCF403B UPC 00885911896252
Item #399489
Tap to view
Product overview

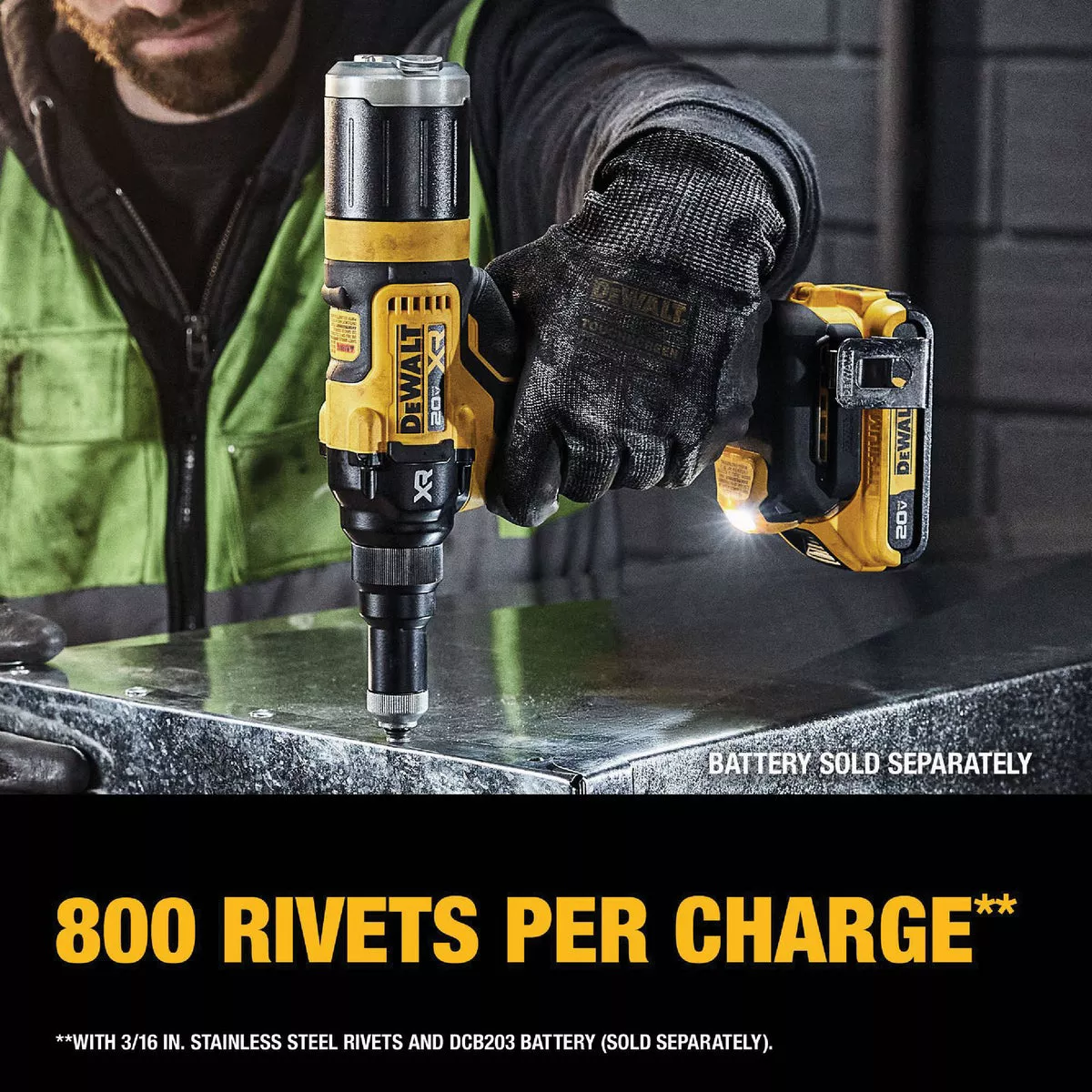

The 20V MAX XR Brushless Cordless 3/16'" Rivet Tool is lightweight yet powerful with a brushless motor that delivers up to 2,100 lbf of pulling force for installing aluminum, steel, and stainless steel blind rivets up to 3/16". With the capability to pull 800 rivets per charge, in addition to a tool-free nose piece change and on-board nose piece storage, this cordless rivet tool maximizes productivity on the jobsite. Compatible with multiple size rivets including 3/32 in., 1/8 in., 5/32 in. and 3/16 in. rivets. Tool only - battery and charger not included.

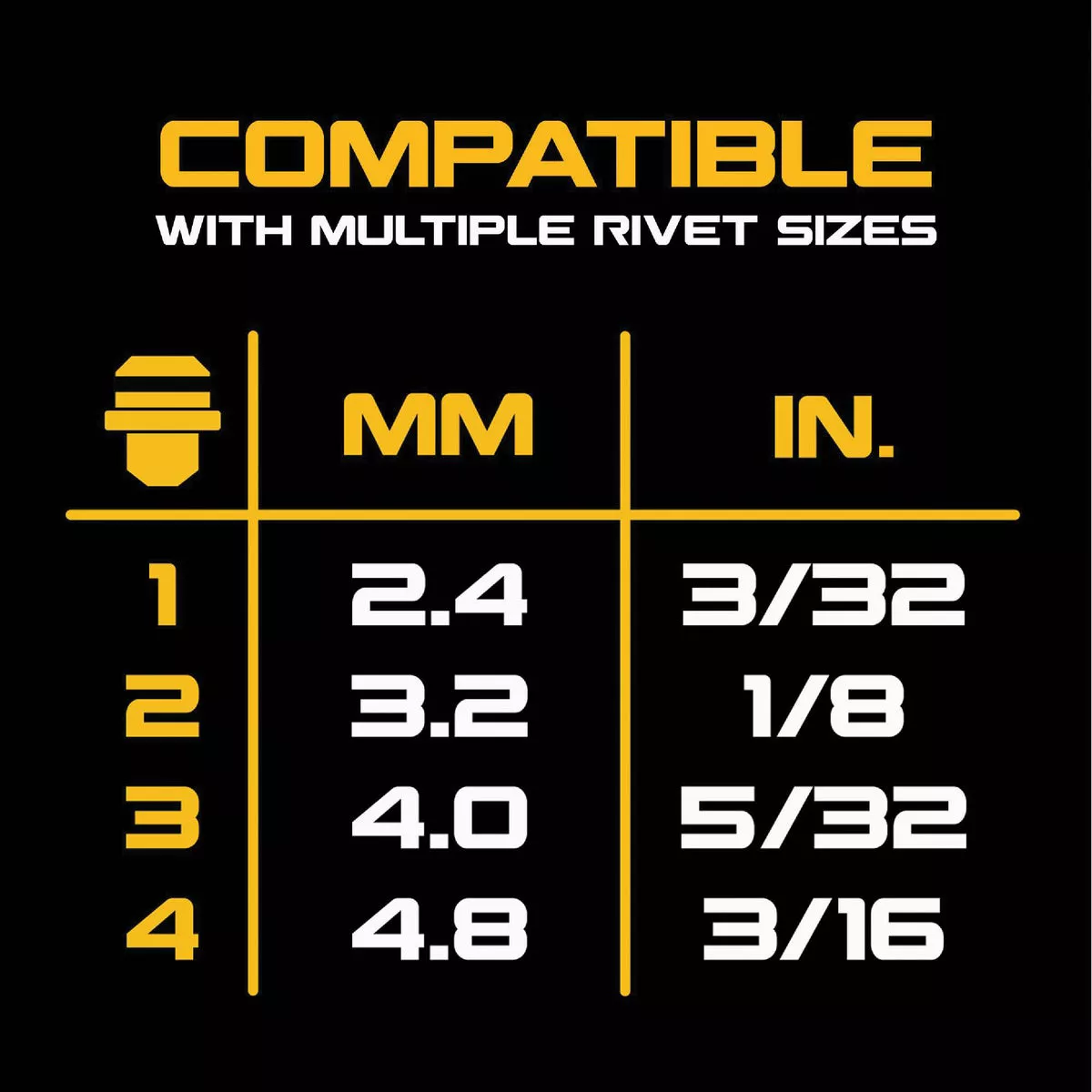

- Compatible with multiple rivet sizes including 3/32", 1/8", 5/32", and 3/16" rivets

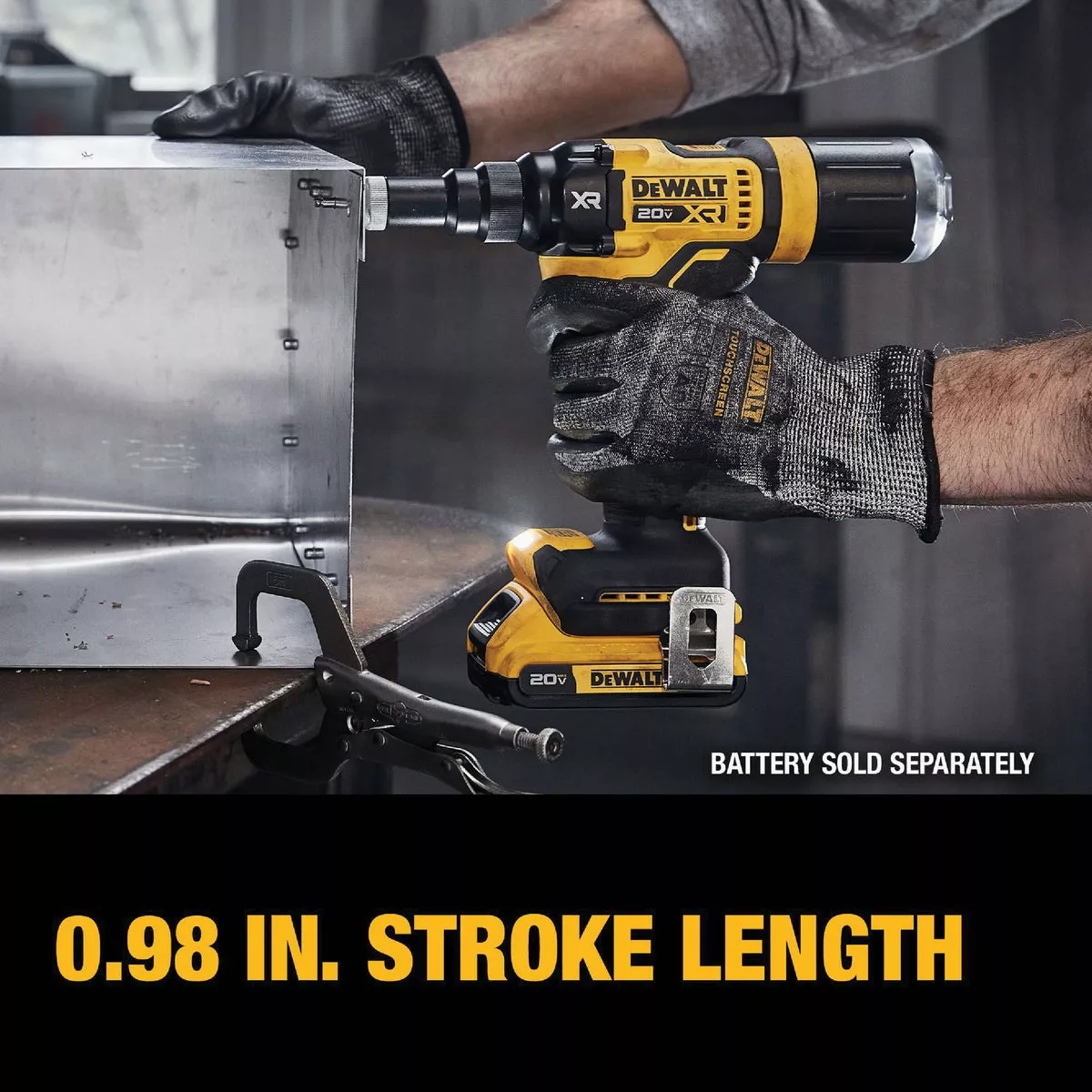

- 0.98" stroke length for fastening rivets in one stroke

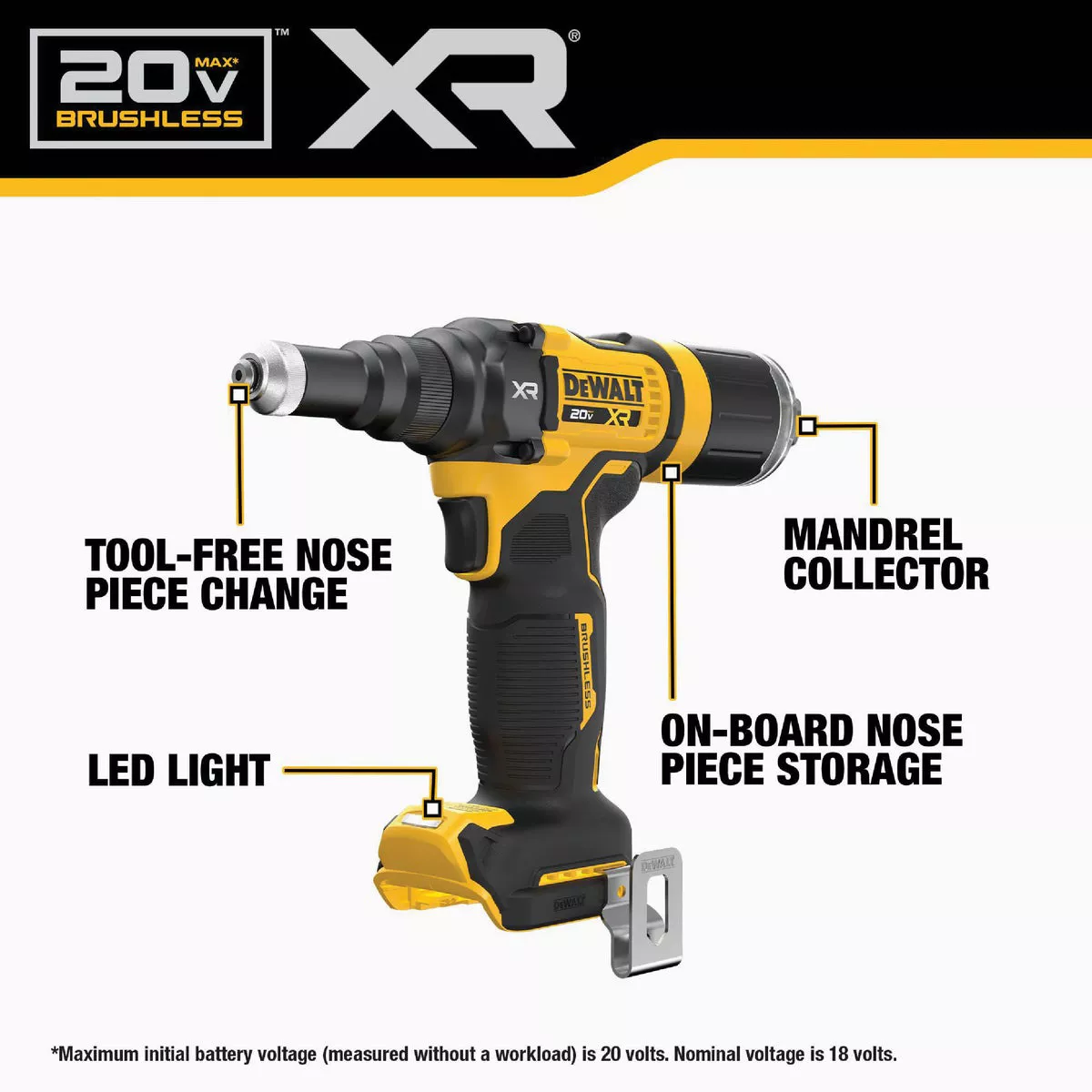

- Brighten work area with an integrated LED work light for enhanced visibility in dimly lit areas
- Capable of pulling aluminum, steel, and stainless steel blind rivets

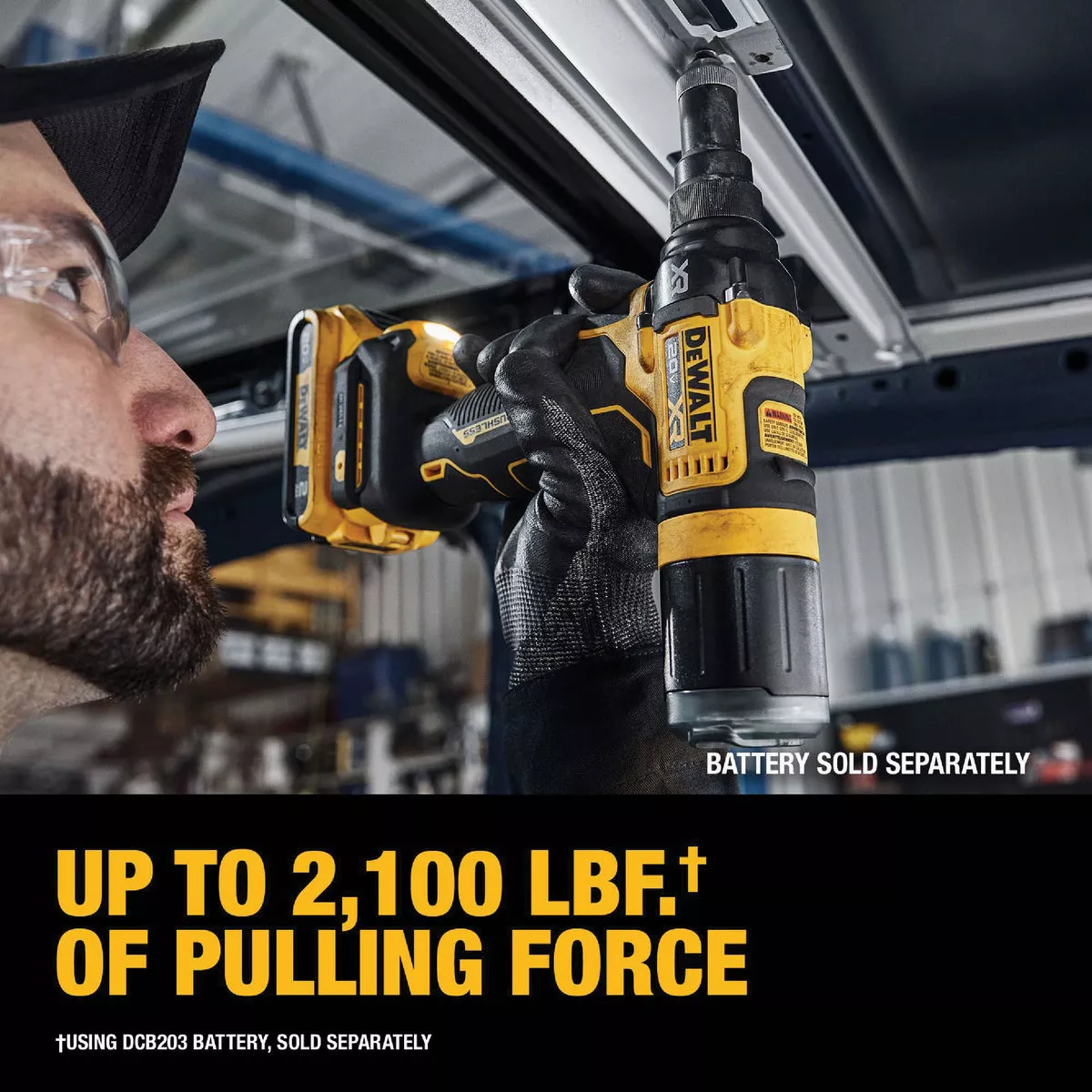

- Brushless motor delivers up to 2,100 lbs of pulling force for fastening rivets, including those made of stainless steel

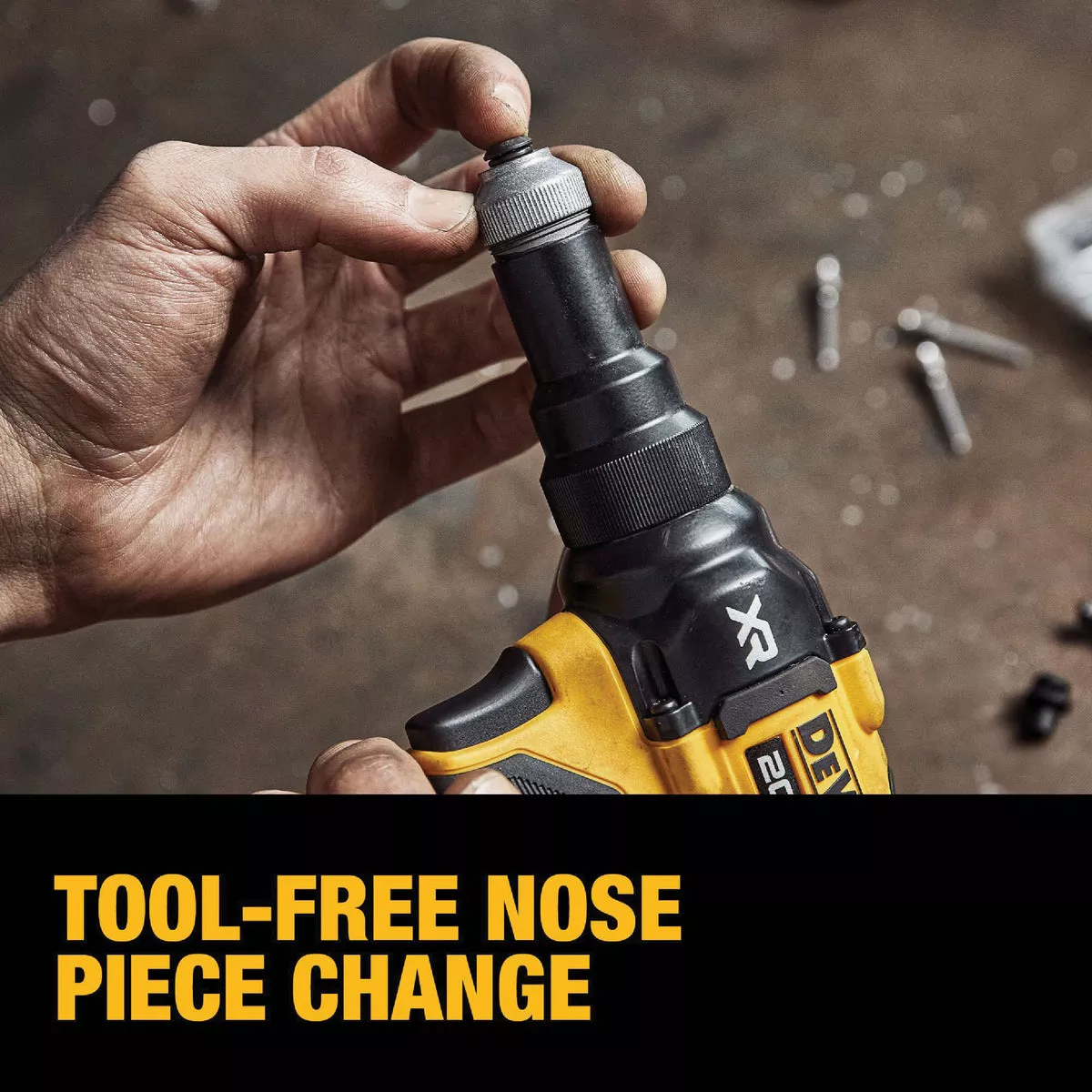

- Designed for ease of use with tool-free nose change and on-board nose piece storage
- On-board mandrel collector designed to collect and stores loose mandrels
Specifications
| Voltage | 20 |
| Warranty | 3 Year |
| Battery Type | Lithium-Ion |
| Charger Included | No |
| Corded/Cordless | Cordless |
| Case Included | No |
| Motor Type | Brushless |
| Batteries Included | No |
| Nose Reach | 3/16 In. |
| Battery Platform | DEWALT 20V MAX |
| Width (In.) | 3.25 |
| Height (In.) | 8.6 |
| Length (In.) | 10.5 |
| Weight (Lb.) | 4 |
| Brand | DEWALT |
| UPC | 00885911896252 |
| Product type | Cordless Rivet Tool |
