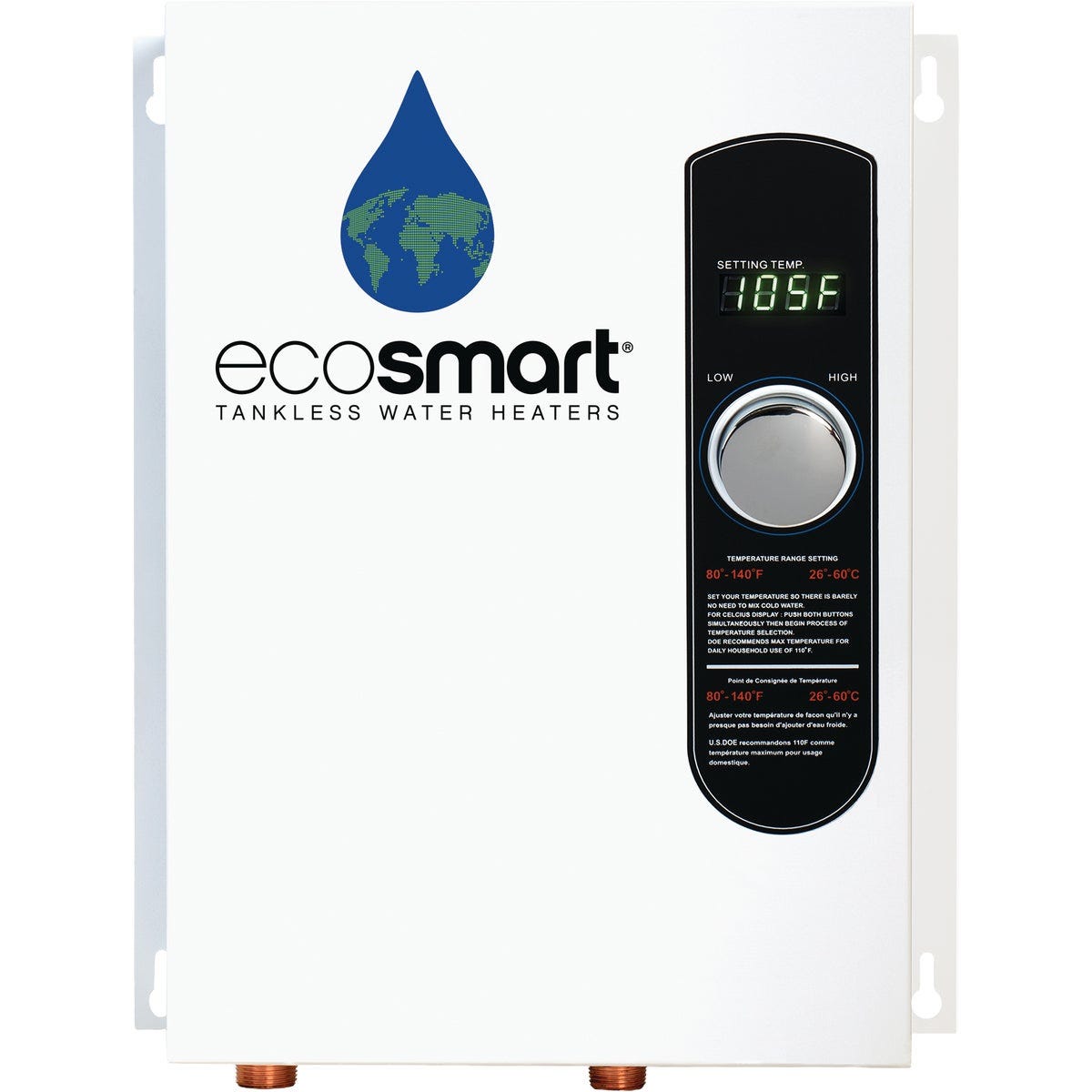

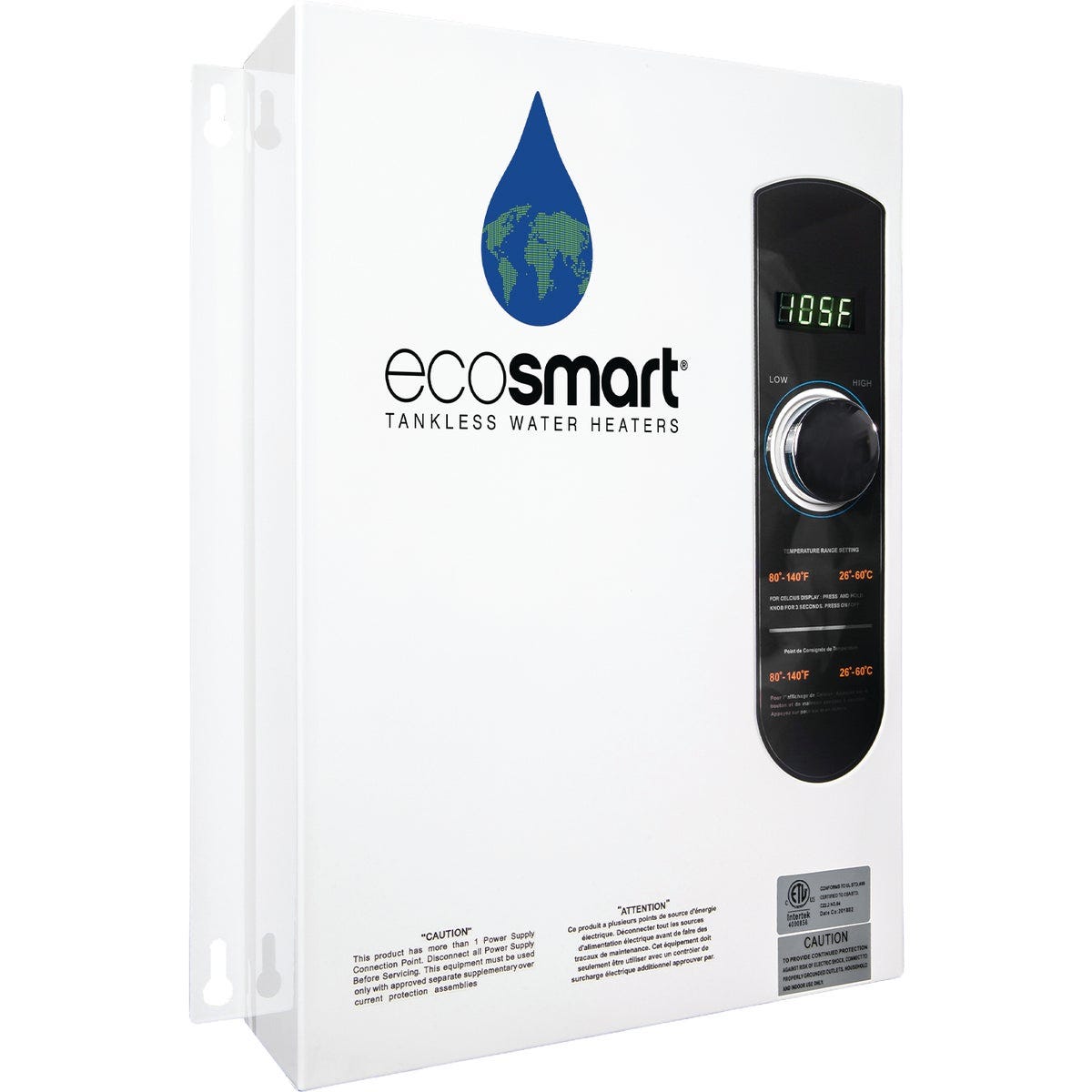

EcoSMART 240V Single Phase 18kW Tankless Electric Water Heater
Model #ECO 18 UPC 00854920002046
Item #467248
Tap to view
Product overview

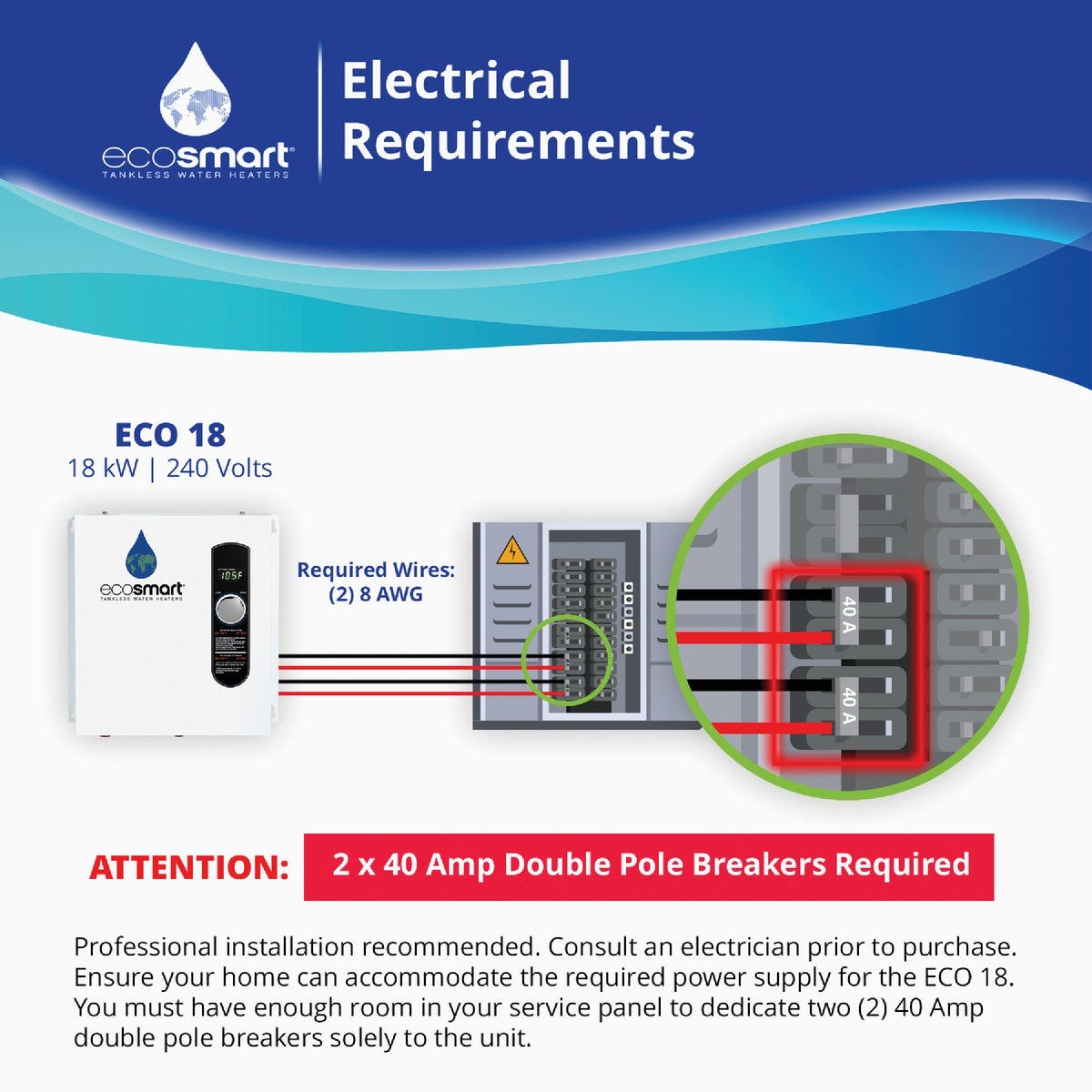

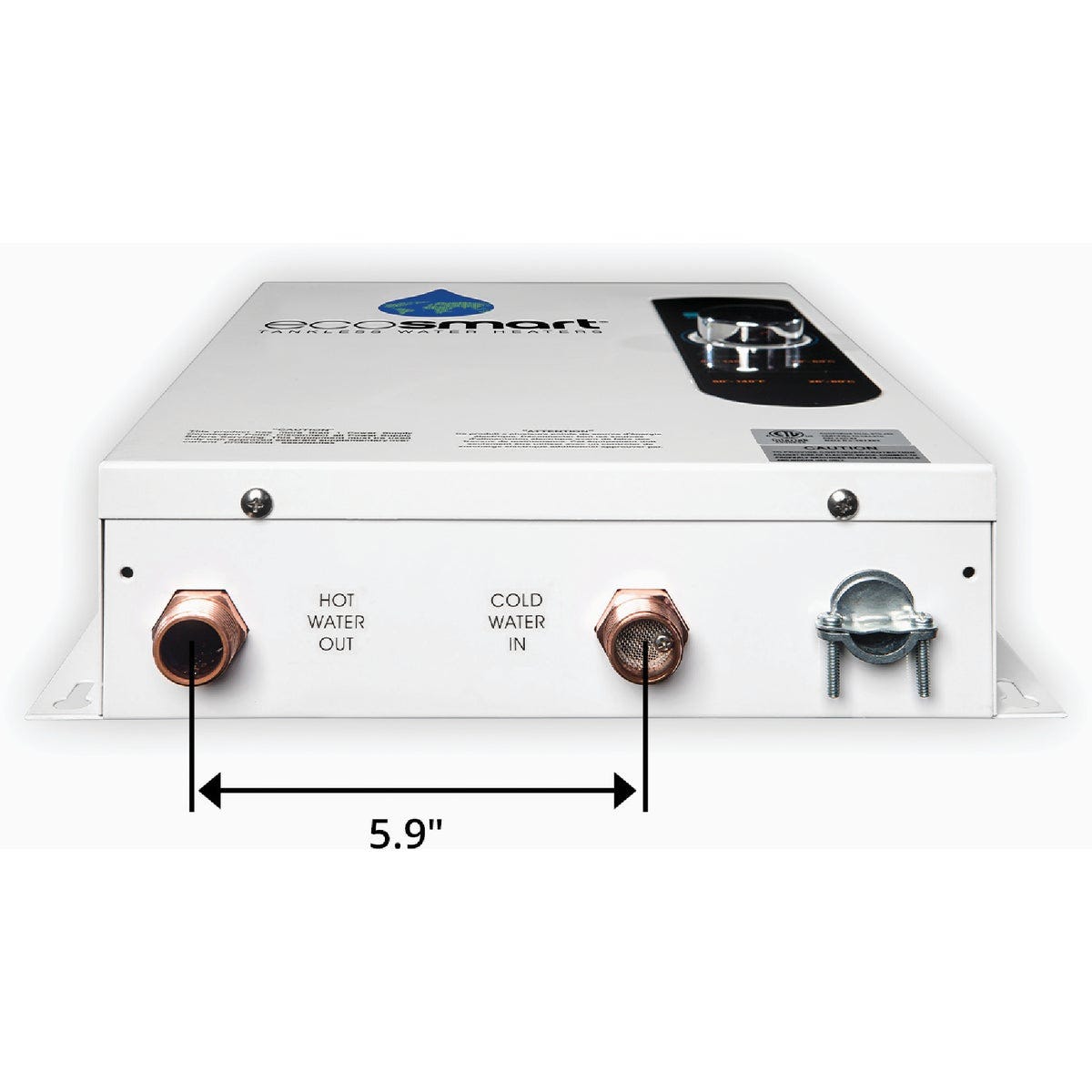

Configured for climates where incoming water temperatures are in the 60 F to 70 F. range. Self-modulating flow-sensor technology regulates the amount of energy required to heat the water needed. Digital temperature display showing the outlet water temperature setting. Uses (2) 9 kW standard Emerson electric heating elements with brass tops to prevent electrolysis. Copper heat exchanger. Automatic resettable thermostat. (2) 40 DP breakers required. 75A draw. Required wire: 2 sets 8 AWG. Pipe fitting: 3/4 In. NPT. Energy factor: 0.998. UL and CSA certified.

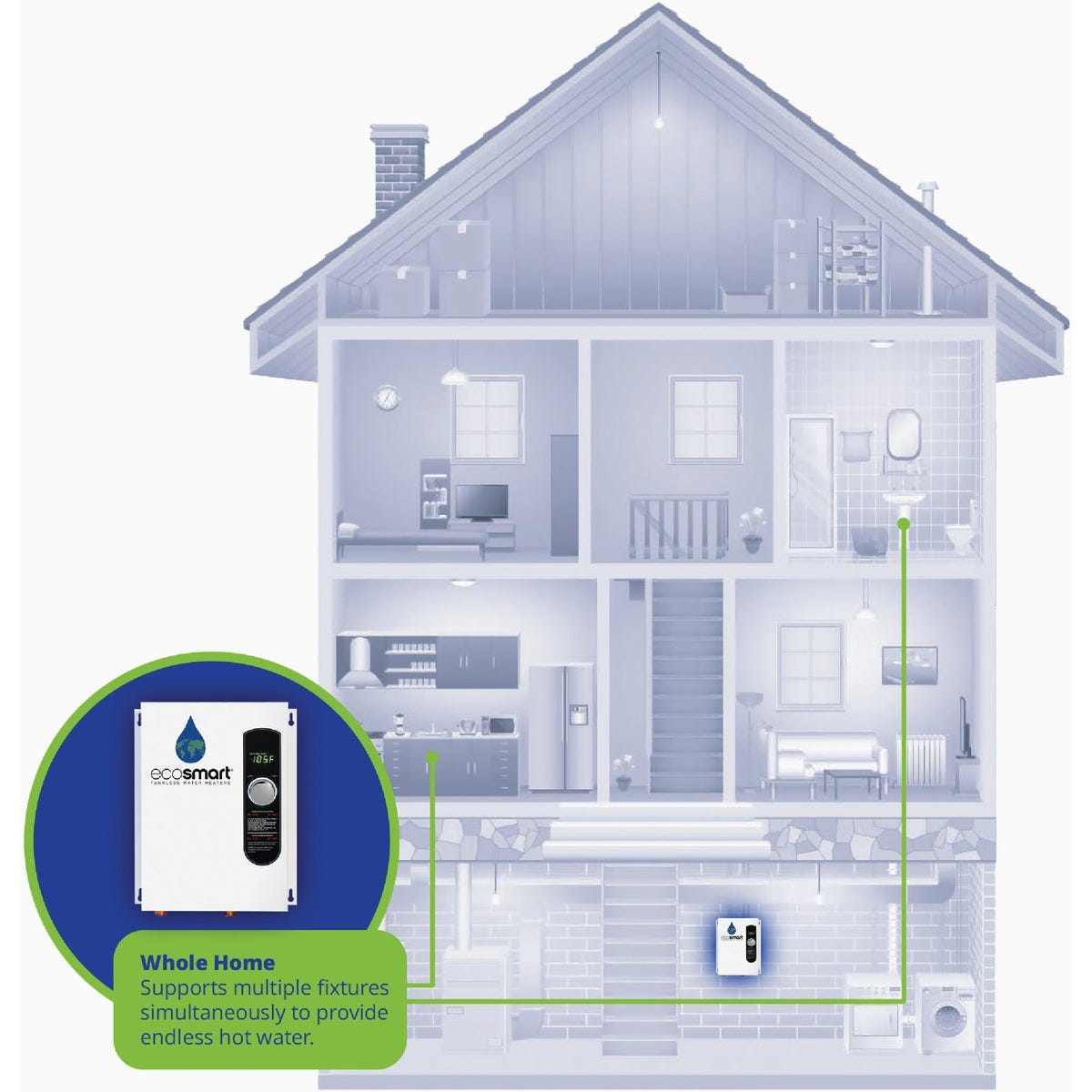

- Designed for larger apartments, condominiums, or townhomes
- Digital thermostatic temperature control in 1-degree increments

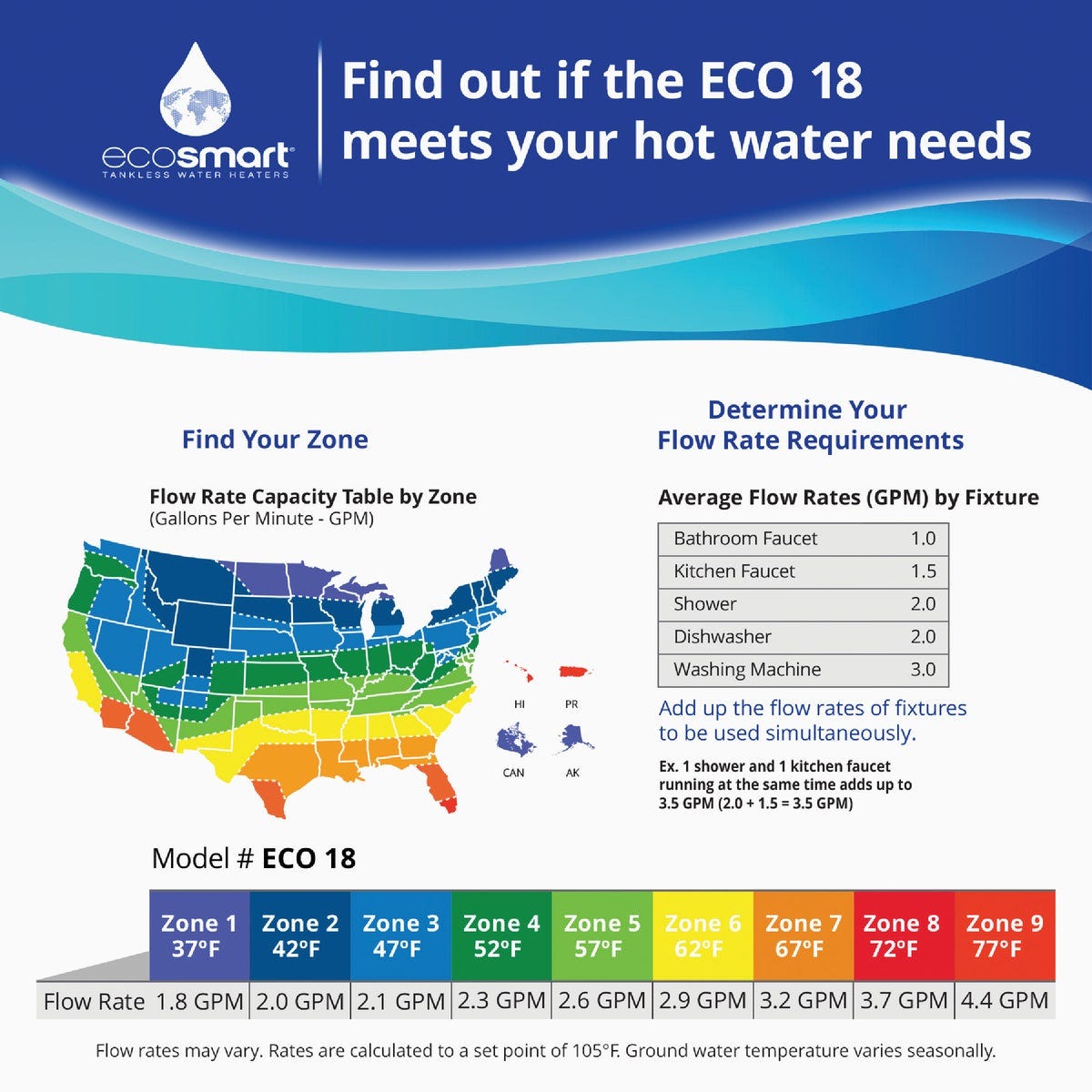

- Provides between 1.8 to 4.4 gpm (gallons per minute) depending on inlet water temperature
- Consumes only the energy necessary for the specified demand
- Limited lifetime warranty
- Low Flow Faucet .5 GPM / .5 - .9 Range
- Bathroom Faucet 1 GPM / .5 - 1.3 Range
- Kitchen Faucet 1.5 GPM / 1.0 - 2.2 Range
- Shower 2 GPM / 1.5 - 2.5 Range
Specifications
| Width | 14 In. |
| Voltage | 240 |
| Type | Tankless |
| Warranty | Limited Lifetime |
| Capacity | 3.5 gpm |
| Height | 17-3/4 In. |
| Depth | 4-1/4 In. |
| Wattage | 18,000 |
| Fuel Type | Electric |
| Uniform Energy Factor | 0.998 |
| For Mobile Home Use | No |
| Family Size | 3 |
| Household Size | 3 |
| Application Type | Tankless |
| Width (In.) | 14 |
| Height (In.) | 17.75 |
| Brand | EcoSMART |
| UPC | 00854920002046 |
| Product type | Electric Water Heater |
