EcoSMART 240V Single Phase 27kW Tankless Electric Water Heater
Model #ECO 27Item #467251 UPC 00854920002091
Tap to view
Product overview

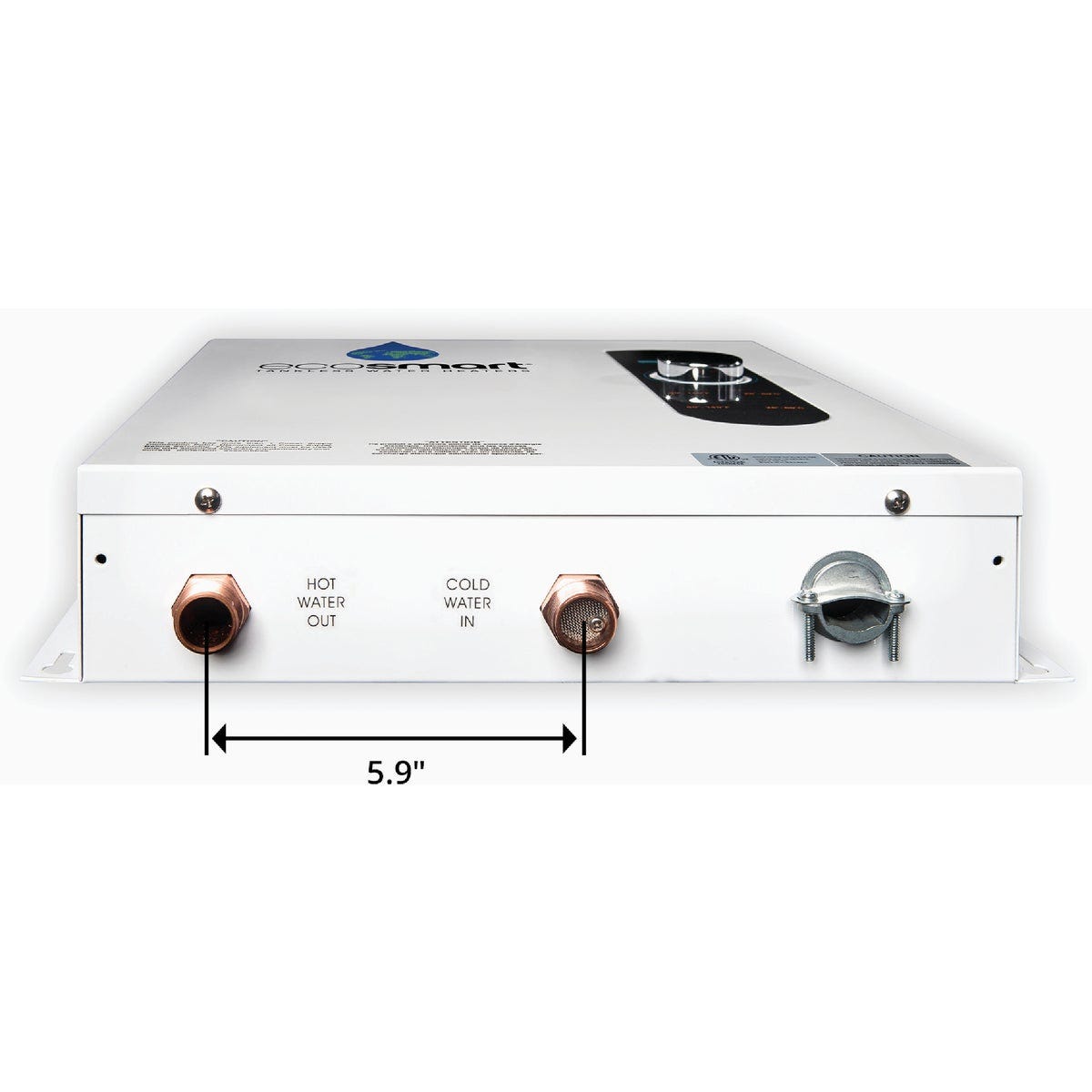

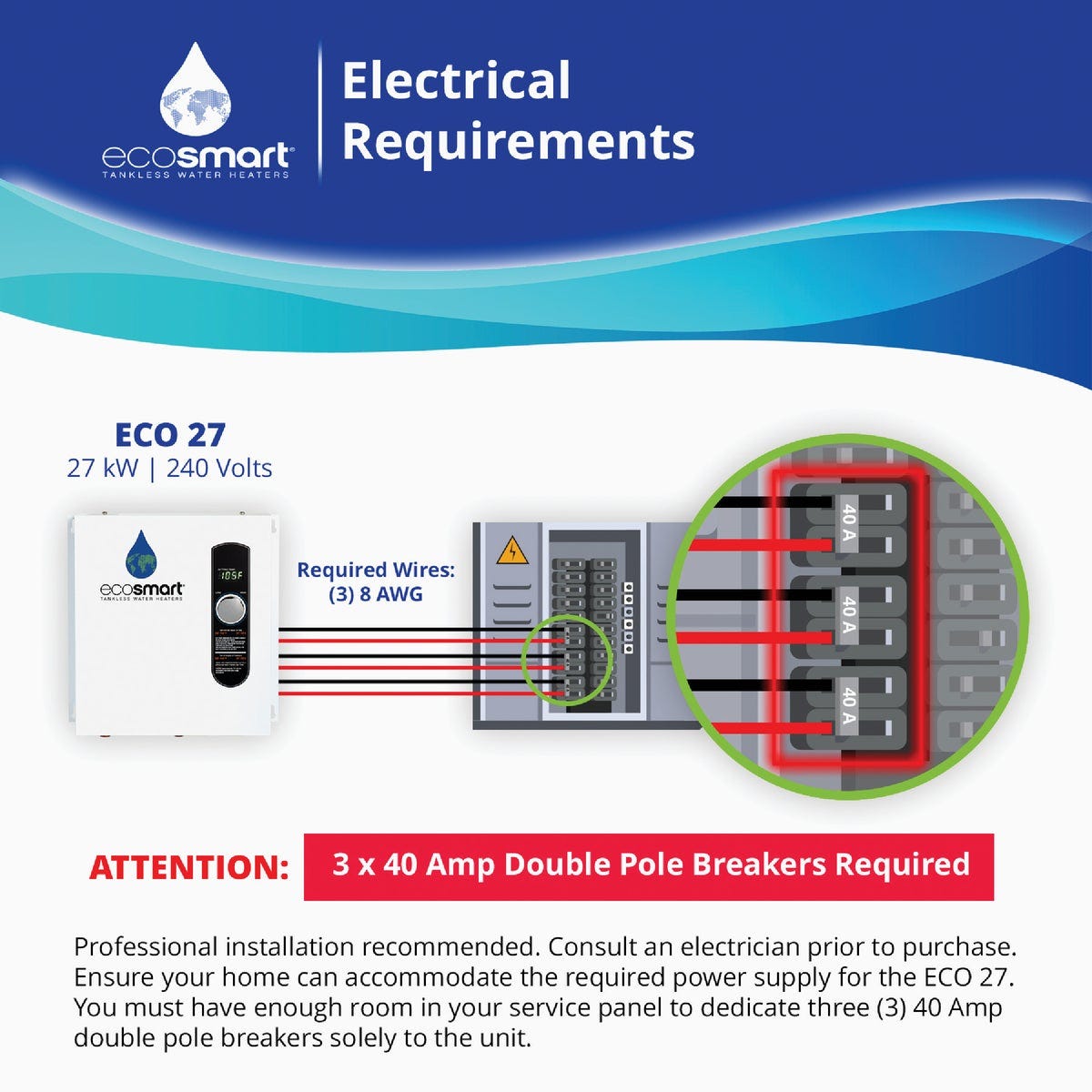

Configured for cold climates or high flow rates. Well suited where incoming water temperature can drop below 45 F. For use in more demanding water usage applications. Self-modulating flow-sensor technology regulates the amount of energy required to heat the water needed. Digital temperature display showing the outlet water temperature setting. Uses (3) 9 kW standard Emerson electric heating elements with brass tops to prevent electrolysis. Copper heat exchanger. Automatic resettable thermostat. (3) 40 DP breakers required. 112A draw. Required wire: 3 sets 8 AWG. Pipe fitting: 3/4 In. NPT. Energy factor: 0.998. UL and CSA certified.
- Perfect fit to provide hot water for point-of-use or low-flow applications such as: bathrooms, small sinks, and office breakrooms
- Digital thermostatic temperature control in 1-degree increments

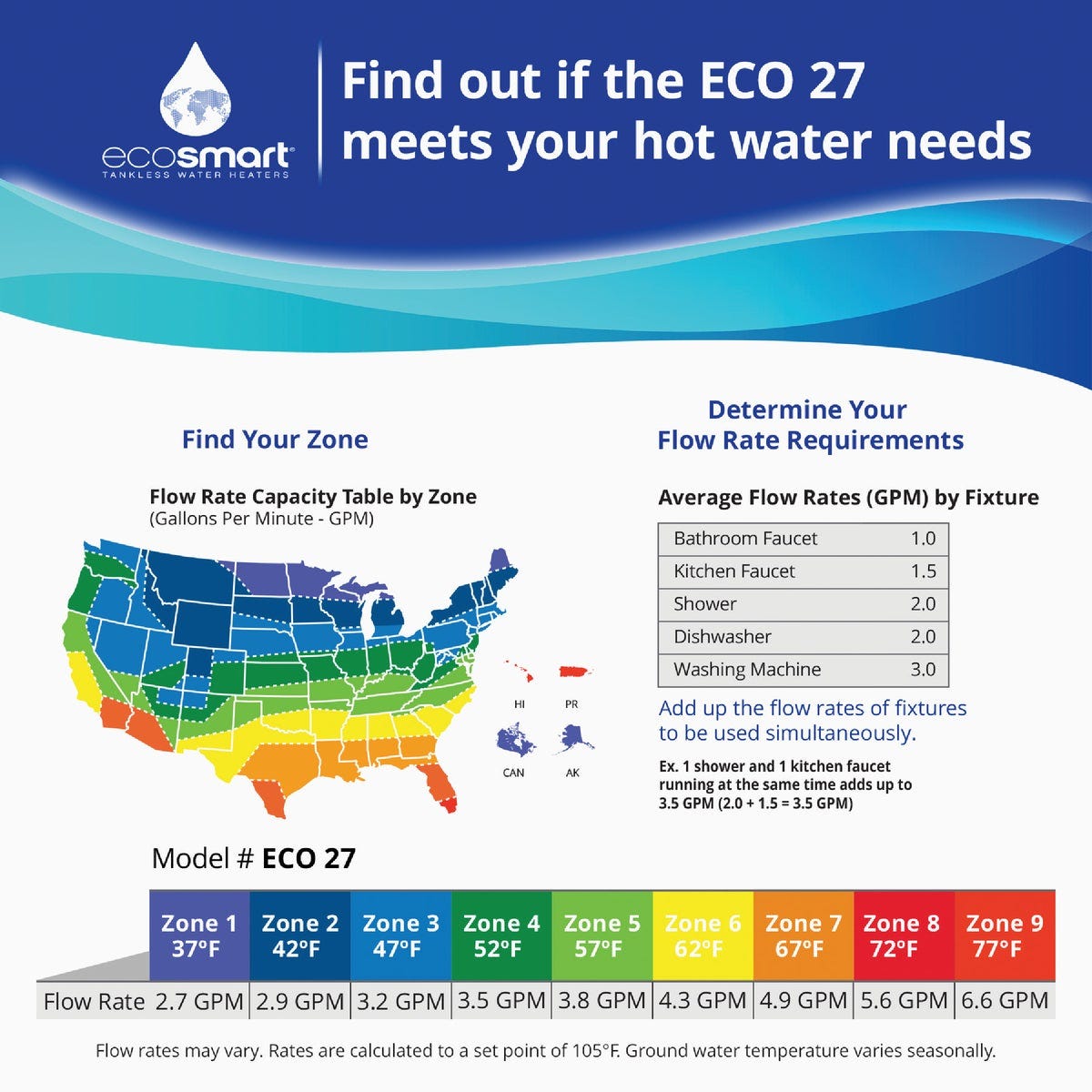

- Provides between 2.7 to 6.6 gpm (gallons per minute) depending on inlet water temperature
- Consumes only the energy necessary for the specified demand
- Limited lifetime warranty
- Low Flow Faucet .5 GPM / .5 - .9 Range
- Bathroom Faucet 1 GPM / .5 - 1.3 Range
- Kitchen Faucet 1.5 GPM / 1.0 - 2.2 Range
- Shower 2 GPM / 1.5 - 2.5 Range
Specifications

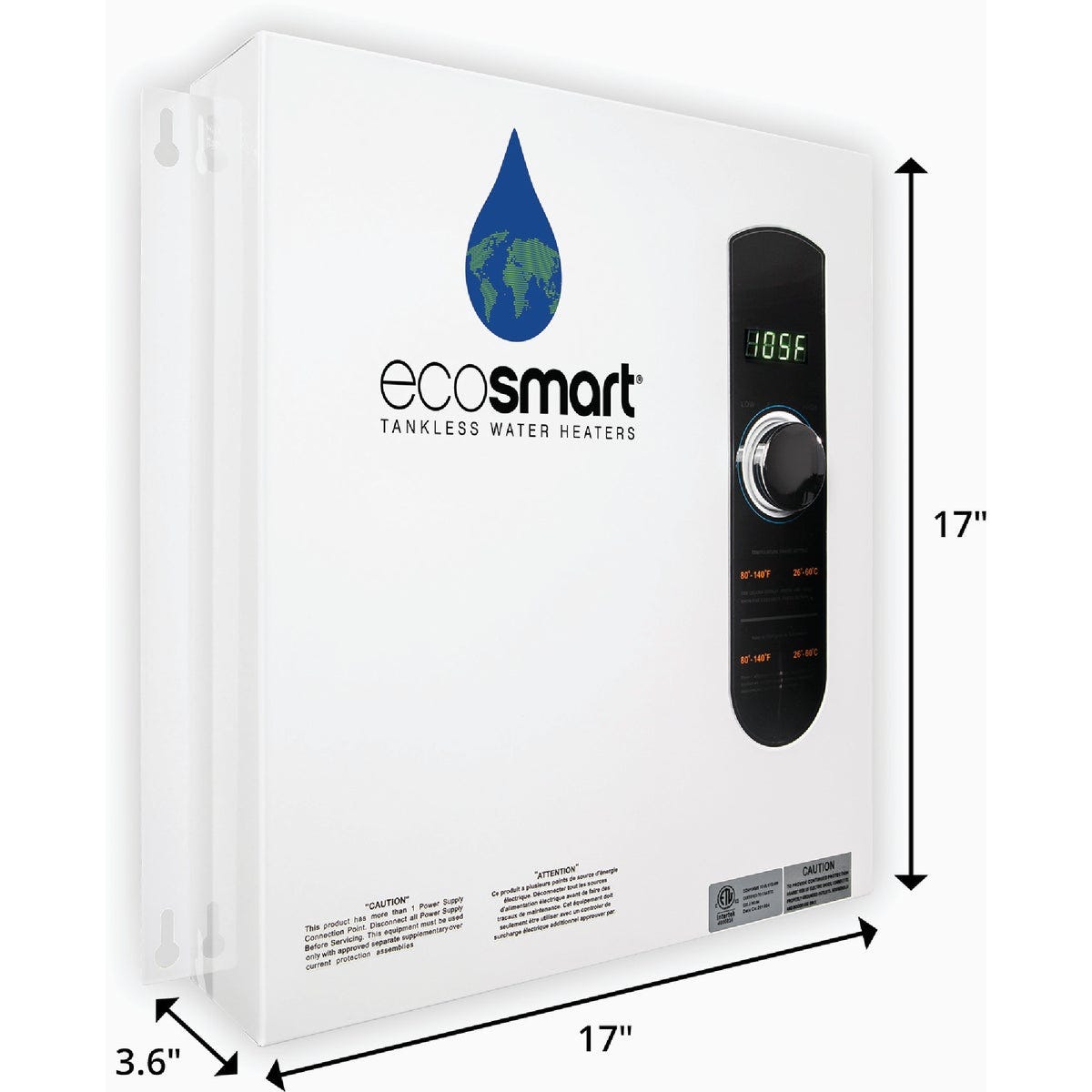

| Width | 17 In. |
| Voltage | 240 |
| Type | Tankless |
| Capacity | 5.25 gpm |
| Wattage | 27,000 |
| Application Type | Tankless |
| Width (In.) | 17 |
| Height (In.) | 17.75 |
| Brand | EcoSMART |
| UPC | 00854920002091 |
| Product type | Electric Water Heater |
