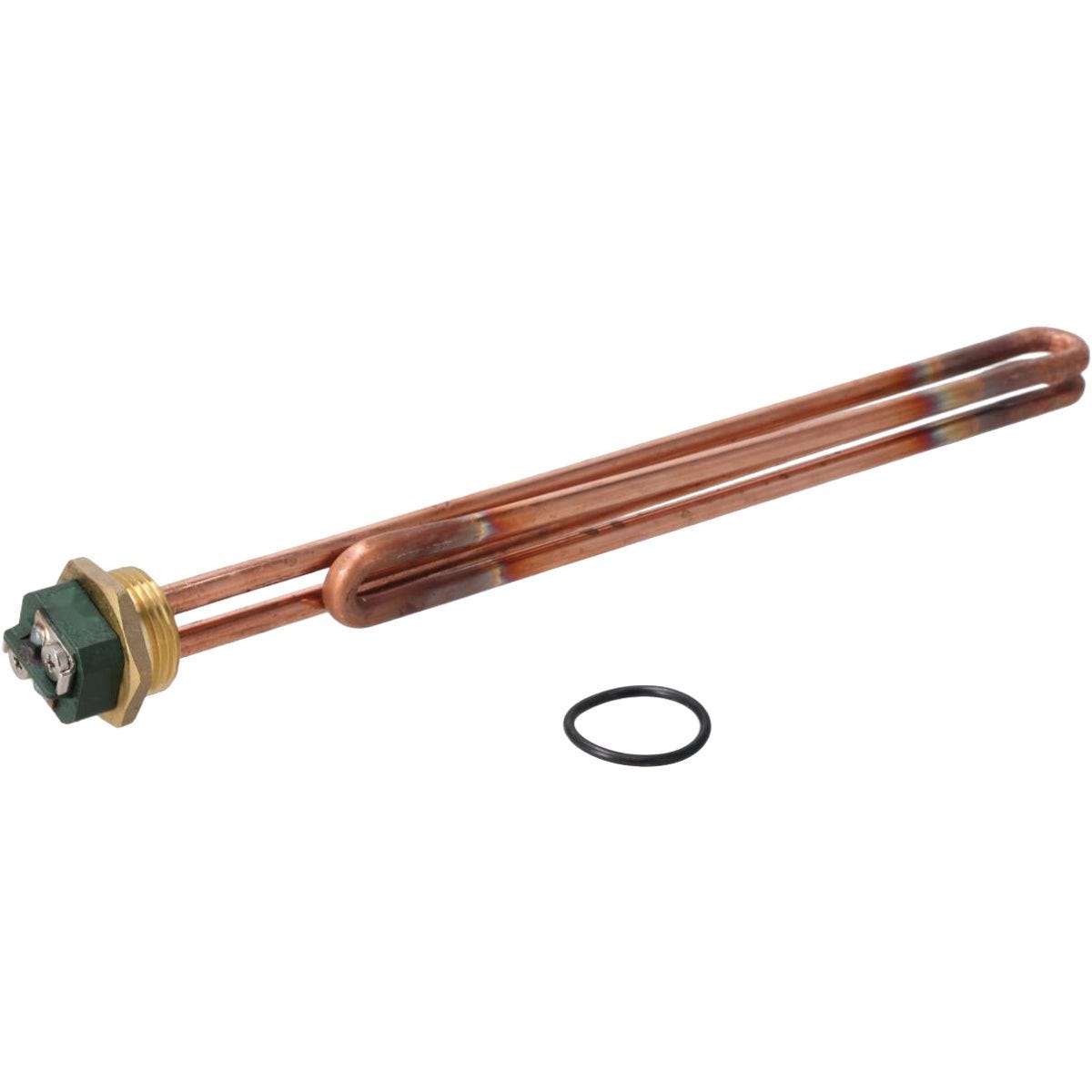

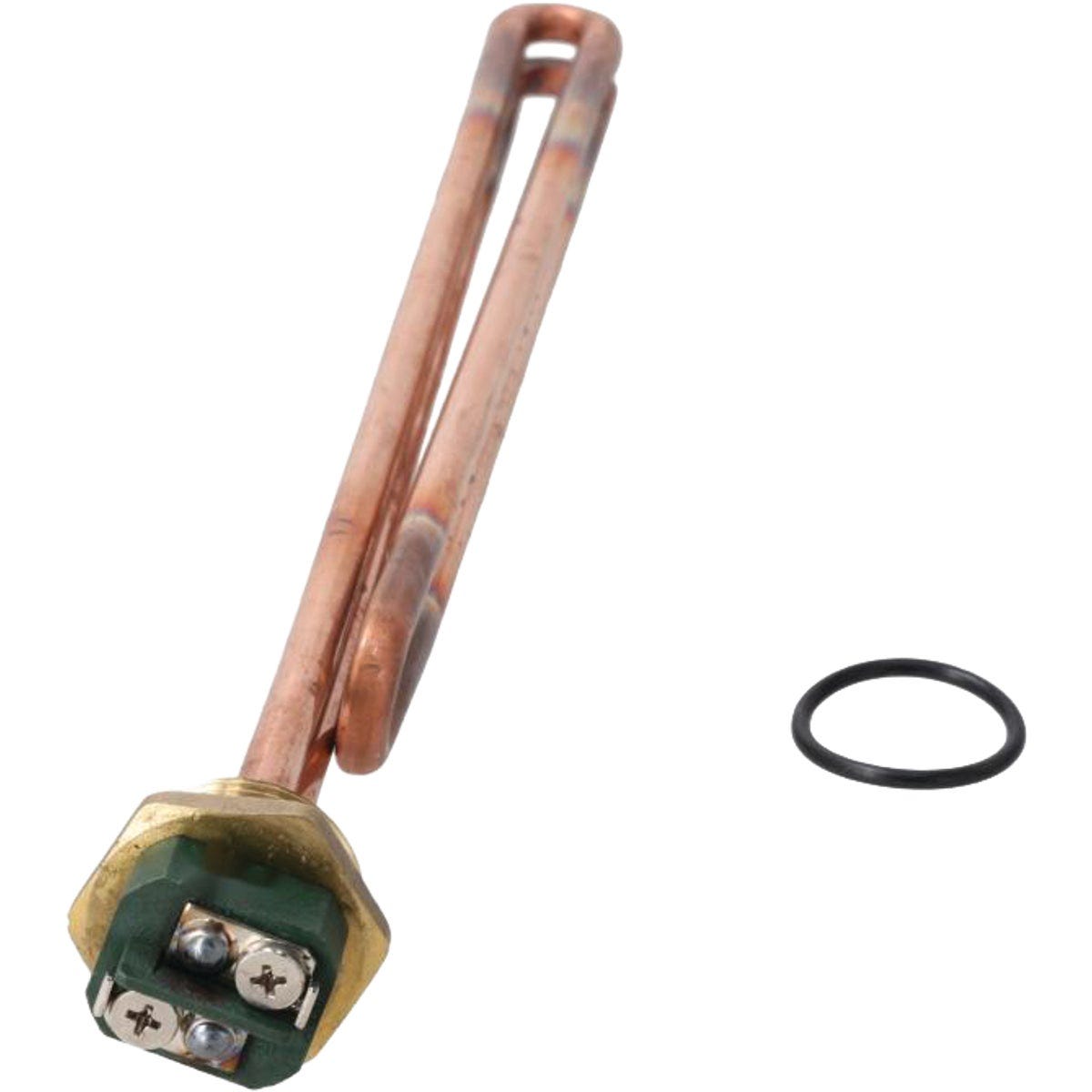

Ecosmart 9000W Tankless Electric Water Heater Element
Model #HE 90240Item #469223UPC 00854920003043
Tap to view
Product overview
9000 watts at 240 volts heating element for the EcoSmart ECO 18, ECO 27, and ECO 36 tankless water heaters. Also compatible with other manufacturers' heating elements with the same specs. This element comes fully assembled. This element is easy to install.
- Gasket-type O-Ring included
- Voltage rating: 220 to 240 Volts
- Power rating is 9000 Watts at 240V
- Plug type: Screw-in
- Sheath material: Copper
- Density is for high wattage
- Length of the copper anode element material: 13.0 inches (NOT including the brass threads)
- Length from end of brass plug with threads to end of element "U" turn: 13 7/16 inches (including the brass threads)
- Length of the entire item, from the screws at bottom of plastic plug to the end of element "U" turn: 14 3/16 inches
- Weight of item not including packaging: 15.2 ounces
Specifications
| Length | 14 In. |
| Material | Copper |
| Voltage | 240 |
| Size | 14 In. |
| Wattage | 9000 |
| Brand | EcoSMART |
| UPC | 00854920003043 |
| Product type | Water Heater Element |
