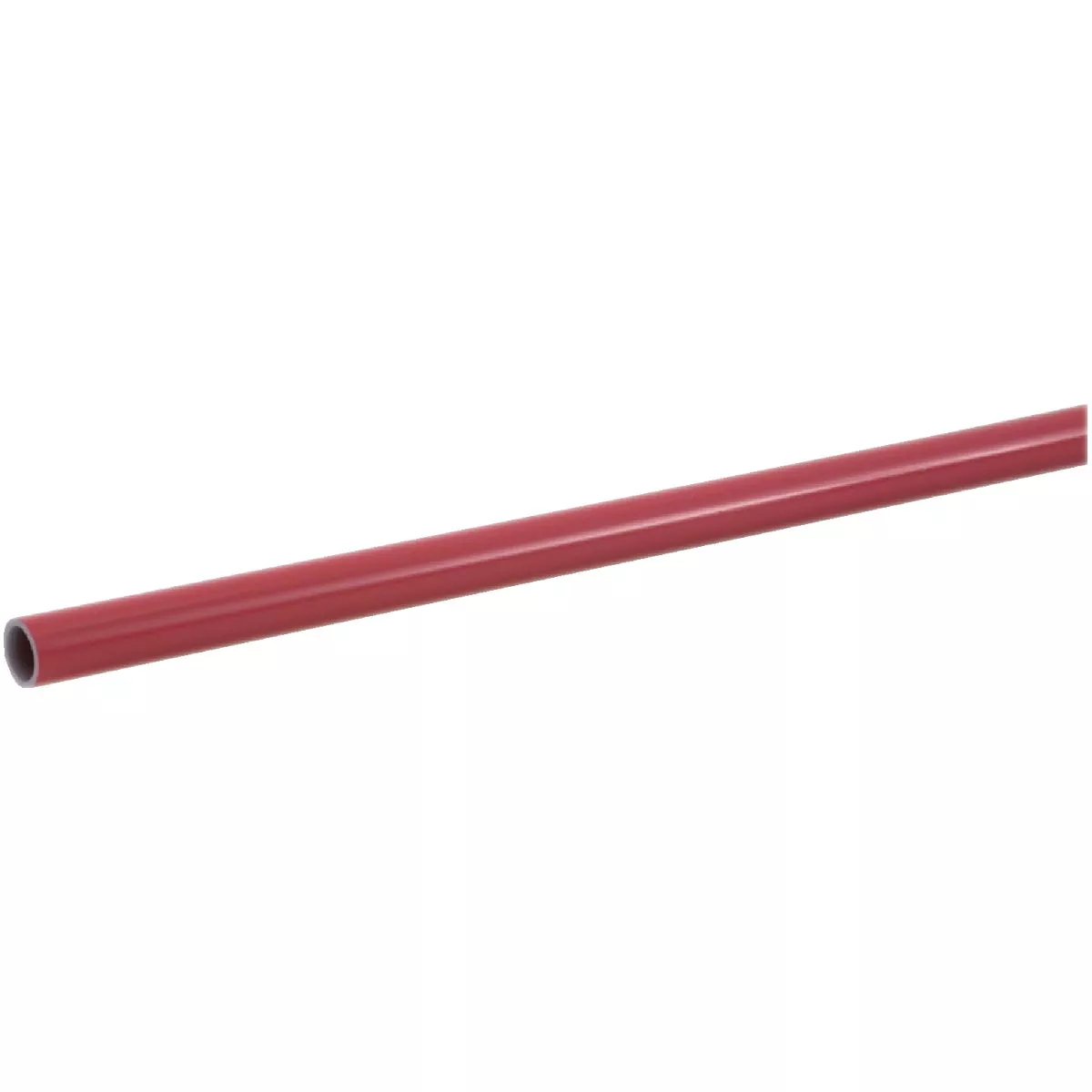

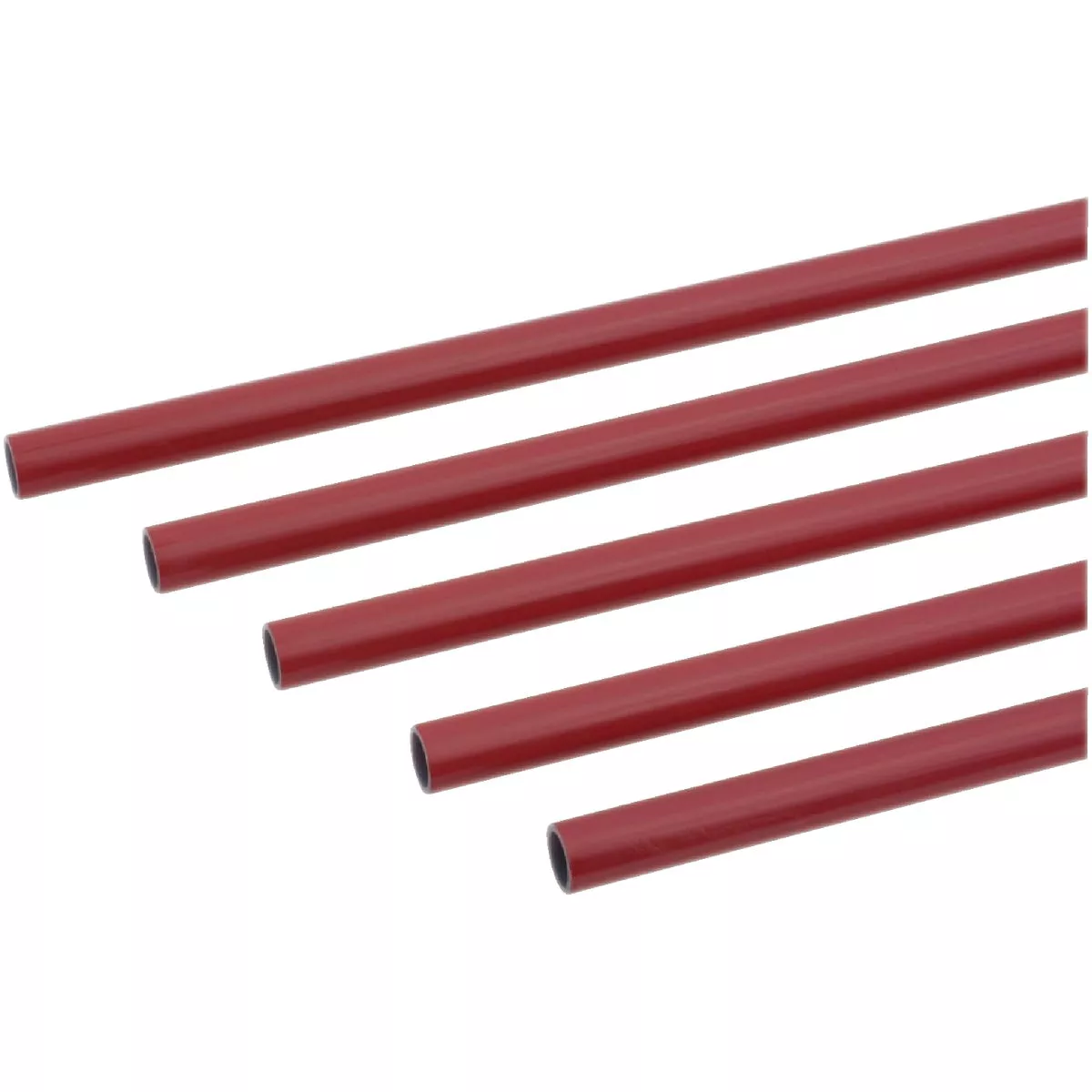

SharkBite 3/4 In. x 5 Ft. Red PEX Pipe Type A Stick
Model #UA70R5Item #492707UPC 00697285059252
Tap to view
Product overview
PEX-A pipe. Features faster installation compared to rigid pipe. Flexible pipe reduces the number of connection points while reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
- Offers the highest-rated flexibility
- 6-month UV resistance
- Approved for water service lines and burial applications including being buried under concrete
- Approved for use with SharkBite EvoPEX, SharkBite Brass Push (ASSE 1061), poly and brass expansion fittings (ASTM F1960), plastic barb (ASTM F2159) and brass barb (ASTM F1807) fittings
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
- Minimum working temperature: 33 Deg F 160 psi
- Maximum working temperature: 200 Deg F 80 psi
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
This product can expose you to chemicals including Bisphenol A (BPA), Carbon Black, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
WARNING:This product can expose you to chemicals including Bisphenol A (BPA), Carbon Black, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Request Safety Data Sheet (SDS)
Specifications
| Color | RED |
| Type | A |
| Outside Diameter | 0.875 In. |
| Pressure Rating | 160 psi |
| Temperature Rating | 33 Deg F to 200 Deg F |
| Inside Diameter (In.) | 3/4 |
| Length (Ft.) | 5 |
| Brand | SHARKBITE |
| UPC | 00697285059252 |
| Product type | PEX Pipe |
