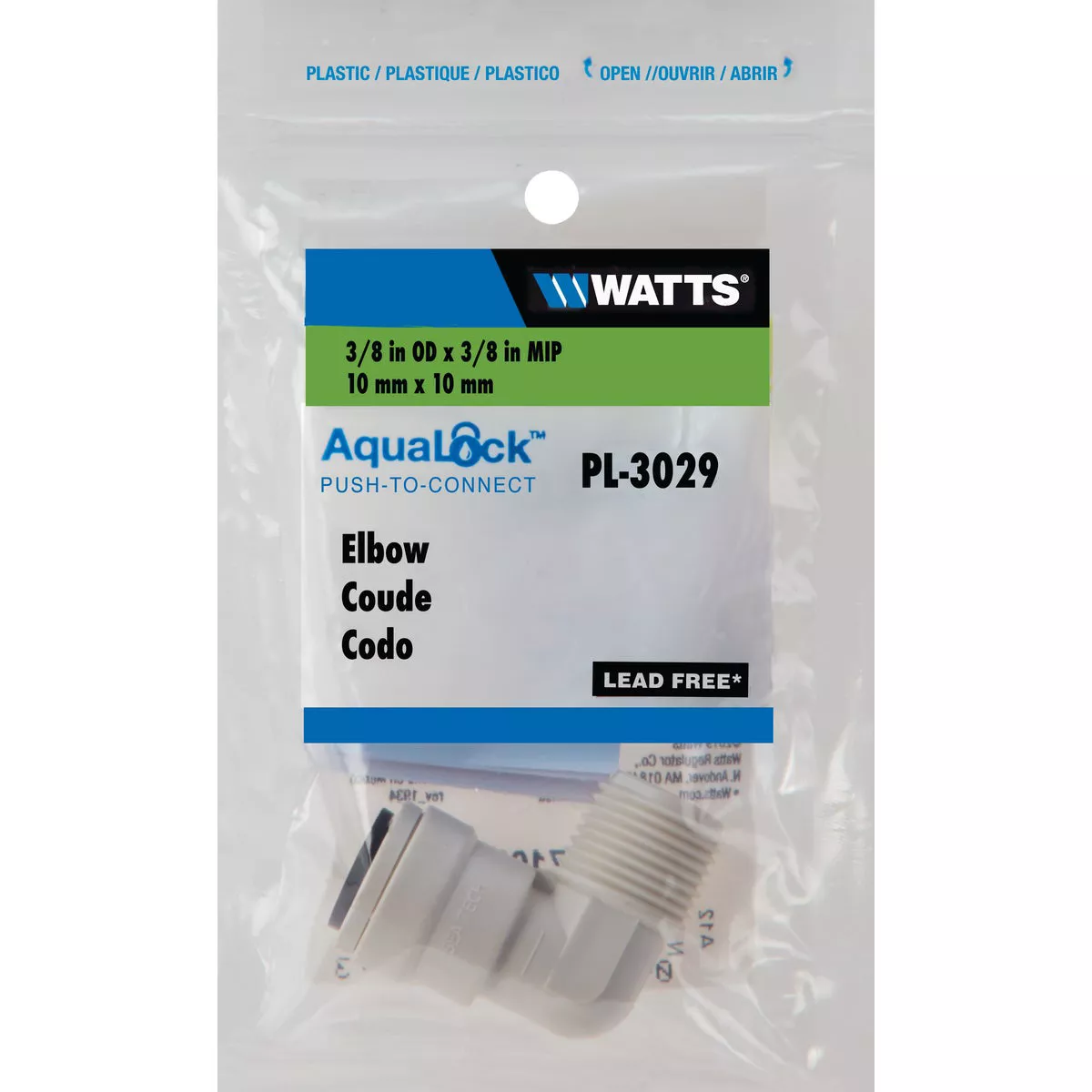

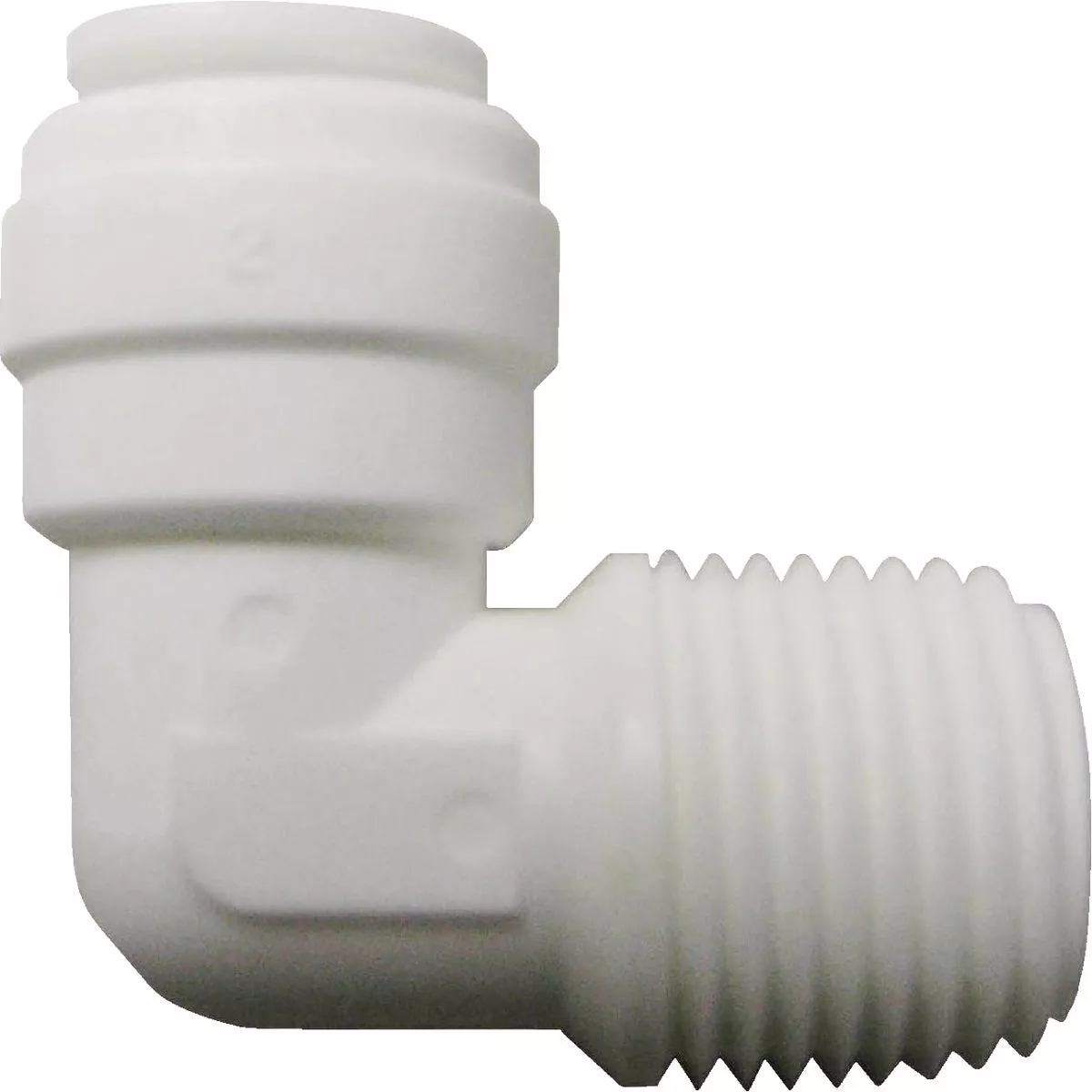

Watts Aqualock 3/8 In. OD x 3/8 In. MNPT 90 Deg. Push-to-Connect Plastic Elbow (1/4 Bend)
Model #PL-3029Item #498358UPC 00048643201323
Tap to view
Product overview
AquaLock mini male elbow works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
- Zero-leak connections
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- No tools required for installation or removal
- Works with plastic or soft copper tubing
- 25-year limited warranty
Specifications
| Material | Plastic |
| Type | Elbow |
| Angle | 90 Deg. |
| Fitting Size 1 | 3/8 In. |
| Fitting Size 2 | 3/8 In. |
| Connection Type 1 | Push |
| Connection Type 2 | Male |
| Pressure Rating (psi) | 150 |
| Fitting Type | Elbow |
| Brand | Watts |
| UPC | 00048643201323 |
| Product type | Plastic Elbow |
