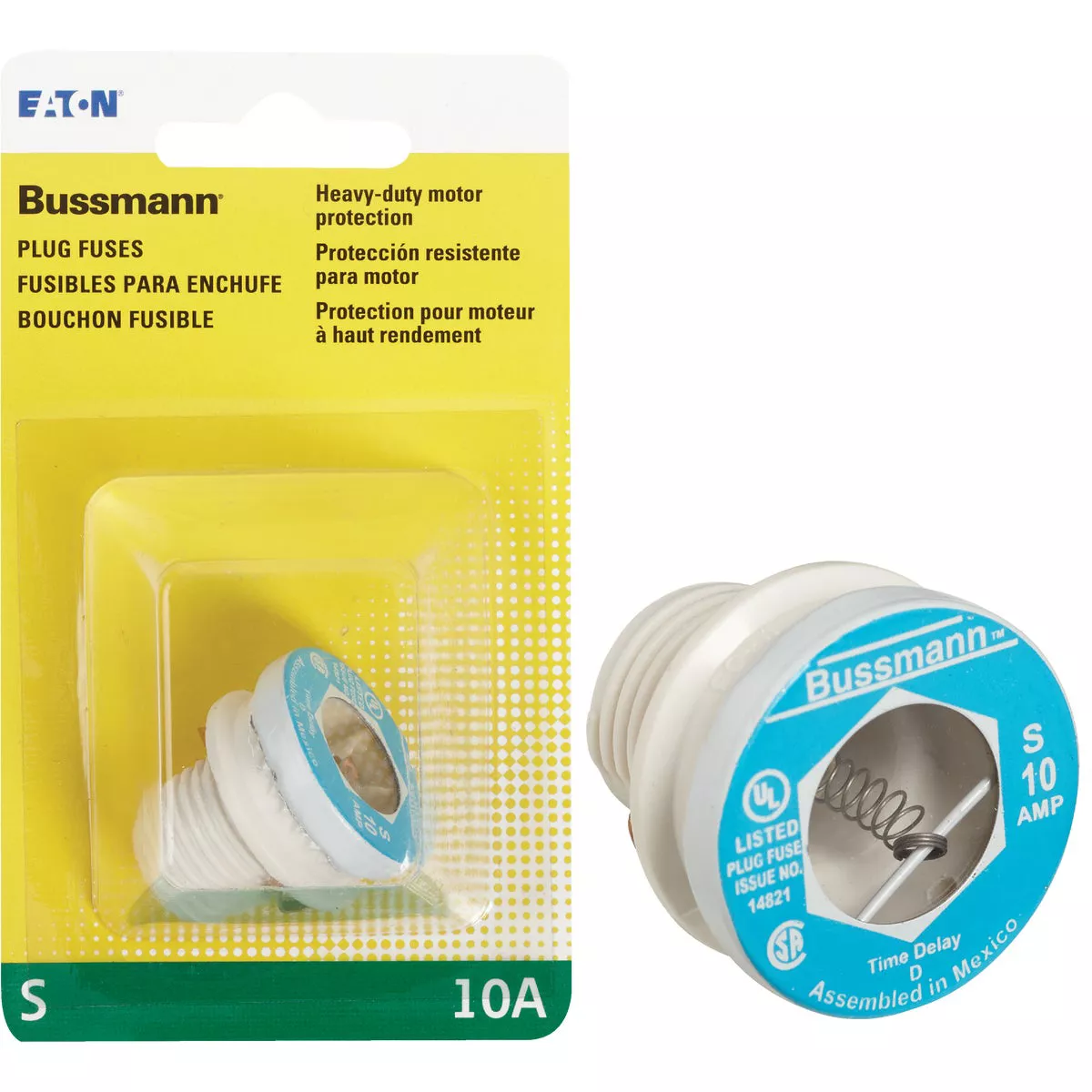

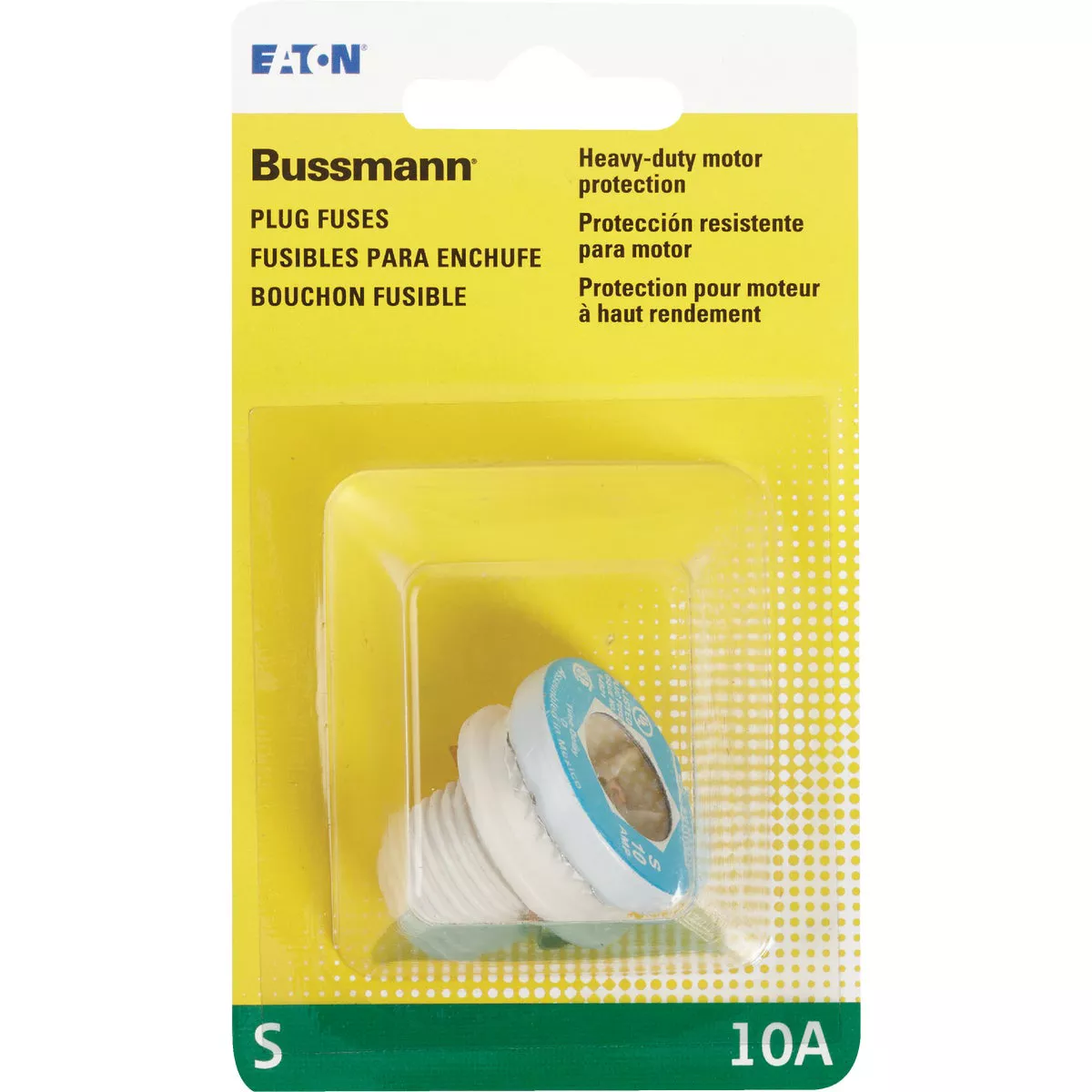

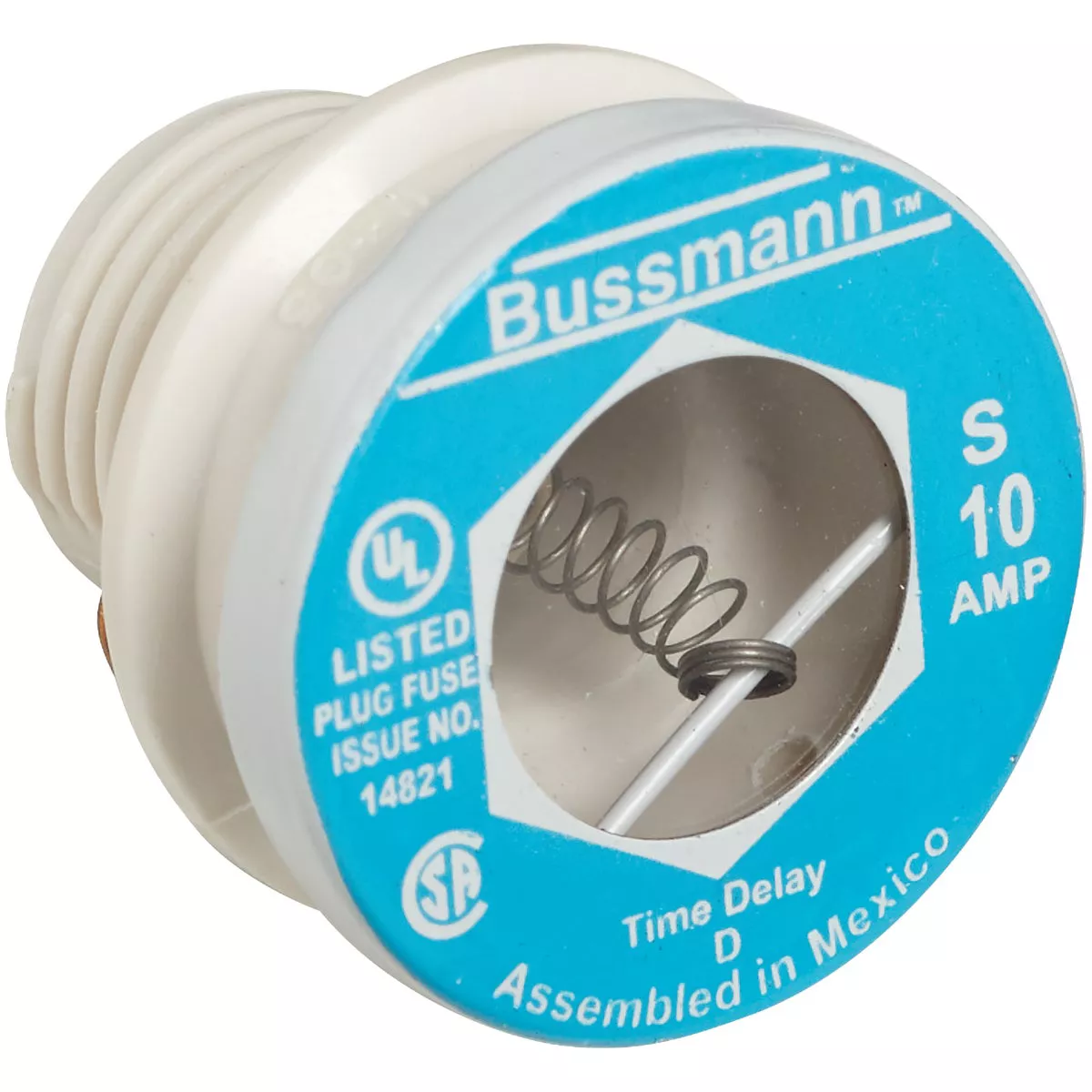

Bussmann 10A BP/S Time-Delay Plug Fuse
Model #BP/S-10 UPC 00051712103220
582652
Tap to view
Product overview
Heavy-duty Fustat S-Type time delay, dual element, plug fuse. Features a rejection base for critical circuit protection such as air conditioners, furnace blowers, swimming pool pumps, deep freezers, or any circuit where motors turn on and off frequently. Industrial strength, will not open under repeated motor start-ups. Porcelain threads (tamper proof base) prevent a larger amp fuse from being used. Extra large clear window makes it easy to see if fuse is blown. 125V AC, 10,000 A.I.C. UL (Underwriter's Laboratories) listed.
- Heavy-duty, time delay
- Rejection base for air conditioners, furnace blowers, swimming pool pumps, deep freezers, or any circuit where motors turn on and off frequently
- Industrial strength, will not open under repeated motor start-ups
- Porcelain threads (tamper proof base) prevent a larger amp fuse from being used
- Extra large clear window makes it easy to see if fuse is blown
- UL Listed
Specifications
| Amperage | 10 |
| Voltage | 125 |
| Capacity | 10kA |
| Certification | UL Listed |
| Base Type | Tamper Proof |
| Fuse Type | BP/S |
| Fuse Function | Time-Delay |
| Brand | Bussmann |
| UPC | 00051712103220 |
| Product type | Plug Fuse |
