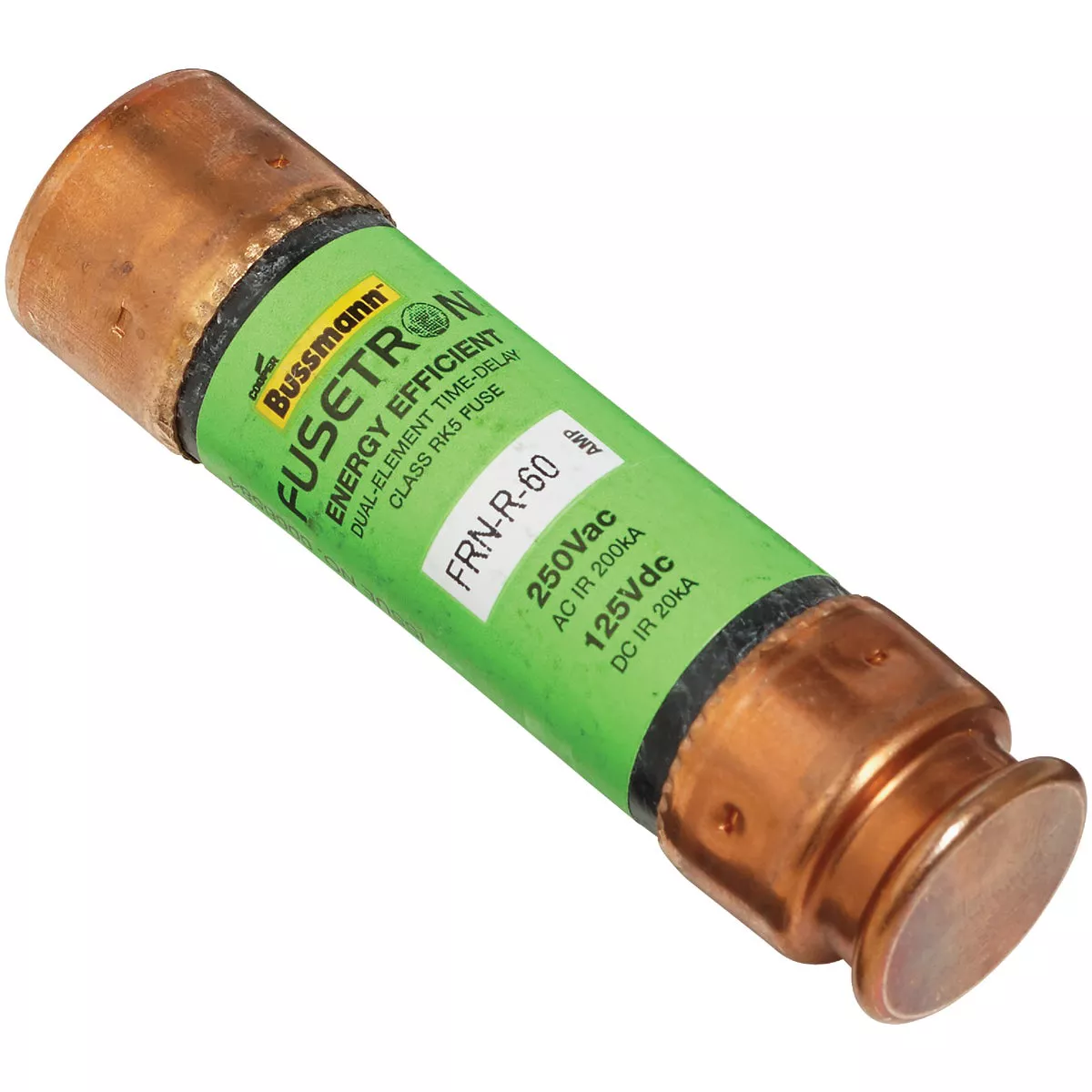

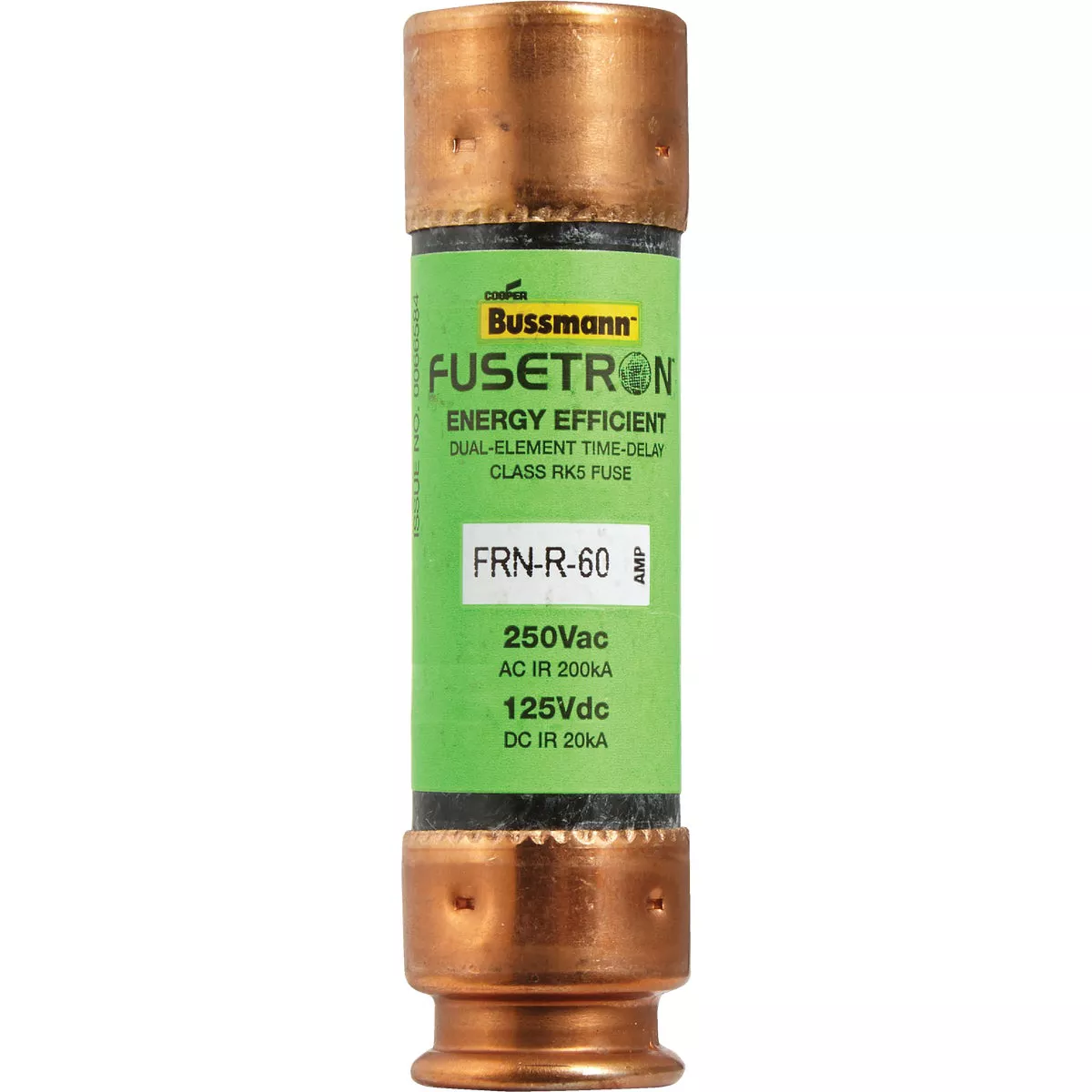

Bussmann 60A FRN-R Cartridge Heavy-Duty Time Delay Cartridge Fuse
Model #FRN-R-60Item #523856UPC 00051712101813
Tap to view
Product overview
Heavy-duty Fusetron, dual element, time delay FRN-R cartridge fuse for motor protection. Helps protect motors from burnout caused by overloads or single phasing. Time delay feature allows the initial startup surge for typical motors to pass, but opens prior to burnout when longer dangerous overloads are present. UL (Underwriter's Laboratories) listed Class R 200,000 AIR (amp interrupting rating). 1/10A to 60A have ferrule ends, 70A to 200A have knife-blade ends. 250V.
- Dual element, time delay
- Helps protect motors from burnout caused by overloads or single phasing
- Time delay allows the initial startup surge for typical motors to pass, but opens prior to burnout when longer dangerous overloads are present
- 60, 250
- UL Listed
Specifications
| Amperage | 60 |
| Voltage | 250 |
| Certification | UL Listed |
| Fuse Type | FRN-R Cartridge |
| Fuse Function | Heavy-Duty Time Delay |
| Class | R |
| Length (In.) | 3 |
| Diameter (In.) | 0.8125 |
| Brand | Bussmann |
| UPC | 00051712101813 |
| Product type | Cartridge Fuse |
