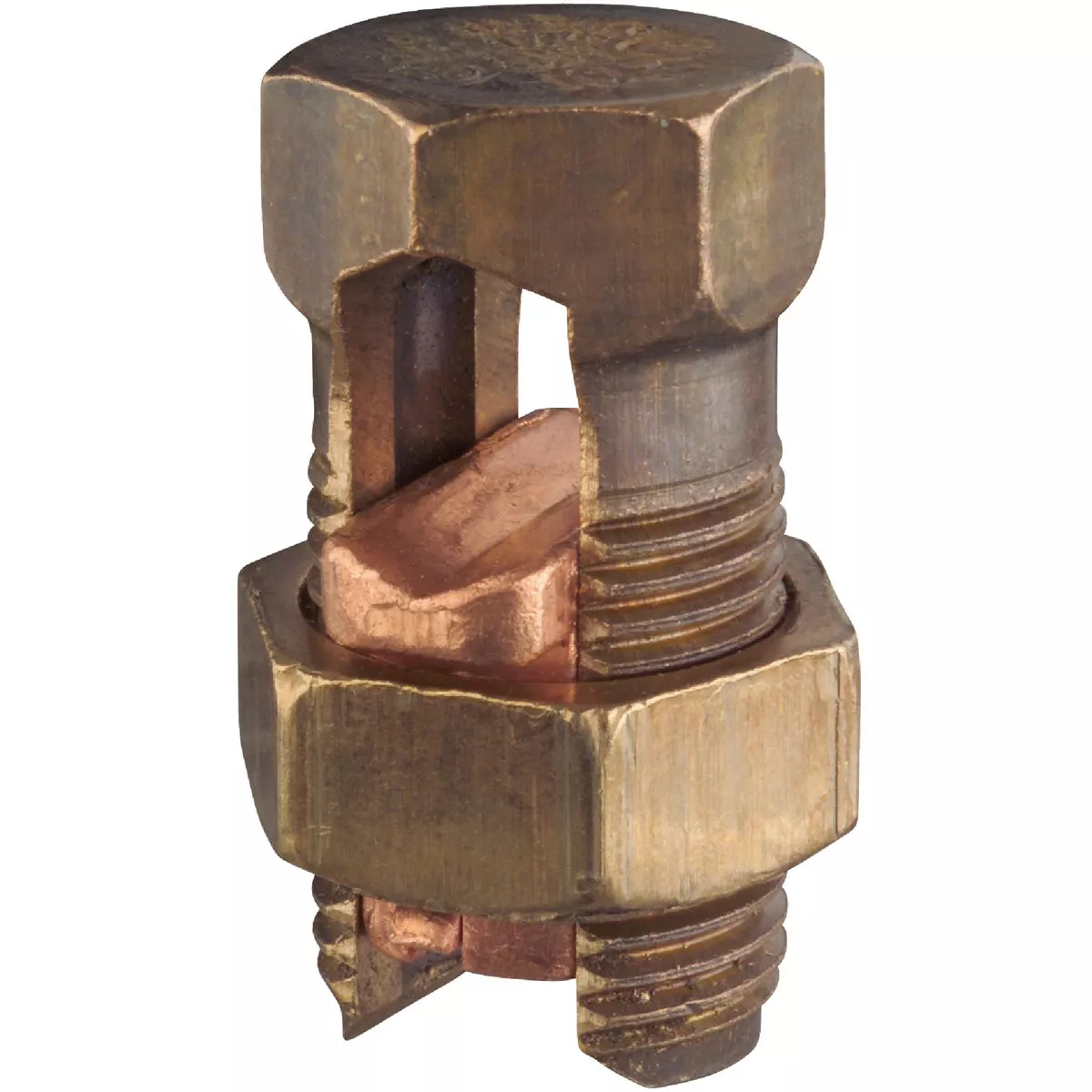

Blackburn 2/0 Str. to 2 Sol. Silicon Bronze Alloy High-Strength Split Bolt Connector
Model #20SBC-B1-5 UPC 00783786371914
Item #524255
Tap to view
Product overview
For copper-to-copper connections. Bolt and nut made of high-strength, corrosion-resistant silicon bronze alloy. For making pigtail, tap or straight splice with larger conductors, solid or stranded. Split bolts slip over continuous wire. The end of the other wire is then placed over the continuous wire inside the unit and the nut is tightened. Connections must be completely insulated. UL (Underwriter's Laboratories) listed.
- High-strength, corrosion-resistant silicon bronze alloy
- For making pigtail, tap or straight splice with larger conductors, solid or stranded
- UL Listed
Specifications
| Material | Silicon Bronze Alloy |
| Certification | UL Listed |
| Gauge | 2/0 Str. to 2 Sol. |
| Range for Equal Main and Tap | 2/0 Str. to 2 Sol. |
| Min Tap with one Max Main | 14 Sol. |
| Brand | Blackburn |
| UPC | 00783786371914 |
| Product type | Split Bolt Connector |
