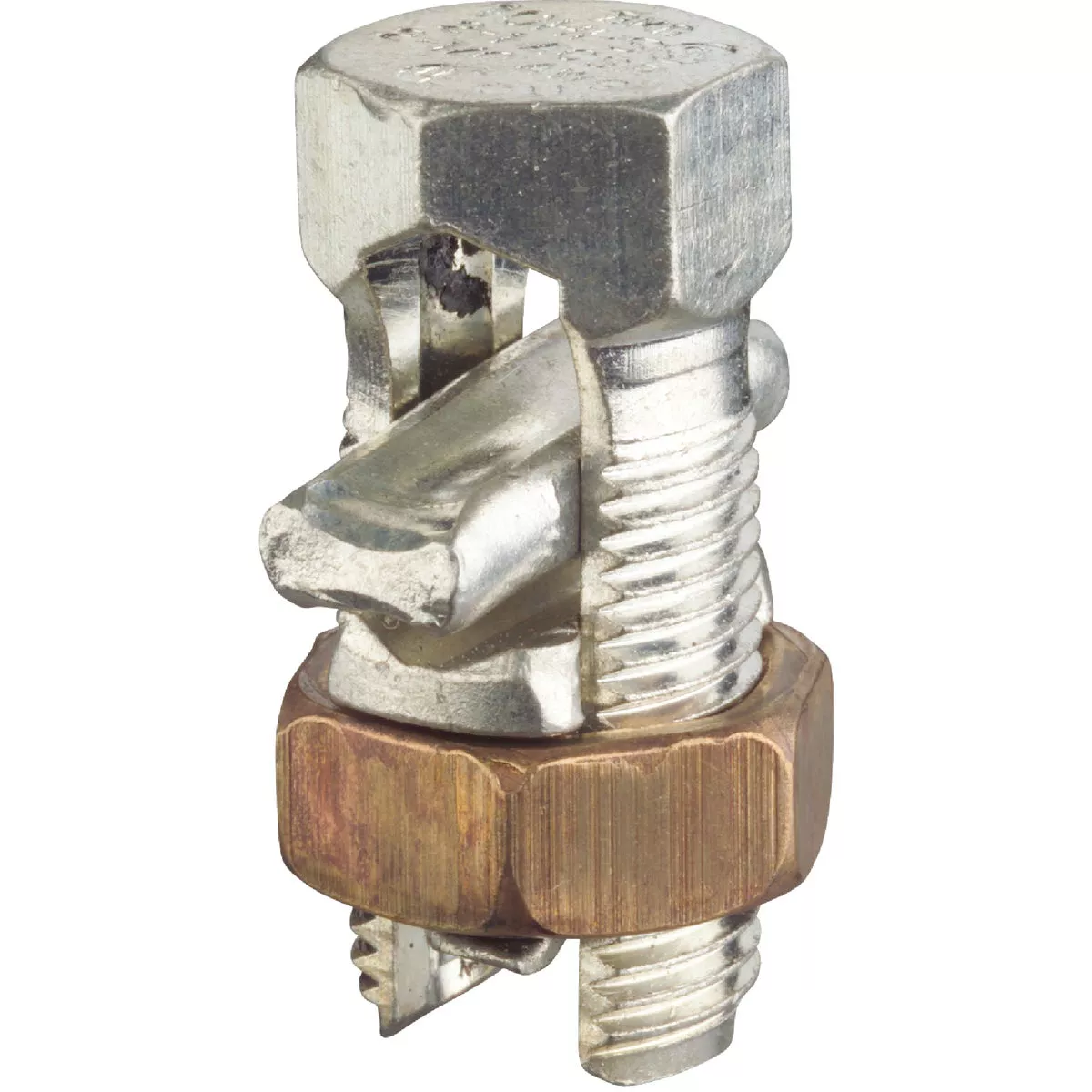

Southwire #6 STR to #1/0 STR Wire Split Bolt Connector
Model #65179340Item #538167UPC 00032886791703
Tap to view
Product overview
These STR Split Bolts are used for a variety of applications, including tapping and terminating conductors in grounding applications. They are dual rated for effective use with copper and aluminum. Conveniently rated for use with 600 volts and 90 degrees Celsius. Additionally, this product is cULus listed for meeting strict industry safety standards.
- Tin plated copper alloy construction
- Dual-rated for use with copper and aluminum conductors
- For use on copper, aluminum, and ACSR conductors
- Used in applications such as splicing, tapping, and terminating conductors in grounding applications
- UL Listed
- Rated 600V/90 Deg C
Specifications
| Material | Tin Plated Copper Alloy |
| Certification | UL Listed |
| Gauge | 1/0 Str. to 6 Sol. |
| Range for Equal Main and Tap | 1/0 Str. to 6 Sol. |
| Min Tap with one Max Main | 6 Sol. |
| Brand | Southwire |
| UPC | 00032886791703 |
| Product type | Split Bolt Connector |
