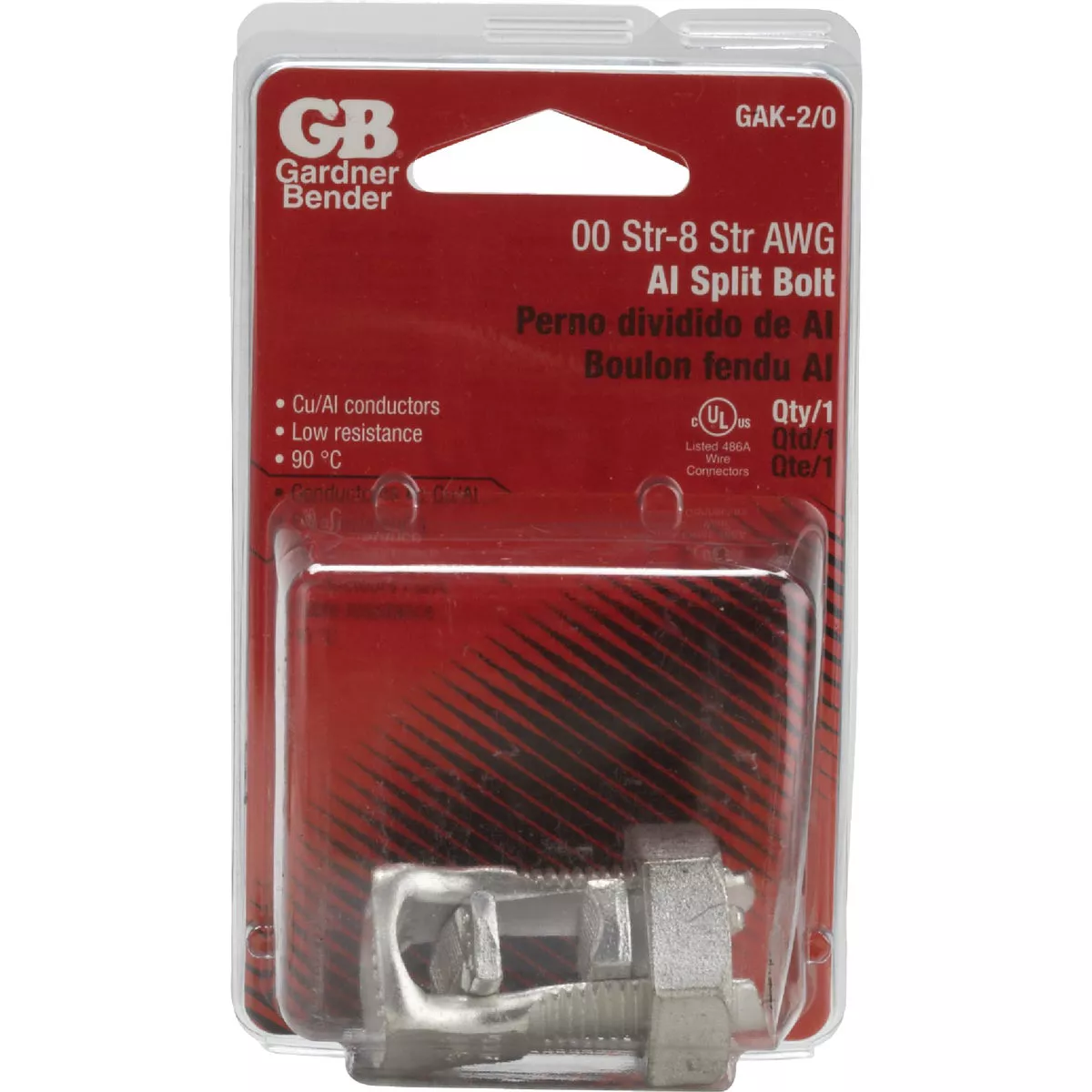

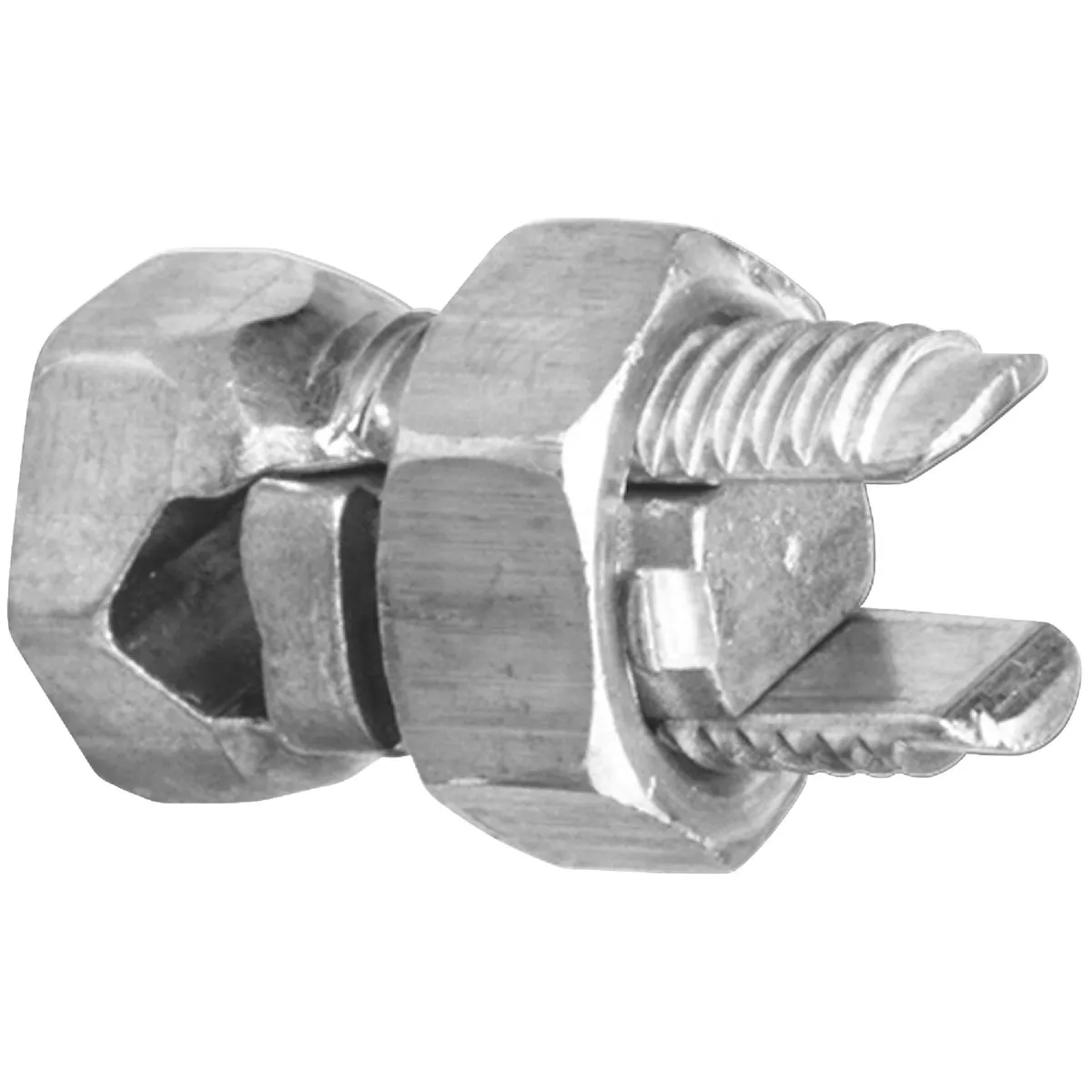

Gardner Bender #10 AWG Stranded, #10 to #00 AWG Solid Aluminum Split Bolt Connector
Model #GAK-2/0N UPC 00032076015947
Item #538744
Tap to view
Product overview
Dual rated aluminum split bolt made from heat-treated aluminum alloy for maximum conductivity and strength for copper and aluminum conductors. Triangular edges bite into the conductor to break through surface oxides which eliminates wire brushing. Electro-tin plating provides low contact resistance. Spacer bar separates dissimilar metals, prevents galvanic corrosion. Hex head provides ease of installation with standard wrenches. UL (Underwriter's Laboratories) listed, CSA (Canadian Standards Association) certified. 1 per clamshell.
- Made from heat-treated aluminum alloy for maximum conductivity and strength for copper and aluminum conductors
- Triangular edges bite into the conductor to break through surface oxides which eliminates wire brushing
- Electro-tin plating provides low contact resistance
- CSA/UL Listed
Specifications
| Material | Aluminum |
| Certification | CSA/UL Listed |
| Gauge | #10 AWG Stranded, #10 to #00 AWG Solid |
| Range for Equal Main and Tap | 2/0 to 8 AWG |
| Min Tap with one Max Main | 2-2 |
| Brand | Gardner Bender |
| UPC | 00032076015947 |
| Product type | Split Bolt Connector |
