Square D

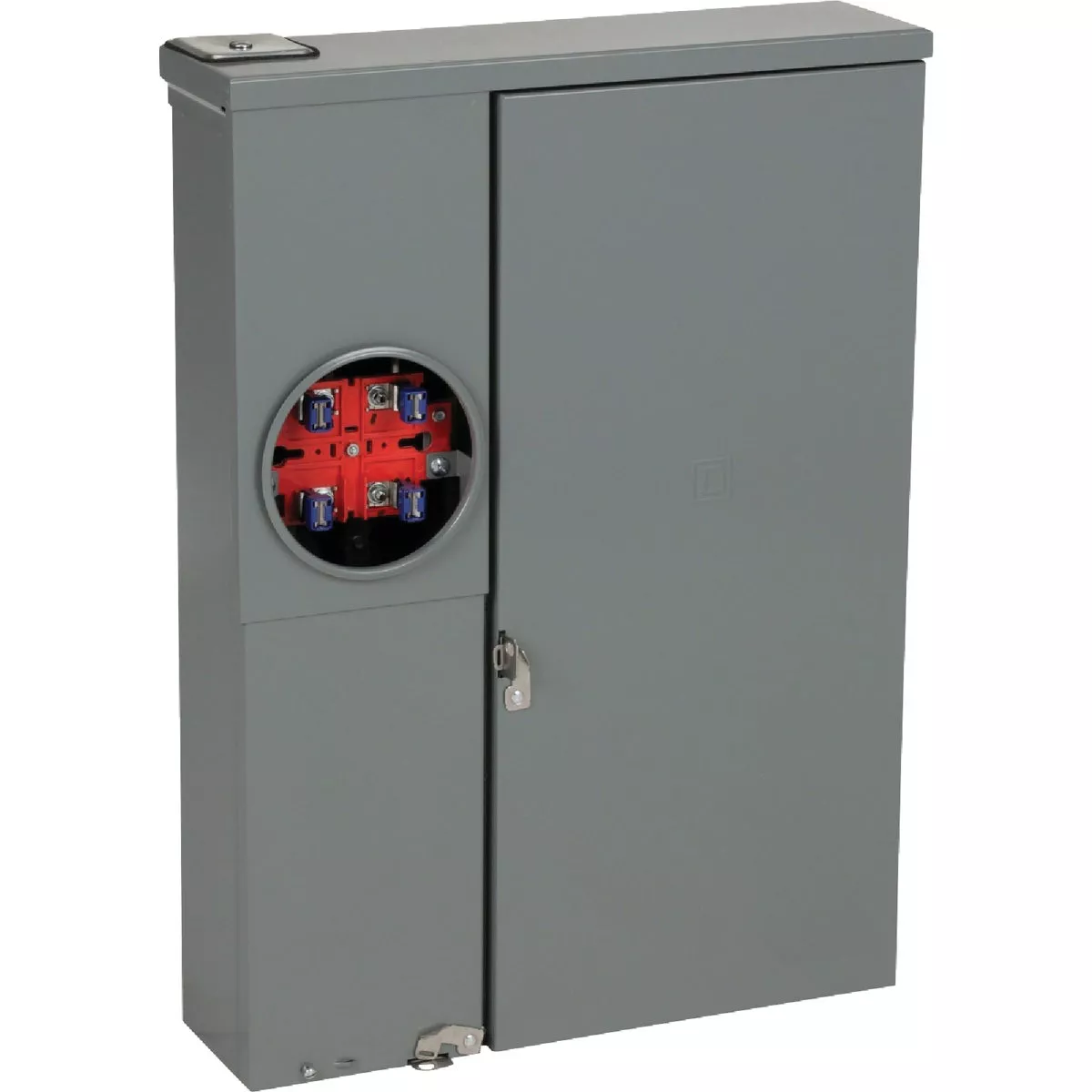

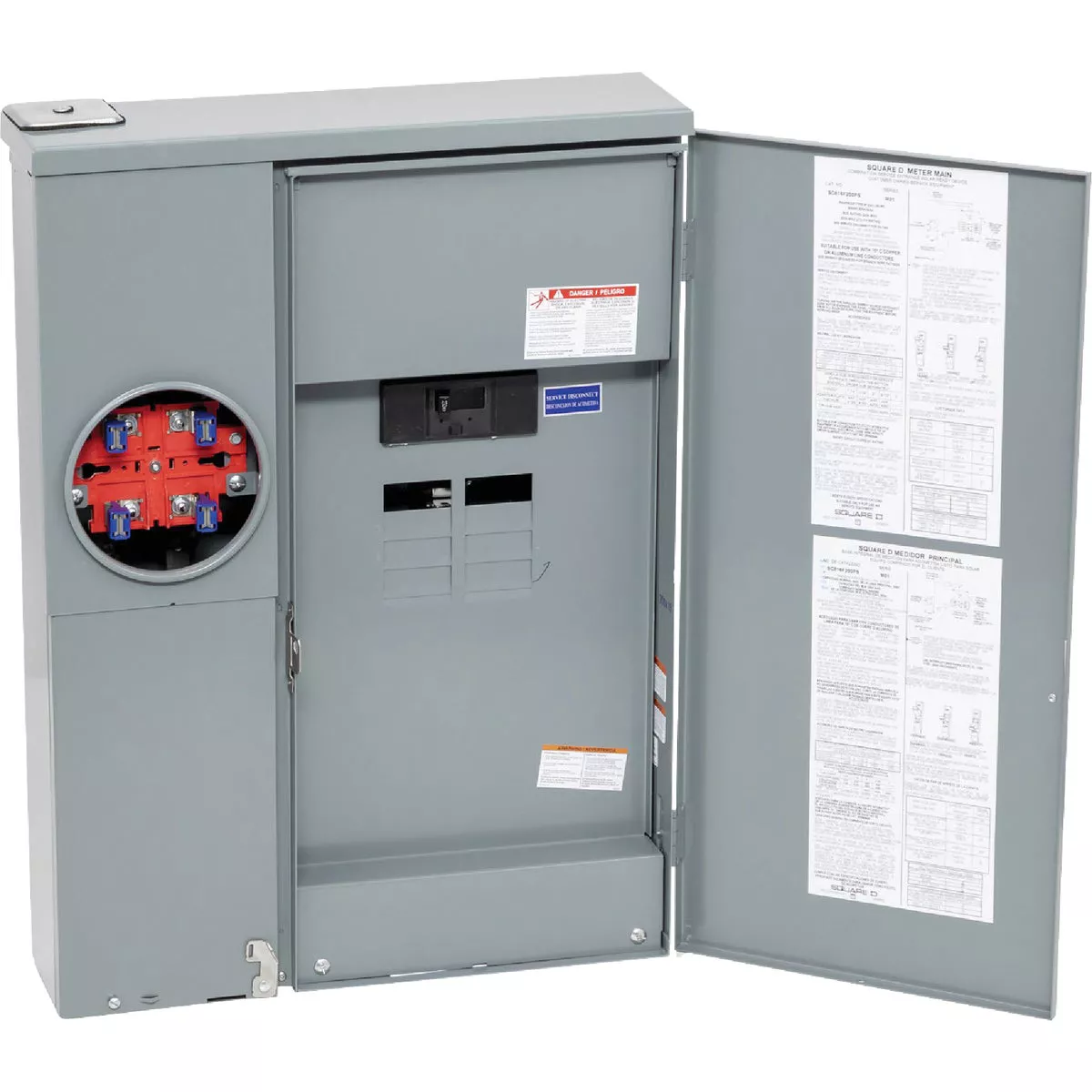

Square D HOM 200A 8-Space 16-Pole Rainproof Plug On Neutral Outdoor Meter Breaker Panel

Model #SC816F200PS Item #556033 UPC 00785901340492
Tap to view
In-store price may vary from online price. Not all products available at all stores .
Same-day pickup
Not available
Ship to store
Not available
Ship to home
Not available
Product overview
Plug on neutral meter and breaker load center combines meter mounting and a circuit breaker distribution section in a rainproof enclosure. In addition to residential installations, the panel can be used for rural service entrance, mobile homes, and for temporary power at construction sites. Overhead or underground feed. Solid neutral bar, cover, and main breaker included. 120/240V, 10,000 AIR, single phase, center mounted hub. 22,000 SCCR (short circuit current rating) and 3-wire design. NEMA Type 3R enclosure for outdoor applications. Convertible to flush mount with the model No. SC200F flush mount kit (not included). UL (Underwriter's Laboratories) listed. Surface mount.
  • Rainproof, NEMA Type 3R enclosure for outdoor applications
  • Ideal for residential installations, rural service entrance, mobile homes, and for temporary power at construction sites
  • Overhead or underground feed
  • Solid neutral bar, cover, and main breaker included
  • Surface mount
  • UL listed

Product manuals and information

  • Buying Guides
  • Related Product Articles
  • California Prop-65 Warning WARNING:

    This product can expose you to chemicals including lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
    WARNING:

    This product can expose you to chemicals including lead which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
  • Request Safety Data Sheet (SDS)
Width 22 In.
Amperage 200
Voltage 120/240
Series HOM
Number Of Spaces 8
Max Number of Poles 16
Enclosure Type Rainproof
Mount Type Surface
Phase Single
Height 7.8 In.
Depth 30.5 In.
Certification UL Listed
Width (In.) 22
Height (In.) 7.8
Depth (In.) 30.5
Brand Square D
UPC 00785901340492
