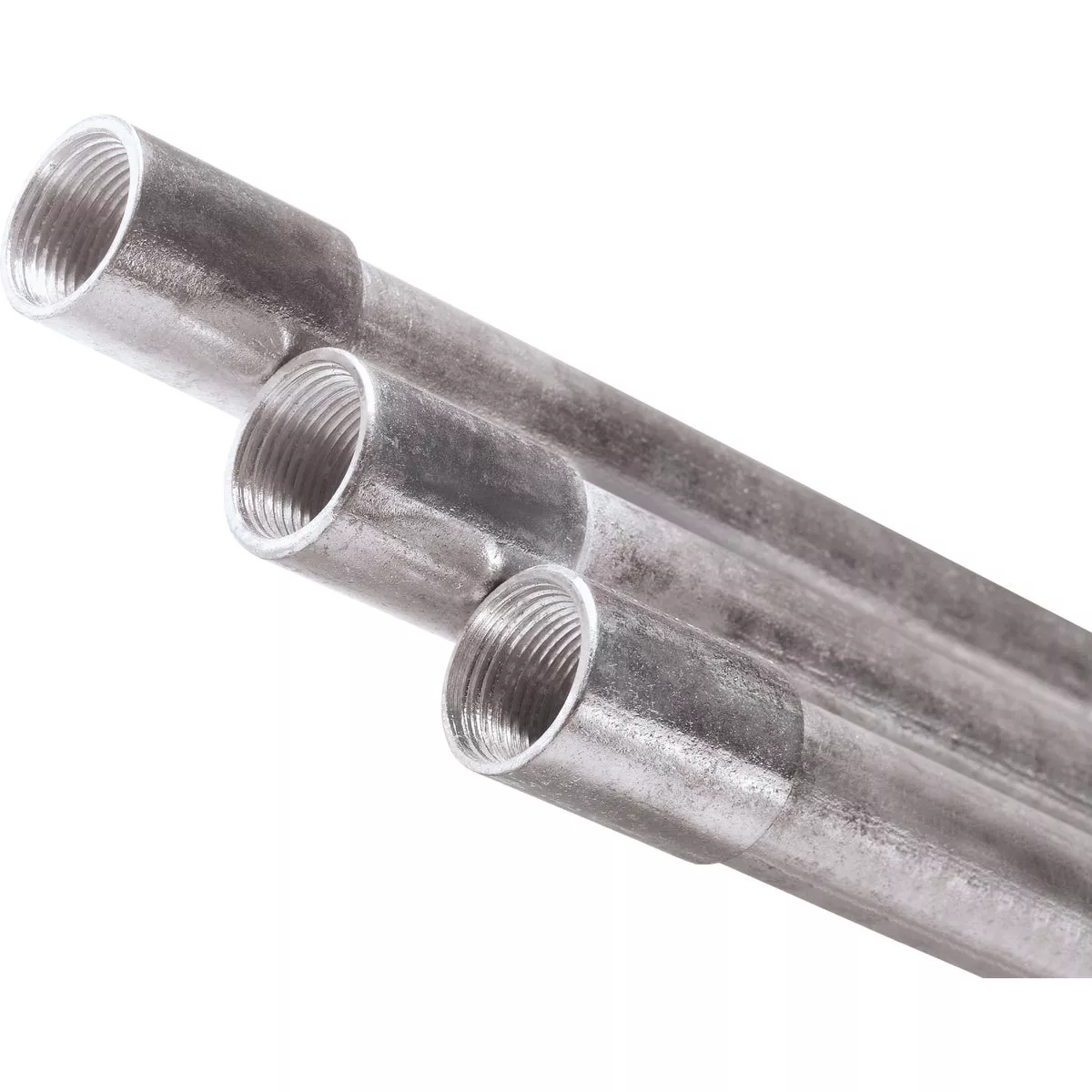

Wheatland 2-1/2 In. x 10 Ft. Intermediate (IMC) Metal Conduit
Model #0549310000 UPC 00786692000077
Item #561180
Tap to view
Product overview
Intermediate metal conduit. A lighter-weight alternative to rigid metal conduit, weighing approximately 33% less than rigid metal conduit (RMC). Like rigid conduit, it shields against EMI, offers reduced exposure to EMF, and provides an excellent electrical path to the ground, which is recognized as an equipment grounding conductor by the National Electrical Code (NEC). Certification: UL-1242,ANSI C80.6,NEC ARTICLE 342, NFPA70: NEC 250.118 (3).
- Light-weight ductile steel for long life and easy bending
- Weighs 1/3 less than rigid conduit
- Hot galvanized layer to increase corrosion resistance and protect against white rust
- Interior coating creates a smooth, continuous raceway for fast wire-pulling
- UL 1242 and UL 5148 listed and manufactured in accordance with ANSI C80.6
Specifications
| Length | 10 Ft. |
| Material | Steel |
| Weight | 44.1 Lb. |
| Certification | ANSI/UL Listed |
| Diameter | 2-1/2 In. |
| Conduit Type | Intermediate Metal Conduit (IMC) |
| Minimum Interior Diameter | 2.557 In. |
| Maximum Interior Diameter | 2.557 In. |
| Minimum Exterior Diameter | 2.857 In. |
| Maximum Exterior Diameter | 2.857 In. |
| Diameter (In.) | 2.5 |
| Weight (Lb.) | 44.1 |
| Length (Ft.) | 10 |
| Threaded End | Yes |
| Brand | Wheatland |
| UPC | 00786692000077 |
| Product type | Metal Conduit |
