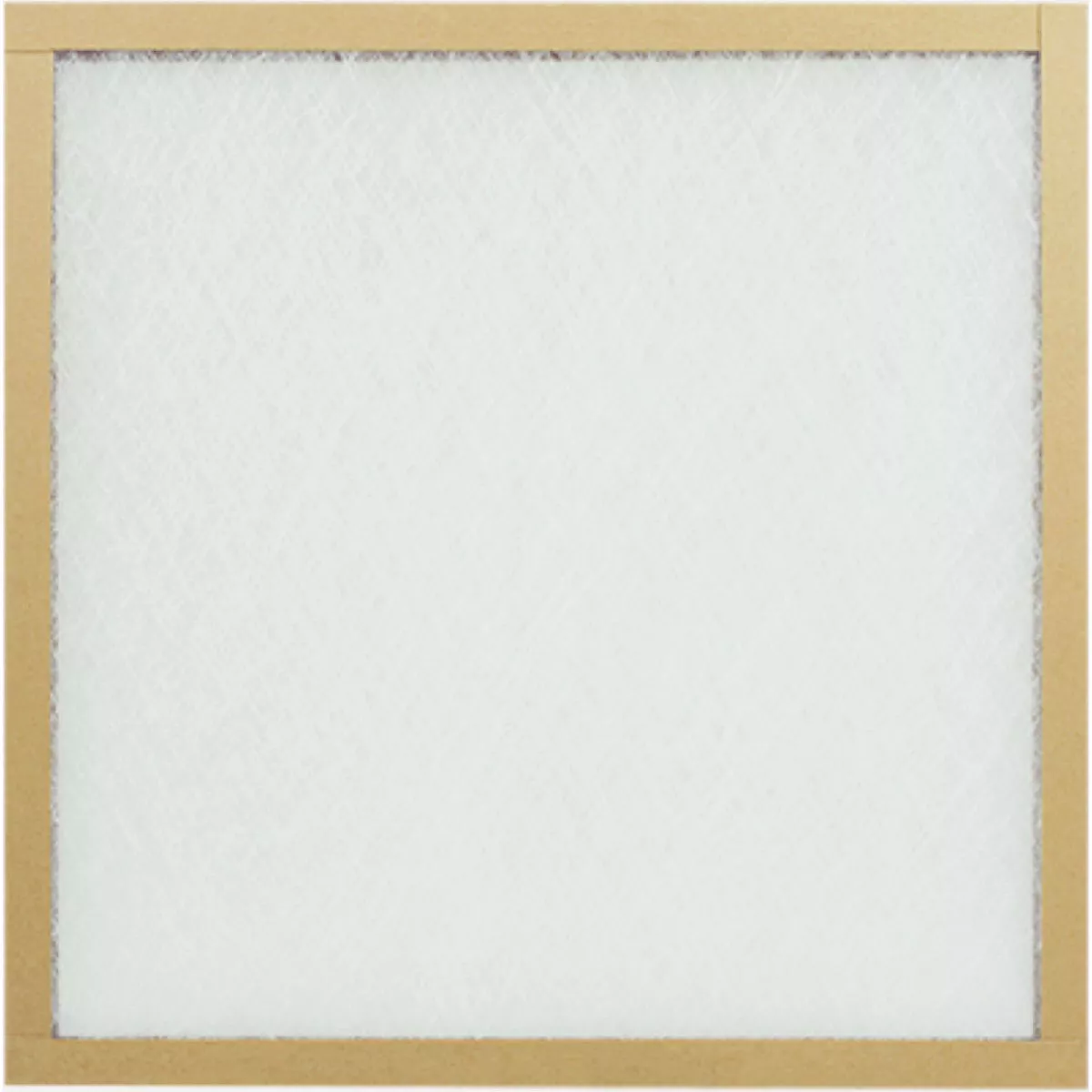

AAF Flanders EZ Flow II 20 In. x 24 In. x 1 In. Disposable Panel Fiberglass Filters
Model #10055.012024 UPC 00031949151294
Item #AH5MKA
Tap to view
Product overview
The EZ Flow II filter is made to function without a retainer by adhering the frame directly to the media, which has a light skin to make it self-retaining. The EZ Flow II frame is made from heavy chipboard in a one-piece design that eliminates corner separation. Sealing is accomplished with a resilient hot-melt adhesive running the full perimeter of the frame on both upstream and downstream sides. The EZ Flow II fiberglass media is continuous filament spun glass. A resinous bonding agent provides rigidity and resistance to media compression. PolyStrand fiber (PSF) continuous polyester media is also available. PSF media provides added strength, resistance to moisture, and improved efficiency.
- Economically and environmentally friendly frame has a one-piece design
- No media retainer
- Available in all standard sizes and custom sizes
- Designed for protection of furnace and central air units in residential and light commercial applications
- UL Classified
Specifications
| Material | Fiberglass |
| Filter Width (In.) | 20 |
| MERV Rating | 4 |
| Longevity | 1 Month |
| Actual Width (In.) | 19.875 |
| Filter Length (In.) | 24 |
| Filter Thickness (In.) | 1 |
| Filter Size | 20x24x1 |
| Actual Length (In.) | 23.875 |
| Actual Thickness (In.) | 0.75 |
| Brand | AAF Flanders |
| UPC | 00031949151294 |
| Product type | Furnace Filter |
